90 7 Operations Listed By Purposes
7
7
A
A
n
n
a
a
l
l
y
y
z
z
e
e
M
M
e
e
a
a
s
s
u
u
r
r
e
e
d
d
D
D
a
a
t
t
a
a
What to do
• Use X-Chart to view daily trends and simple statistic of the test data

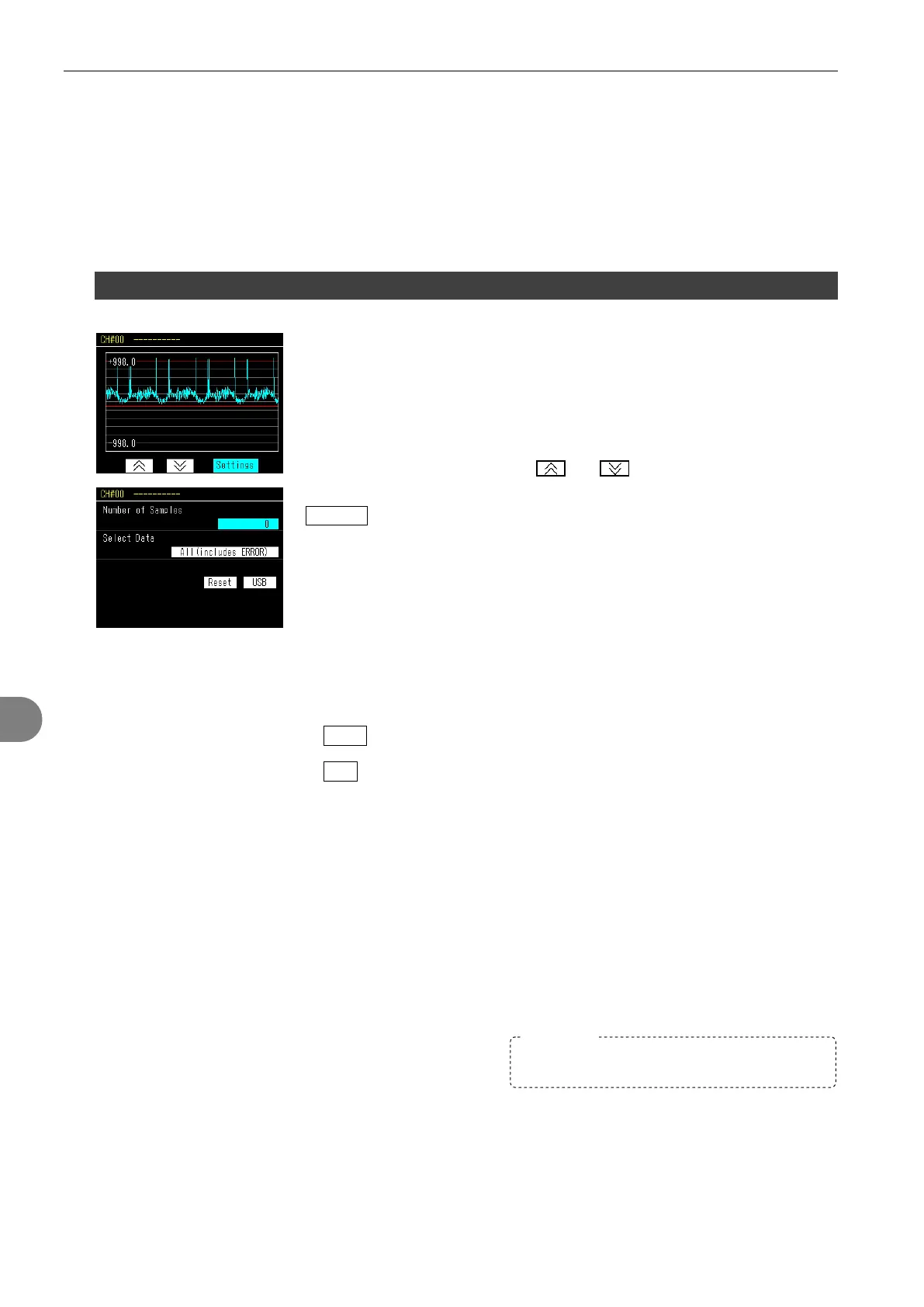

7.1 Use X-Chart
LS-R700 stores up to 1000 test logs in all 32 channels.
All the test logs in the channel of your choice are displayed in figures (oldest
data at the top) or a chart (oldest data on the left).
This is useful for viewing daily trends and simple statistics of the test results
without using a computer.
The scale of Y-axis changes with and .
Program the extract condition of the test result logs used in the
X-chart.
Programmed number of the data is extracted for statistics.
Setting it to 0 uses all the data in the current channel
Select Data
Select from All data (including errors), Pass only, Pass /UL/LL or
Pass/UL2/UL/LL/LL2.
Reset: Resets all the test data in all the channels.
USB: Saves the data set to Number of Samples and Select Data in a USB
memory in the CSV format.
Saves in LSR700\MANUAL SAVE\LEAK DATA\CH#
20140519171415.csv
The file name consists of the date, hours, minutes and seconds when the
data are saved in the USB memory.
Compensation Value is not included in the logs to
be copied to USB memory.
FILE LSR700\MANUAL SAVE\LEAK DATA\CH#00\20140519171415.csv
CH# DET Le Test Pr Judgm Mode User M Leak U T Press Date&T
0 3.8 71 OK Leak T --- Pa kPa 201405
