Cosmo LS-R700 User Manual

54 5 Screen List
5
Leak Limit
BAL2 UL
Upper leak limit for BAL2 stage
BAL2 LL
Lower leak limit for BAL2 stage
DET UL2
Medium leak limit for WORK side during DET stage which should be
greater than DET UL.
DET UL
Small leak limit for WORK side during DET stage
DET LL
Small leak limit for MASTER side during DET stage
DET LL2
Medium leak limit for MASTER side during DET stage which should be
smaller than DET LL.
NR Iterations
Settable Range: 1 to 20 Setting it to 1 allows two-level limit setting.
NR is enabled when the iterations are set to 2 or larger.
CHG Options
Precharge Timer (PCHG)
0.0 to 999.9 [s] For testing a large volume part with a low test pressure.
Pre-exhaust Timer (PEXH)
0.0 to 999.9 [s] Varies depending on the test specifications.
Precharge Settings
Available only for E/P regulator models.
Precharge Upper Limit
Precharge Lower Limit
Bypass Valve
Disable/Enable Bypass Circuit Unit is sold separately.
Precharge Iterations
1 to 20
Self Check
Overall Self Check
Disable/Enable
Blow ΔP Limit
Check the pneumatic circuit of LS-R700
Idle ΔP Check Timer
Check the fill valve during idle state.
Idle ΔP Check Limit

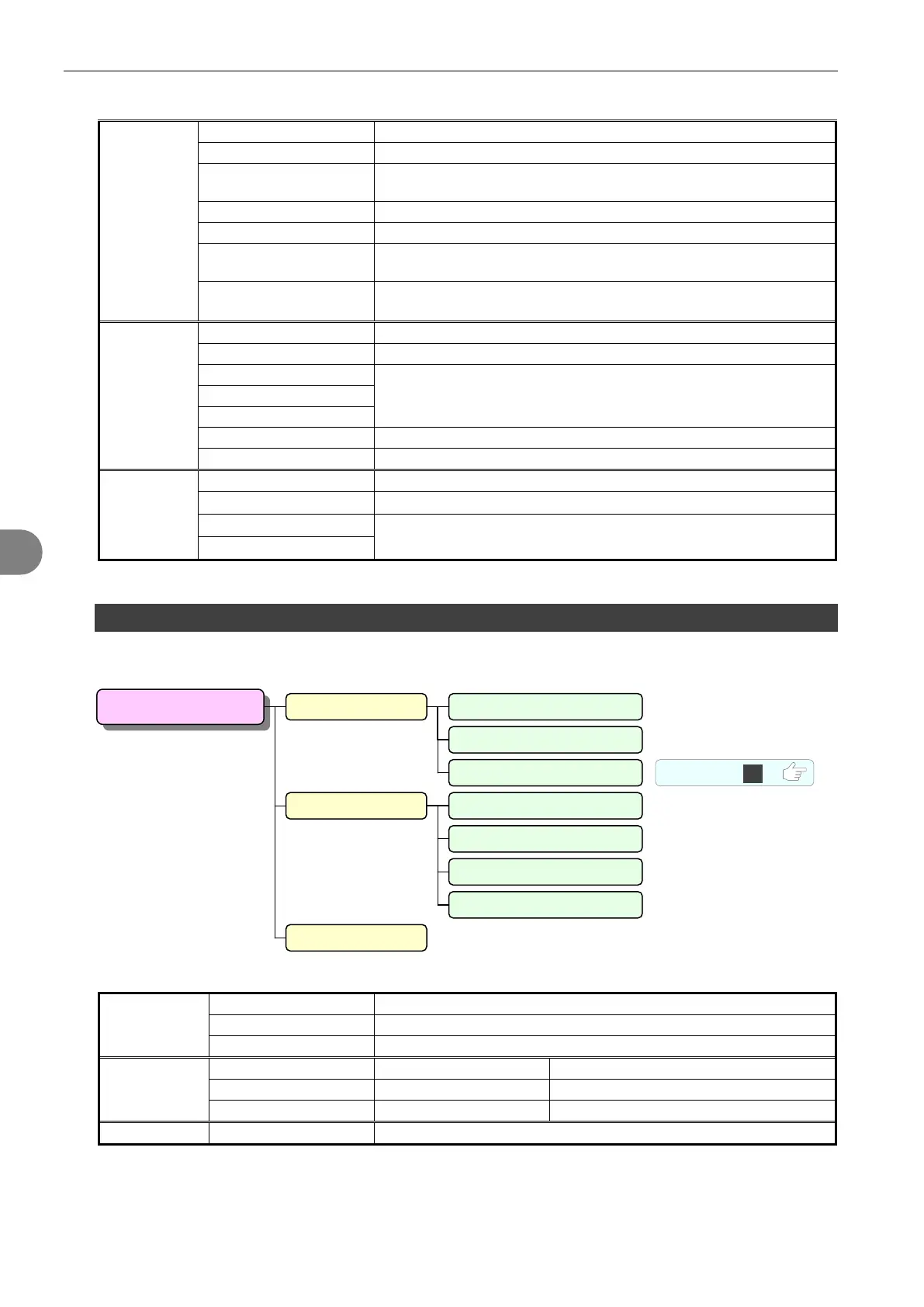

3.3 Common Settings
Common settings for all the channels
Basic Settings
Stop Signal
Normally Open, Normally Closed
Judgment Signal Type
Pulse, Hold
EXH. Interference Prev
Disable/Enable
Special Settings
Stop Valve Monitoring Enable, Disable
Enable if the option
W
is selected.
Start After Reject
Start only, Stop then Start
Normally “Start only”
PSW Monitoring Enable, Disable Available only for H20 and L02 models
Manufacturer
Settings cannot be changed.
Refer to
7
7 3.6.
Common Settings
Manufacturer
Basic Settings
Special Settings
Stop Signal
Judgment Signal Type
EXH. Interference Prev
Stop Valve Monitoring
Start After Reject
PSW Monitoring
DET Judgment Timing
