Cosmo LS-R700 - Ve) Menu; K(Ve) Settings

58 5 Screen List
5
5
5
K
K
(
(
V
V
e
e
)
)
M
M
e
e
n
n
u
u
LS-R700 computes leakage based on the measurement of the pressure difference between the non-leaking
master and the tested part.
K(Ve) is "leak coefficient" which is used for converting measured differential pressure into a flow rate.
This menu is to program the settings and carrying out the Automatic K(Ve) Setup.

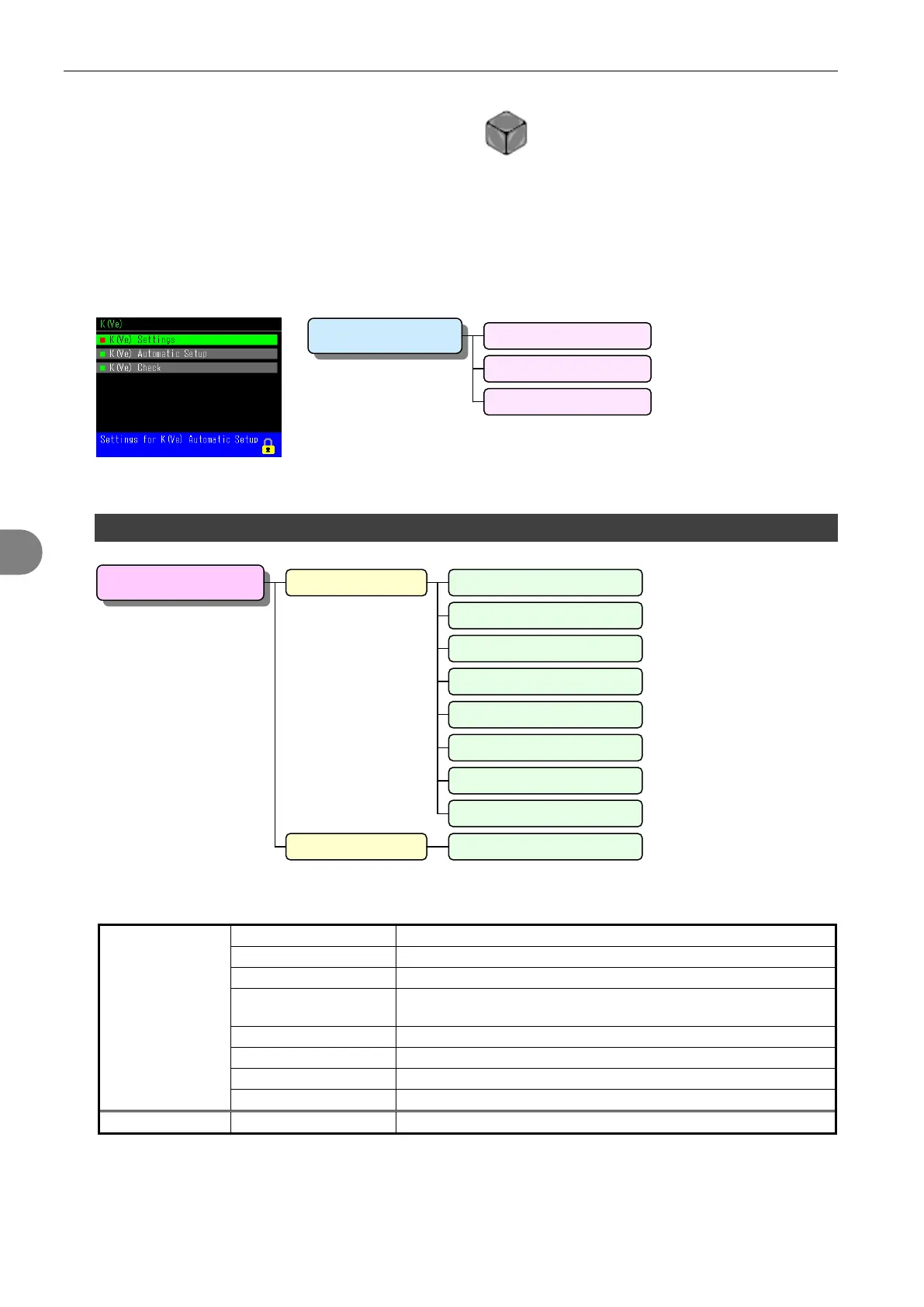

5.1 K(Ve) Settings
Basic Settings
Calibrator
Leak Master, LC4, LC2, LC1, QLC
K(Ve) Setup Behavior 3-phase 1-phase, Mastering
K(Ve) Unit
mL, L, (in
3
, ft
3
) *1
K(Ve) Value K(Ve) is entered automatically through K(Ve) Automatic Setup.
K(Ve) can be manually entered as well
LM Flow Rate [mL/min]
Enter Leak Master flow rate.
LC Displacement (ΔV)
Enter the LC displacement used for K(Ve) Automatic Setup.
LC Reading
Enter LC reading (turns) used for K(Ve) Automatic Setup.
K(Ve) Check Limit
Set K(Ve) Check Limit in percentage (%).
Advanced Settings
Barometric Pressure
Fixed to 101325 [Pa]
*1 The units in ( ) are not available for SI unit restriction models.
K(Ve)
K(Ve) Settings
K(Ve) Automatic Setup
K(Ve) check
K(Ve) Settings
Advanced Settings
Basic Settings Calibrator
K(Ve) Setup Behavior
K(Ve) Unit
K(Ve) Value
LM Flow Rate [mL/min]
LC Displacement
LC Reading
K(Ve) Check Limit
Barometric Pressure
