This interface port is an asynchronous half duplex serial interface based on EIA-232. This interface
provides communication with external devices such as computers (NULL-MODEM mode direct connections).
Through this port, the LS-R700 transmits leak test data after every test execution.
The Leak Tester does not accept any commands from the host; it only transmits leak test data.
For setting the communication parameters, go to:
System > System Settings > RS-232C
2.1 RS-232C Interface
Data transmission Half duplex
Baud rate 9600, 19200, 38400
Start bit 1 bit
Data length 8 bit
Parity Non-parity
Stop bit 1 bit
Connector pin assignments (DB-9P)
Pin # Name Function
2 RxD Received Data
3 TxD Transmitted Data
5 SG Signal Ground
2.2 Interface Cable Wiring Example

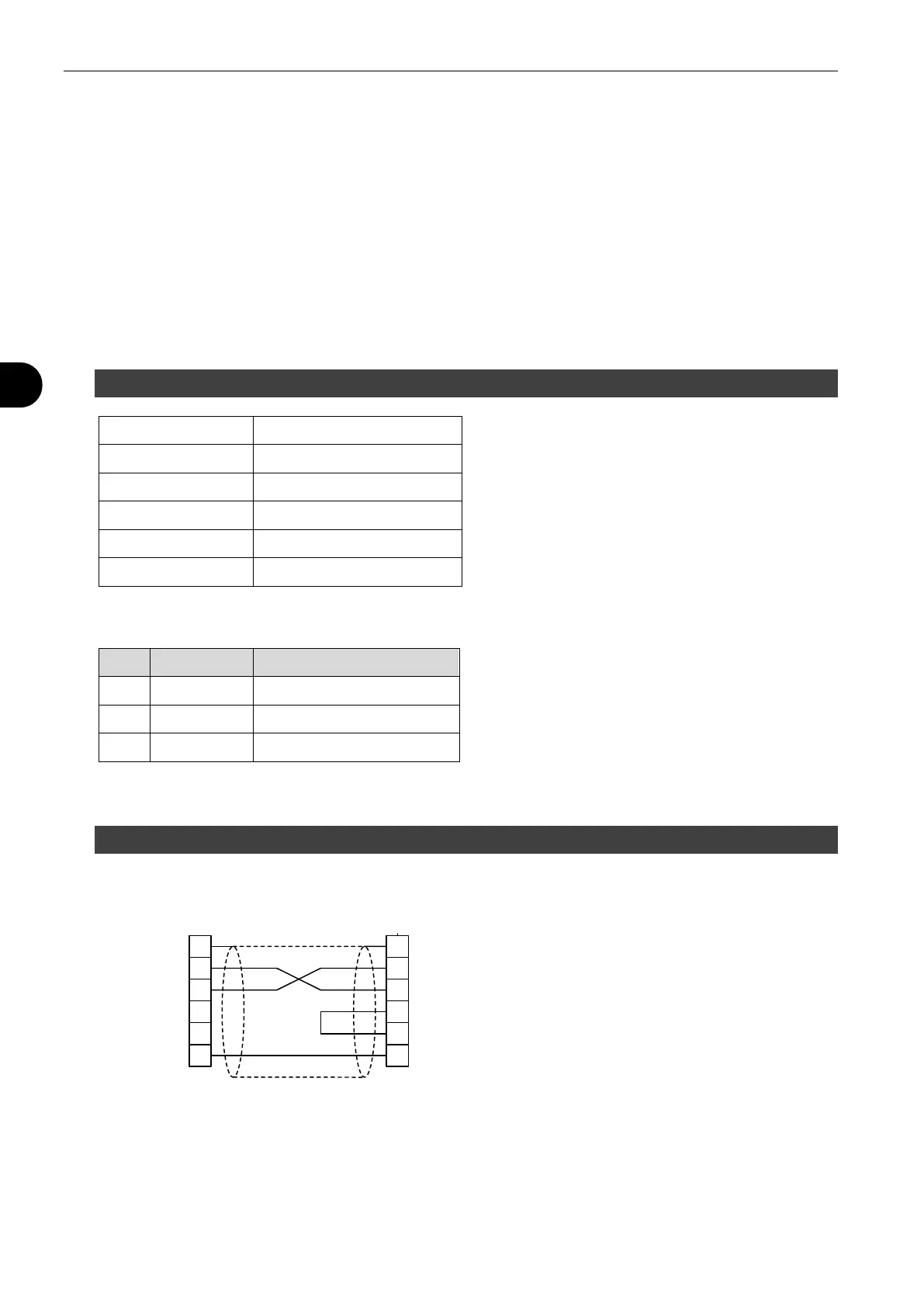

Interface cable wiring diagram (COM1)
LS-R700
9 pin
External Device
9 pin
2
3
5
FG
SD(TxD)
RD(RxD)
SG
2
3
7
8
5
