Cosmo LS-R700 User Manual

140 11 Reference
11
9
9
C
C
o
o
m
m
m
m
o
o
n
n
P
P
e
e
r
r
i
i
p
p
h
h
e
e
r
r
a
a
l
l
s
s

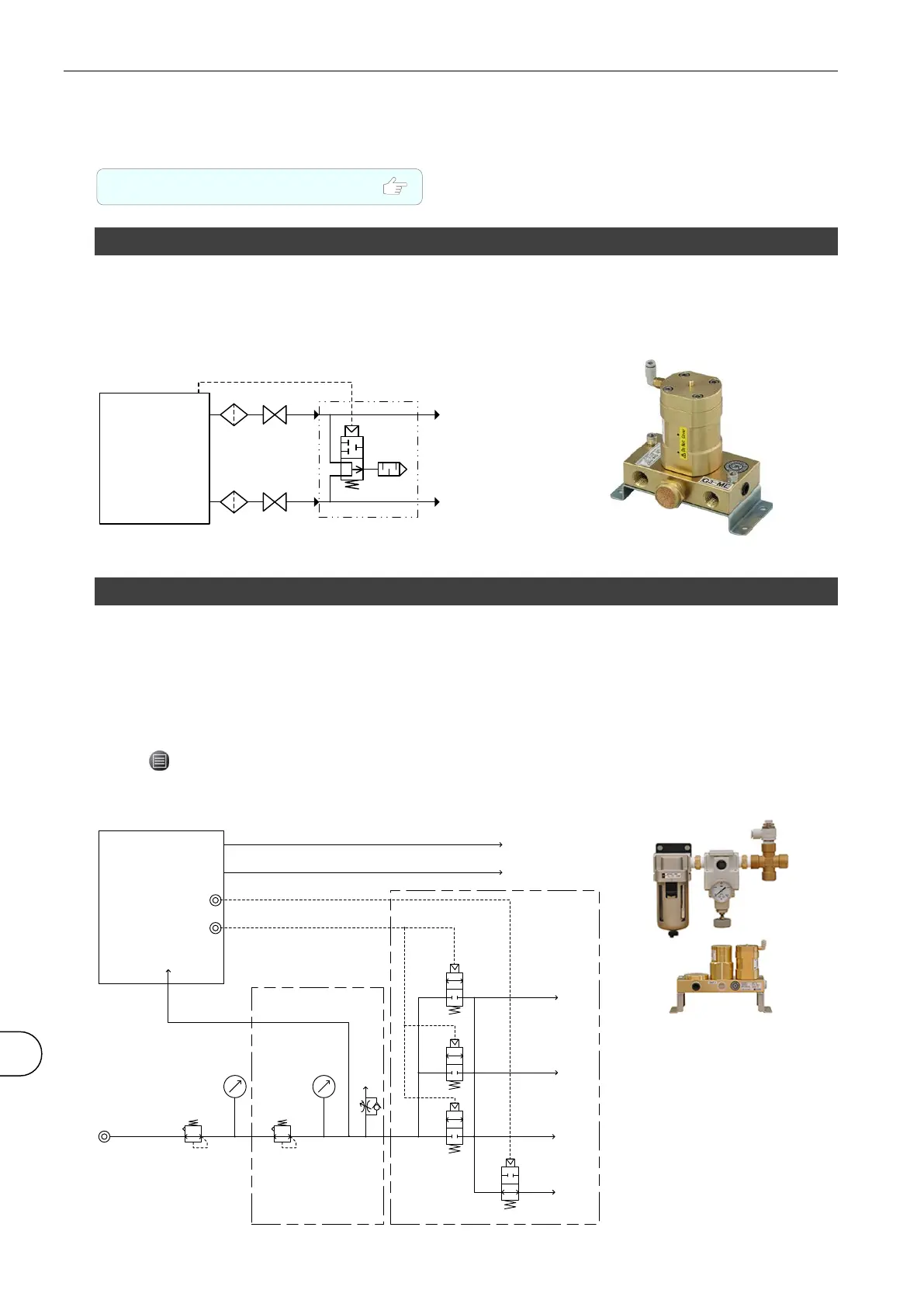

9.1 External Exhaust Valve (Separately Sold)
Water, oil, or other foreign matters inside the tested parts may get into the air leak tester when it exhausts air,
which may damage the tester.
Installing an External Exhaust Valve between air leak tester and tested part prevent the contamination.
9.2 Bypass Circuit Unit
Test time can be reduced by using a Bypass Circuit Unit when testing tested parts with a large internal
volume with low test pressure because it fills the parts with air in a short period of time.
Models with the option B are equipped with a pilot pressure port for the Bypass Circuit Unit.
Air leak tester controls the Bypass Circuit Unit.
Enable the Bypass solenoid valve to use it.
Go to: > Main Menu > Settings > Advanced Settings > CHG Options > Bypass Valve
Pneumatic Circuit Example (BU-100A-3L)
LS
-R700
External Exhaust Valve
G3-ME
MASTER
WORK
Leak Tester
Pilot Pressure Source
Bypass Exhaust Valve
Bypass Fill Valve
To Test Pressure Source
MASTER port
WORK port
Master Chamber
WORK
Pressure
Source
Regulator 2*
Regulator 1
Relief
valve
Pressure
Gauge 2*
Pressure
Gauge 1
Exhaust
WORK
WORK
WORK
Exhaust Valve
Bypass
Fill Valve 1
Bypass
Fill Valve 2
Bypass
Fill Valve 3
Regulated part
Wide Valve
Note: Regulator 2 and Pressure
Gauge 2 will not come with the
Bypass Unit.
G3-ME
Refer to “
2
2 I
NSTALLATION
” for the details.
