Cosmo LS-R700 User Manual

18 2 Installation
2

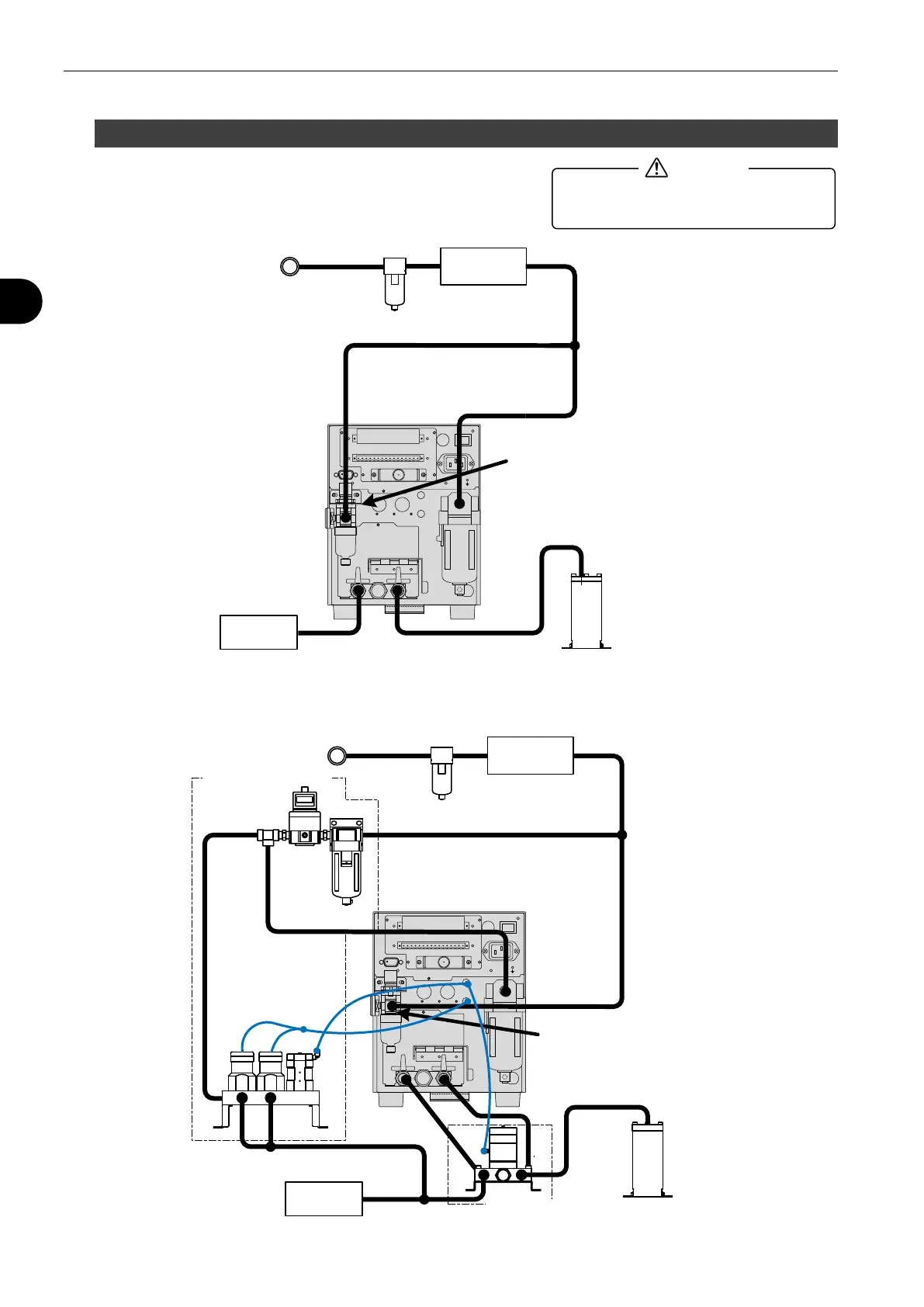

3.3 Pneumatic Hookups
Standard Connection Example
Optional Equipment Connection
WORK
COSMO INSTURUMENTS CO., LTD
MADE IN JAPAN
MASTEREXHAUST
G3
T2.5A–250V
100-240VAC~50/60Hz
100VA MAX.1ph
POWER
COM1
BYPASS
FILL
Tested Part
Test Pressure
Air Dryer
Drain
Pilot pressure
Regulated between 400 and 700kPa.
Master Chamber
(Sold Separately)
Be sure to shut off the pressure source
before connection/disconnection.
CAUTION
WORK
COSMO INSTURUMENTS CO., LTD
MADE IN JAPAN
MASTEREXHAUST
G3
T2.5A–250V
100-240VAC~50/60Hz
100VA MAX.1ph
POWER
COM1
BYPASS
FILL
Air Dryer
Test Pressure
Drain
Bypass Circuit Unit
Pilot pressure
Regulated between 400 and 700kPa.
Tested Part
External Exhaust Vavle
G3-ME
Master Chamber
(Sold Separately)
