5 Screen List 49

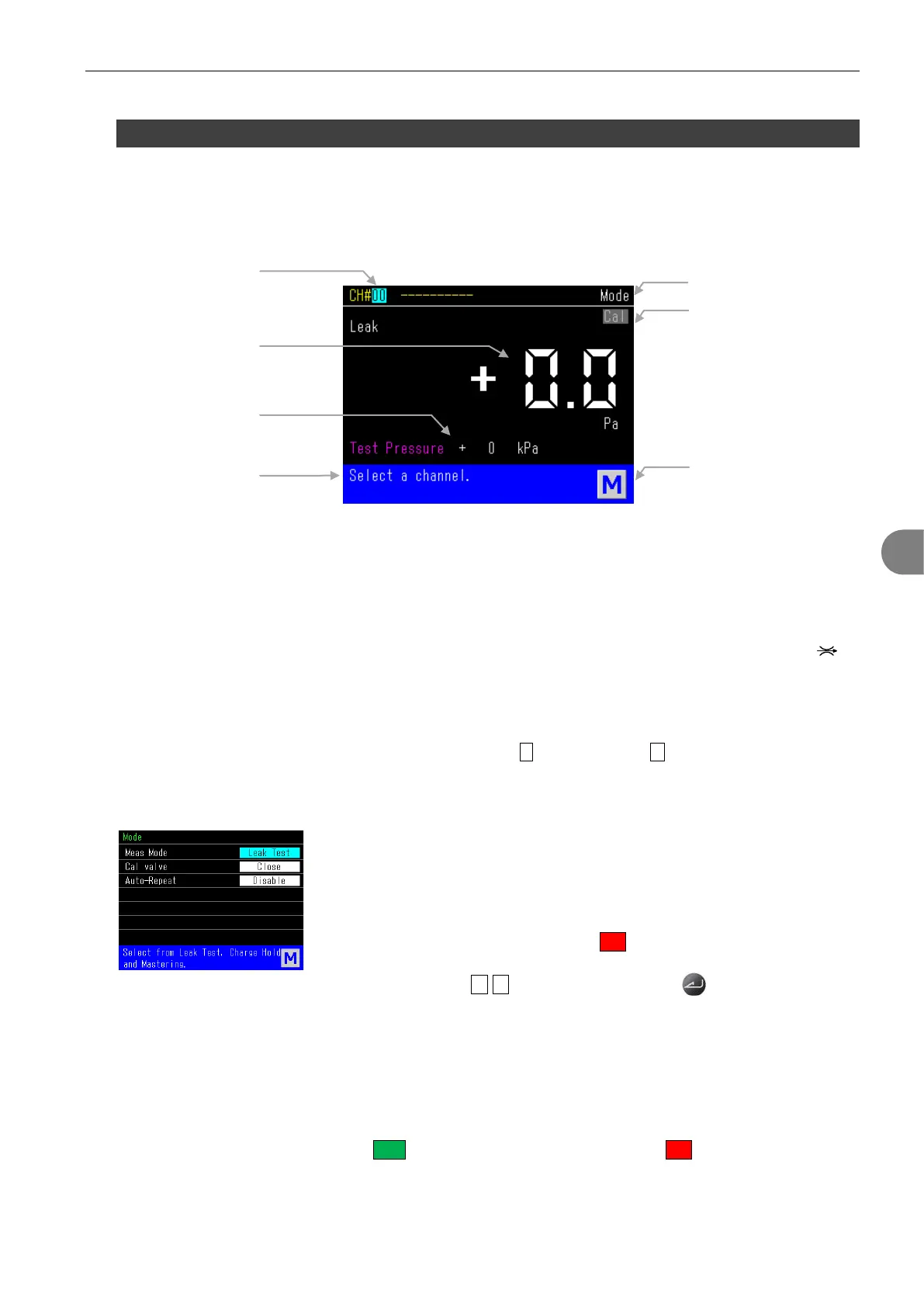

2.2 Measurement Screen Description: Standard (Manual)
Usually manual mode measurement is performed for initial test parameter settings.
Unlock Settings and toggle the operation mode to Manual.
Standard screen is a simple display with the test pressure, leak and Pass/Fail judgment.
A CH#: Channel number and title
Up to 20 letters are allowed for the channel
title.
B Leak: Leak in a selected unit
C Test Pressure: Test pressure in a selected
unit
D Guidance Bar:
Stage, Stage timer, Test result and Error
number are displayed.
E Mode:
Menu to change the measurement mode,
Open/Close the Calibration valve and set
Auto-Repeat of measurement.
F CAL:
Shown in green when the Calibration port ( )
on the front panel is open, and in gray when
closed.
G Remote/Manual:
Shows the current operation mode.
R for Remote and M for Manual
Mode Description
Meas (Measurement) Mode
Measurement is selectable from the following three:
Leak Test: Air Leak Test
Mastering: Mastering value sampling
Charge Hold: Keeps pressurizing until ■ is pressed.
In Manual Mode, the electropneumatic pressure of E/P Regulator can be
adjusted. Adjust with ▲ ▼ keys and complete with .
Cal (Calibration) Valve
Open/Close the Calibration valve on the front panel
Used to check the accuracy of NG judgment (only for J model)
Auto-Repeat
A selected measurement: Leak Test or Mastering are repeated
Press ► to start the measurement and press ■ to stop.
