COTRUST CTH200 Series User Manual

Communication Protocol and Networking Mode
122
I
N
I
N
O
U
T
O
U
T
...
...
SM277PN
SM277PN
Profinet EtherCAT Communication
Program PC with
TIA Portal/STEP7/SMART
Profinet
communication
Expansion Modules(up to 8)
Expansion Modules(up to 8)
PN maste r PN maste r
Profinet
communication

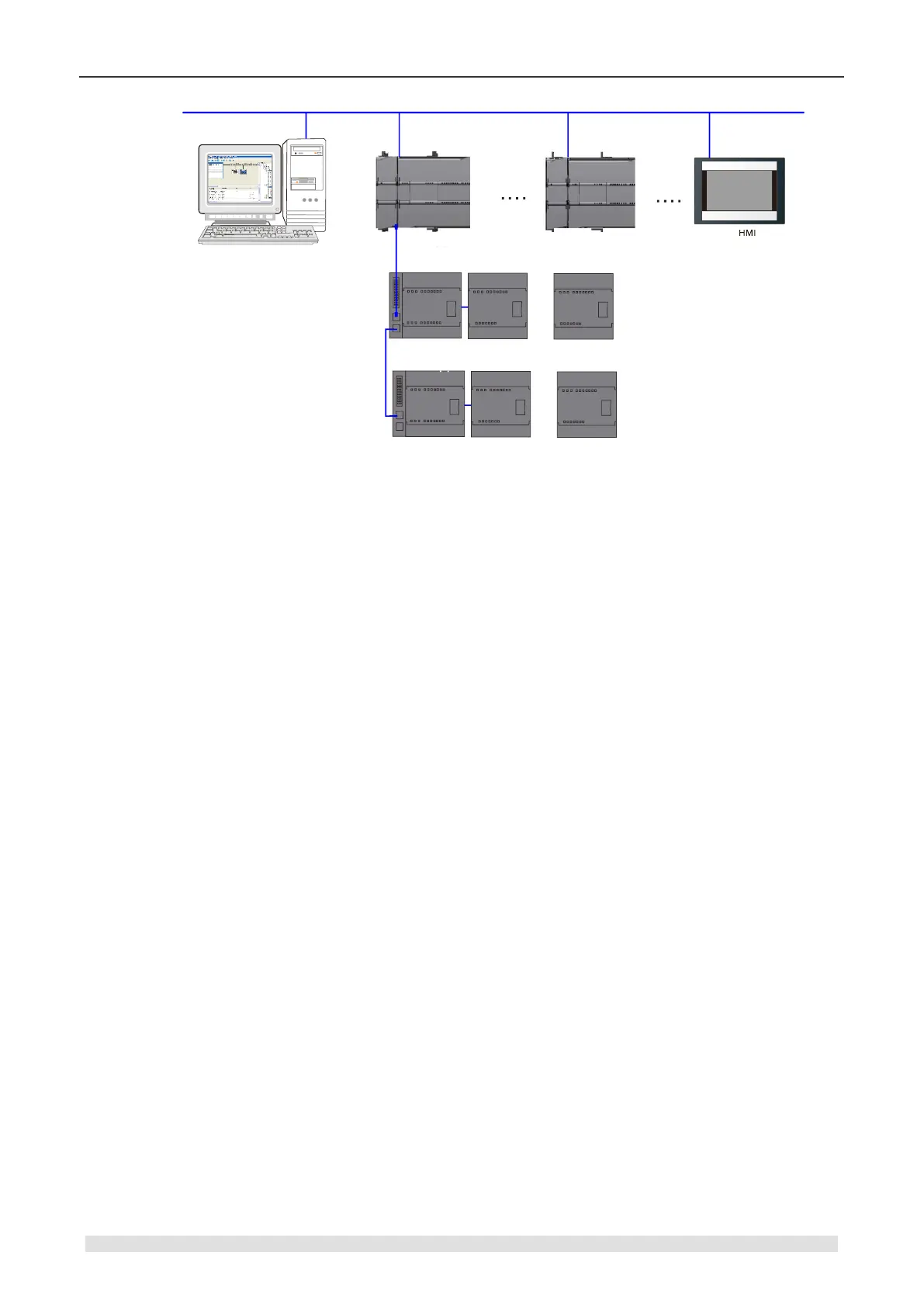

Figure 5-10 PROFINET network architecture
Refer to CTH200 series profinet slave module user manual for More details and example of
PROFINET communication module.
Download address: http://www.co-trust.com/Download/index.html
