COTRUST CTH200 Series User Manual

Technical Specifications
112
Max Digital access
No. of Bytes
start address in memory
Input
64
IB16
Output
64
QB16
Max Analog access
No. of channels
start address in memory
Input
8
AIW64
Output
8
AQW64

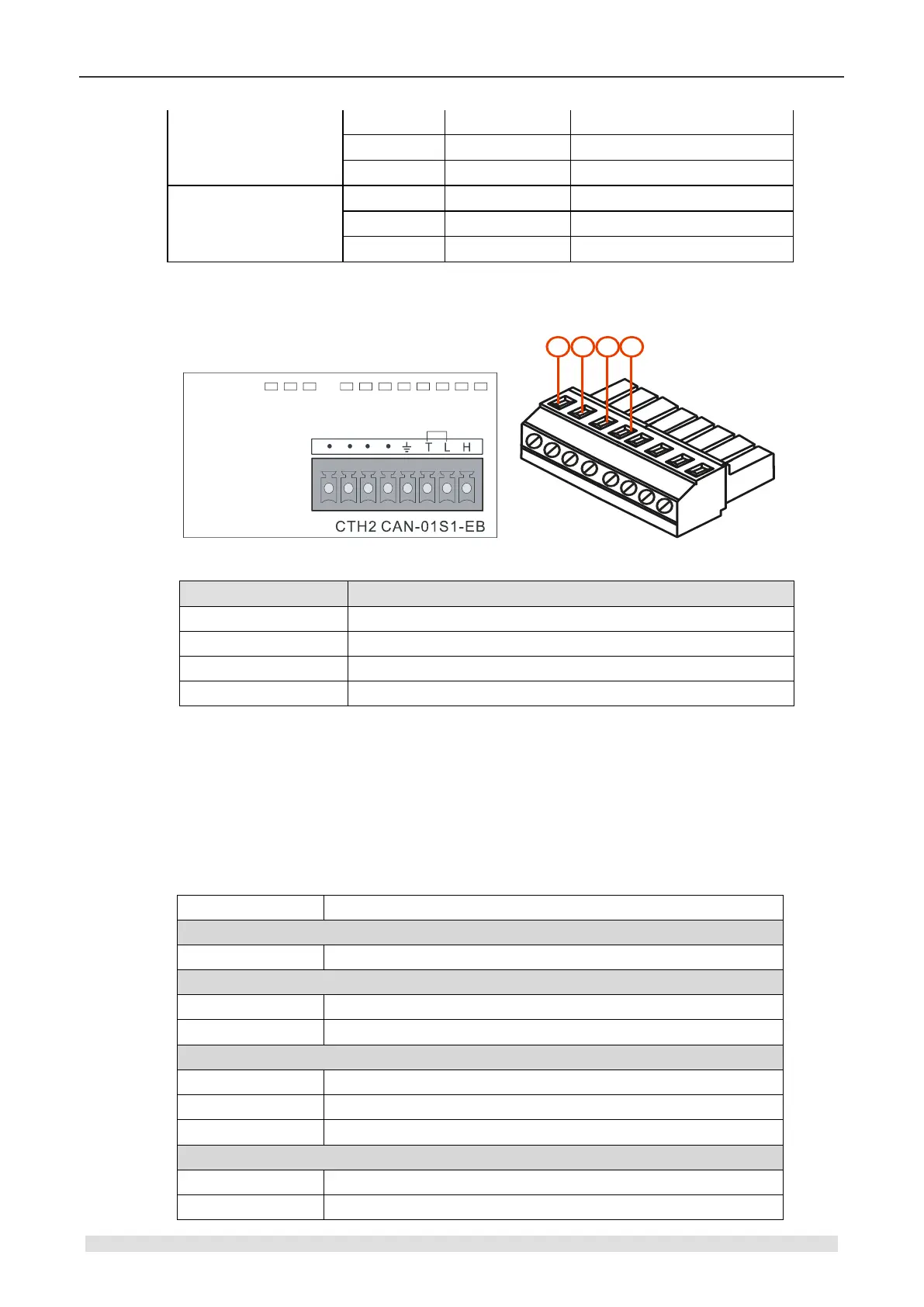

Schematic and terminal diagrams of CAN-01 are shown in the following figures.
1 2 3 4
Table 4-10-6 Terminal definition
Terminal
Signal definition
1
CAN_H
2
CAN_L
3
Terminal 2 with 3 when matching Termination resistor
4
Ground
4.10.3 Circuit Guidance Expansion Board Specifications
Circuit guidance expansion board, one of the CTH200 series PLC expansion boards, is used to
detect the connection and charging status between charging piles and charging gun or car, which
can be used to control the charging speed. Suitable both for AC and DC charging.
Table 4-10-7 Specifications of circuit guidance expansion board
Order No.
CTH2 PWM-04S1-EB
Features
Dimension(W×H×D)
28×14.4×68.2 mm
Power
Bus power voltage
+5V DC
Bus power current
< 200mA
LED
Power indicator
ON = 5VDC power supply normal, OFF = no power supply
SF indicator
Flashing =calibration fail, flash one time= successfully calibration
CC indicator
ON = connected, OFF = disconnected
Function
Expansion
With bus expansion function
Output protection
With TVS protection
