Technical Specifications
106

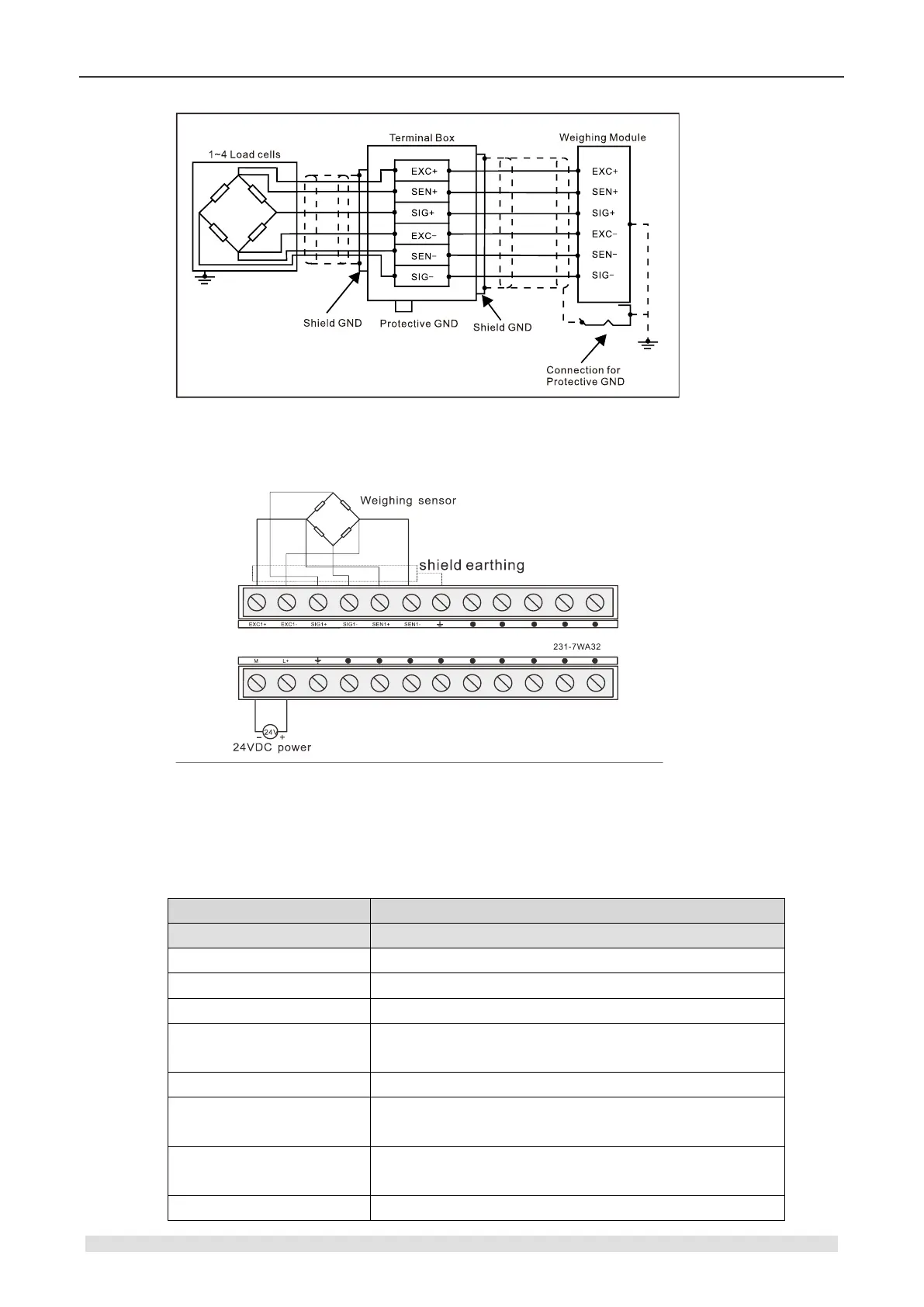

Wiring Diagram
SM231 weighing module (CTH2 231-7WA32)
4.9 Motion Control Module Specifications
Table 4-9-1 Specifications of motion control module
Order number
CTH2 253-1BH32
General
24VDC input
Input counts
8
Type
Drain/Source (IEC class1/Drain)
Rated voltage
24 VDC at typical 5mA
Maximum Continuous
permissible voltage
30 VDC
Surge voltage
35 VDC for 0.5 s
Logic 1(Min)
15.6 VDC(I0.0, I0.1, I0.2, I0.4, I0.5, I0.6) at 2.72mA
12.8VDC(I0.3, I0.7) at 2.55mA
Logic 0(Max)
15.4VDC(I0.0, I0.1, I0.2, I0.4, I0.5, I0.6) at 2.69mA
12.6 VDC(I0.3, I0.7) at 2.51mA
Input delay
< 1.1us(I0.0, I0.1, I0.2, I0.4, I0.5, I0.6)
