Appendix

316

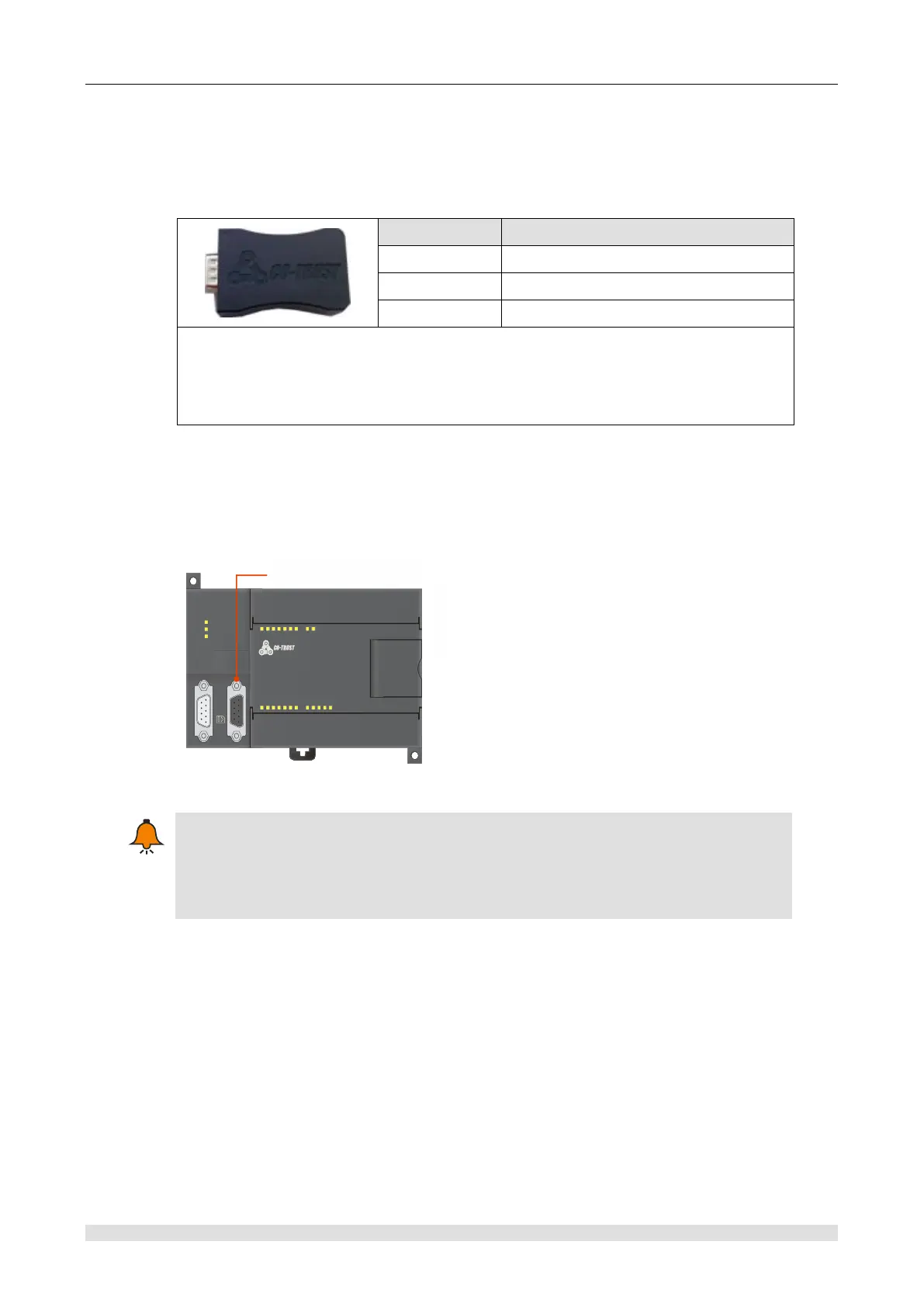

N How to Use Programming Card

Table N-1 Products specifications

Specifications

Description

Title

Programming card

Order no.

CTS7 291-PC001

Dimension

(W×H×D) 63 mm ×33 mm × 17 mm

Remarks:

 CTH200 series PLC realize data storage and portable programming by corresponding card.

 CTH200 series PLC do not support third-party memory card.

 H228XL do not support CTSC 291-PC001 V1.0(version 128K)

【Security】

Data in programming card is encrypted to keep away from being maliciously cracked or modified.

【Interface】

Connect the right RS485 port.

TrustPLC CTS7-X00

SF/DIAG

RUN

STOP

.0 .1 .2 .3 .4 .5 .6 .7

.0 .1 .2 .3 .4 .5 .6 .7 .0 .1 .2 .3

PO R TO

FP OR TO

连接编程卡

支持编程卡的型号：CPU

CPU 124/124XP/126

CPU 224+/224E/226M/226L/226H

PSC266

Connect to programming card

Note

Programming card record CPU’s type while downloading program from it. Uploading

program is not allowed if the CPU’s type is inappropriate. There is no need to distinguish

relay or transistor for the same type PLC.

Using programming card

【Flow chart】
