Applications

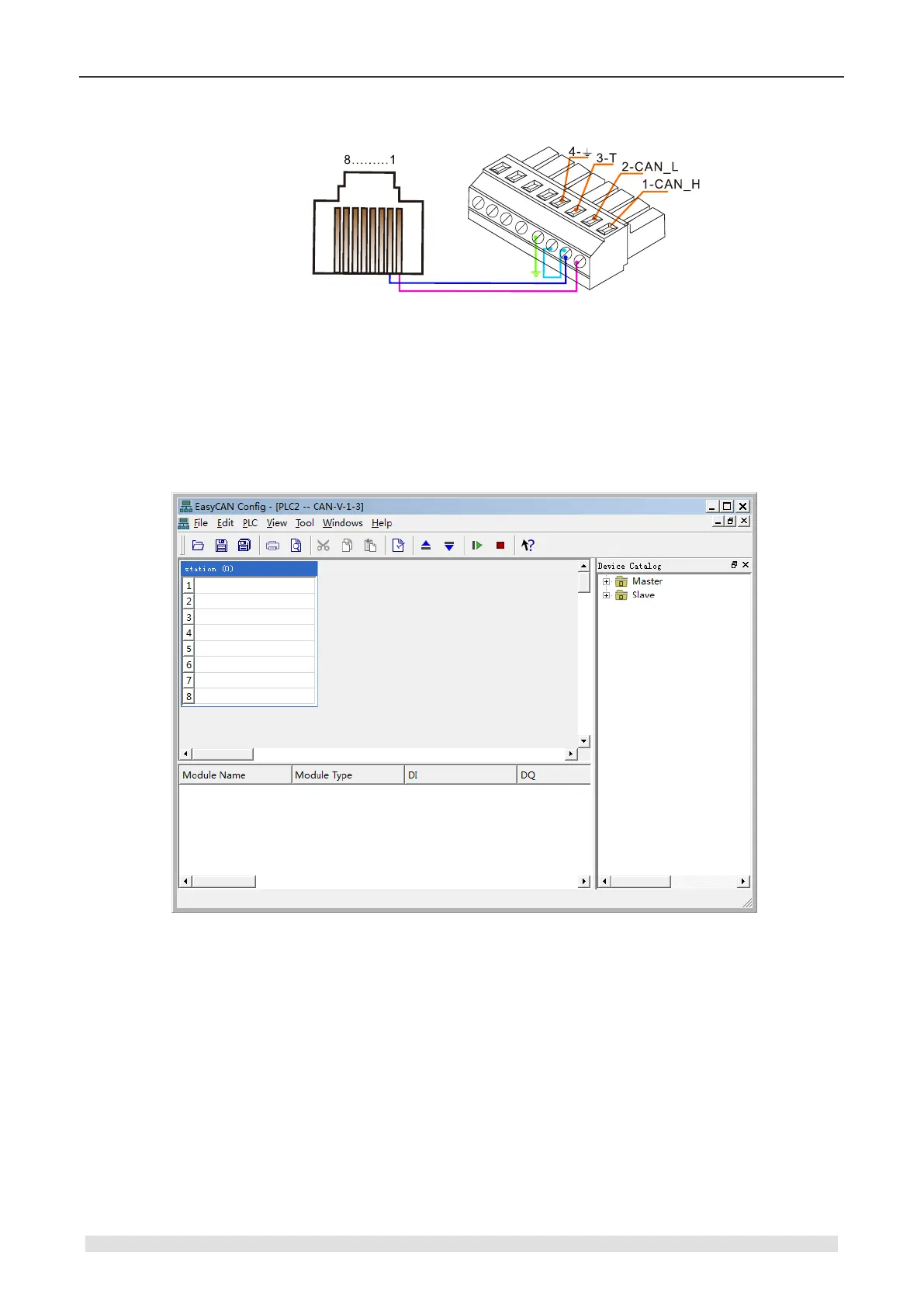

Figure below shows how to connect CANopen bus with CPU terminal:
Figure 6-2 CANopen bus connection
Note: Please short-connect 2 with 3 when matching with terminal resistance
6.1.3 Operating Steps
CANopen network configuration
1. Open the EasyCAN configuration interface
Figure 6-3 EasyCAN configuration page
2. Add Master station
The CANopen Bus editor shows in the following figure, select the CTH200 PLC corresponding
with device currently in use in the “Device Catalog” of Master, drag and drop it into slot 1 of
Station 0.
