Technical Specifications

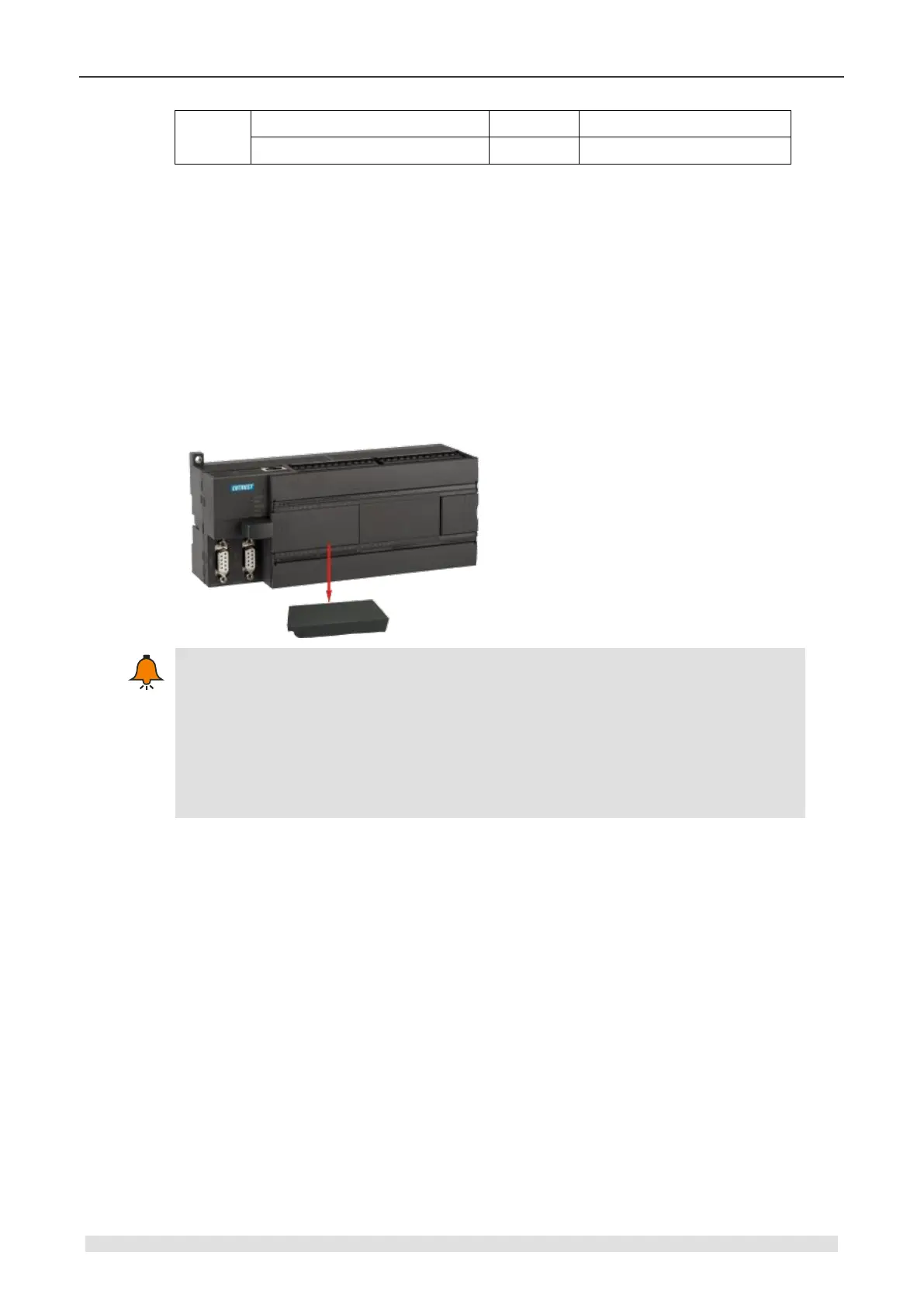

4.10.4 Installation of BD Board
Following the below steps to install Analog I/O and CAN expansion boards:
1. Make sure the power of CPU and related devices are all cut-off, lay down the CPU module.
2. Remove the cover plate along the left-side of Expansion Board.
3. Plug the Expansion Board into board slot, make sure the pins are fit closely with the socket.
4. Make the right-side of cover plate inclined to insert into slot on board slot of the CPU.
5. Press the left-side of the cover plate inclining, fit it onto CPU again.
CTH200 series CPU all support Analog I/O expansion board, but only H224X,
H226XL and H228XL support CAN-01.
CAN-01 can be used for CPU directly, but Analog I/O expansion board can be used
for CPU only by invoking ExBoard_H200 library or special memory. For more details,
please refer to chapter 6.4.2 Expansion Board Access Address.
Hot-plug is not supported for the board.
