COTRUST CTH200 Series User Manual

CTH200 Series PLC User Manual
115

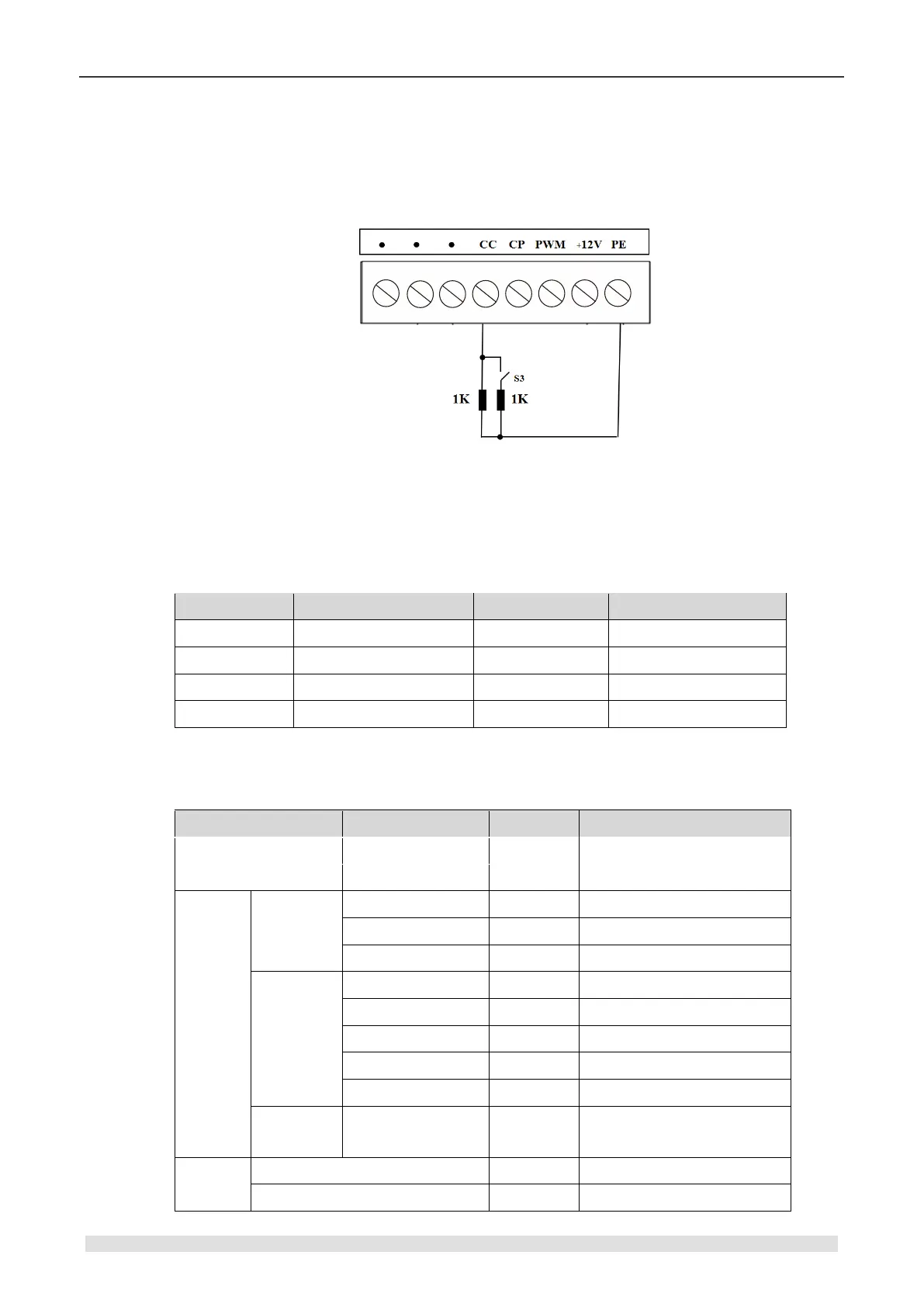

2) Diagram below shows the function of DC charging guidance:
CC detect the connection status of DC charging cable, 12V means disconnected (0X12), CC will
detect 6V(status 0X06) when connect 1K resistance; CC detect 4V(status 0X04) when S3
closed.
DC charging guidance diagram
Visiting mode
The visiting mode of expansion board is SM area address visit, range from SMB114--SMW124,
table 4-10-9 shows the definition of SM visiting address:
Table 4-10-9 map access address
Function
Map access address
Function
Map access address
CC input
SMW116
PWM output
SMW124
CP input
SMW118
Reserved output
SMW126
Guidance
SMW120
Module type
SMB114
Reserved input
SMW122
Module status
SMB115
The type and status of modules will display in corresponding address when PLC access
expansion board, details show as table 4-10-10
Table 4-10-10 module status definition
Name
Function
Value
Explanation
Module type
With module
0x1E
Access one time when power
on
Without module
0x00
Guidance
status
DC charging
CC disconnected
0x12
CC detect voltage 12V
CC connect status1
0x06
CC detect voltage 6V
CC connect status 2
0x04
CC detect voltage 4V
AC charging
CC disconnected
0x12
Same as DC
CC connected
0x00
CC detect voltage 0V
Charging status 1
0x01
CP detect voltage 12V
Charging status 2
0x02
CP detect voltage 9V
Charging status 3
0x03
CP detect voltage 6V
Abnormal
Guidance detection
abnormal
0xFF
CC/CP detect nonstandard
voltage
Module
status
Run normal
0x00
Expansion board normal
Communication fail
0x01
