COTRUST CTH200 Series User Manual

CTH200 Series PLC User Manual
63

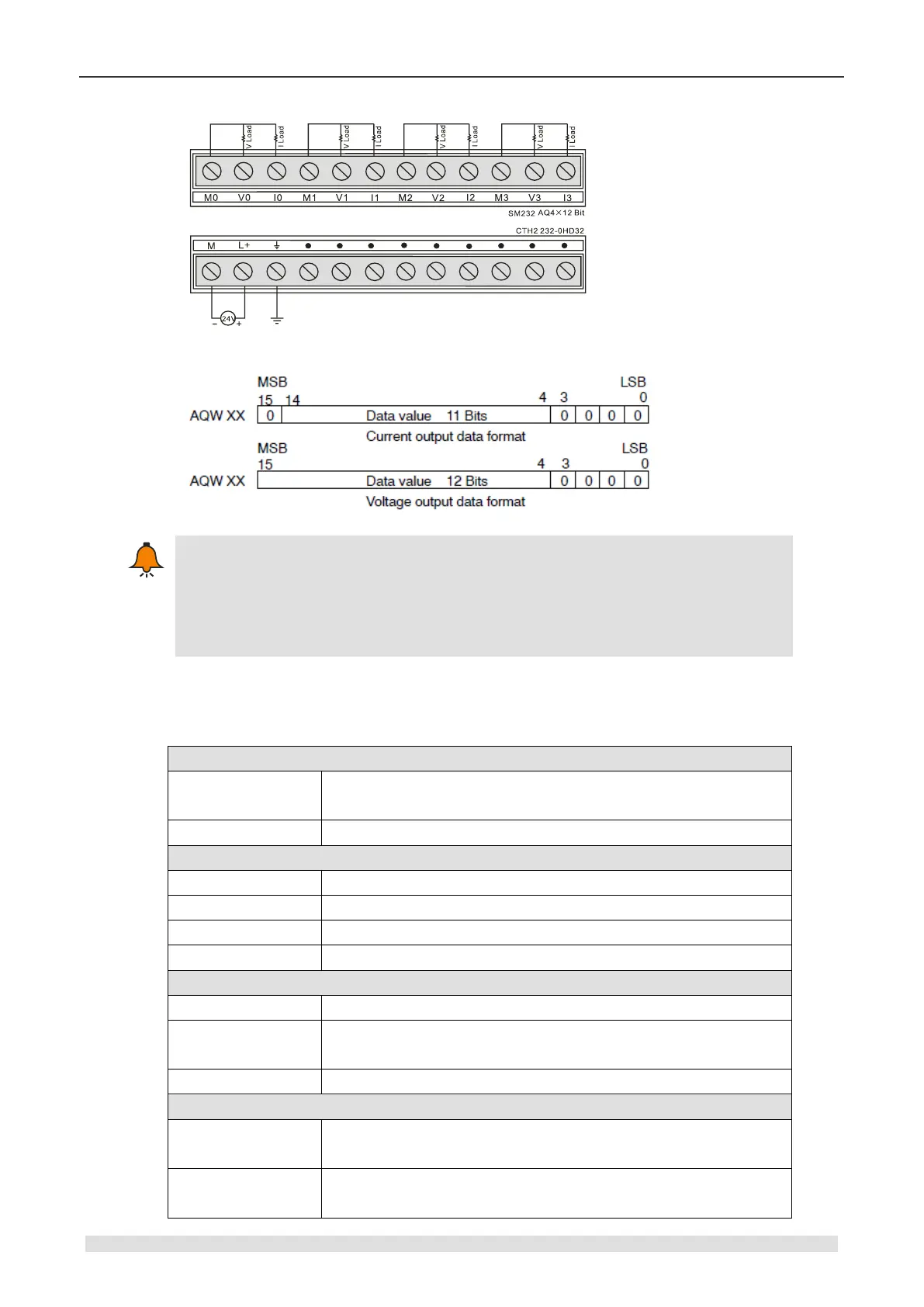

Output Data Format
Notice
The 12 bits of the digital-to-analog converter (DAC) readings are left-justified in the
output data word format. The MSB is the sign bit: zero indicates a positive data word
value. The four trailing zeroes are truncated before being loaded into the DAC registers.
These bits have no effect on the output signal value.
4.4.3 Analog I/O Modules Specifications
Table 4-4-13 Analog I/O modules specifications
Features
Dimension
(W×H×D)
71.3 × 96 × 62mm
LED
24V power , ON: normal, OFF: faulted
Power Supply
+5VDC current
87mA
L+
48mA
L+ Coil Voltage
20.4~28.8VDC
Power consumption
2W
Analog Input
Counts
4
Isolation (field to
logic)
Opto-couplers isolation, 500V AC for 1 minute
Type
Differential input
Scale Range
Voltage input
(Unipolar)
0-10V, 0-5V, 0-1V, 0-500mV, 0-100mV, 0-50mV
Voltage input
(bipolar)
±10V,±5V,±2.5V,±1V,±500mV, ±250mV, ±100mV,±50mV,±25mV
