COTRUST CTH200 Series User Manual

Technical Specifications
62
Modules
SM232: 2 AQ × 12 bits
SM232: 4 AQ × 12 bits
Order No.
CTH2 232-0HB32
CTH2 232-0HD32
Features
Dimension (W×H×D)
46 × 96 × 62mm
71.3 × 96 × 62mm
LED
24V indicator, ON: Normal, OFF: Faulted
Power consumption
+5VDC current
87mA
L+
61mA
112mA
L+ Coil Voltage
20.4~28.8VDC
Power consumption
2W
Analog Output
Counts
2
4
Isolation (field to
logic)
Opto-couplers isolation, 500V AC for 1 minute
Output range
Voltage
±10V
Current
0~20mA
Resolution
Voltage
12 bits
Current
11 bits
Data Word Format
Voltage
-32000~+32000
Current
0~32000
Measurement error
Typical: Full scale ±0.5%; Worst case: Full scale ±2%
Stable time
Voltage
100μs
Current
2ms
Maximum drive@24V user power
Voltage
Minimum 5000Ω
Current
Maximum 500Ω

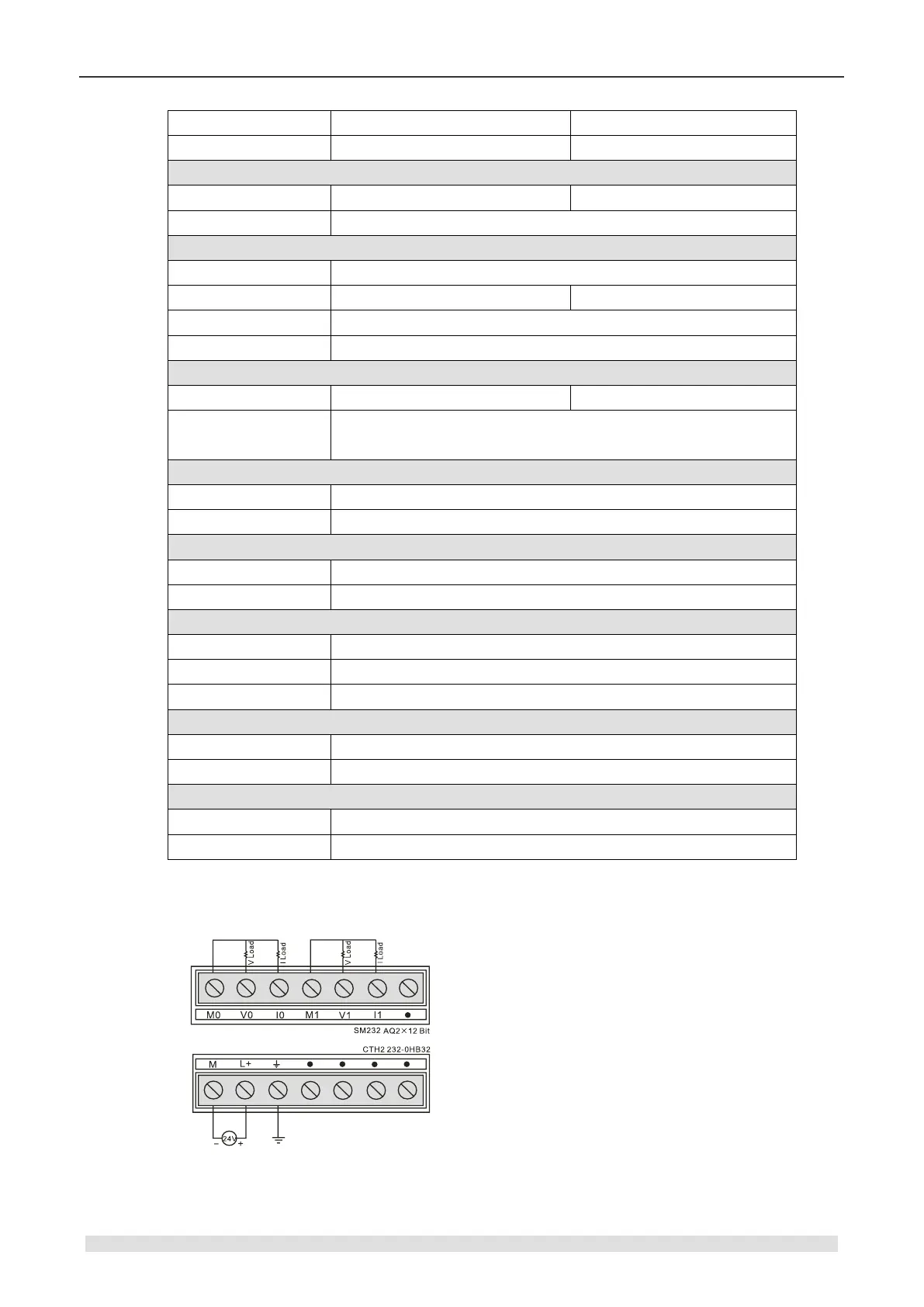

Wiring diagram
SM232 analog output modules (CTH2 232-0HB32)
SM232 analog output modules (CTH2 232-0HD32)
