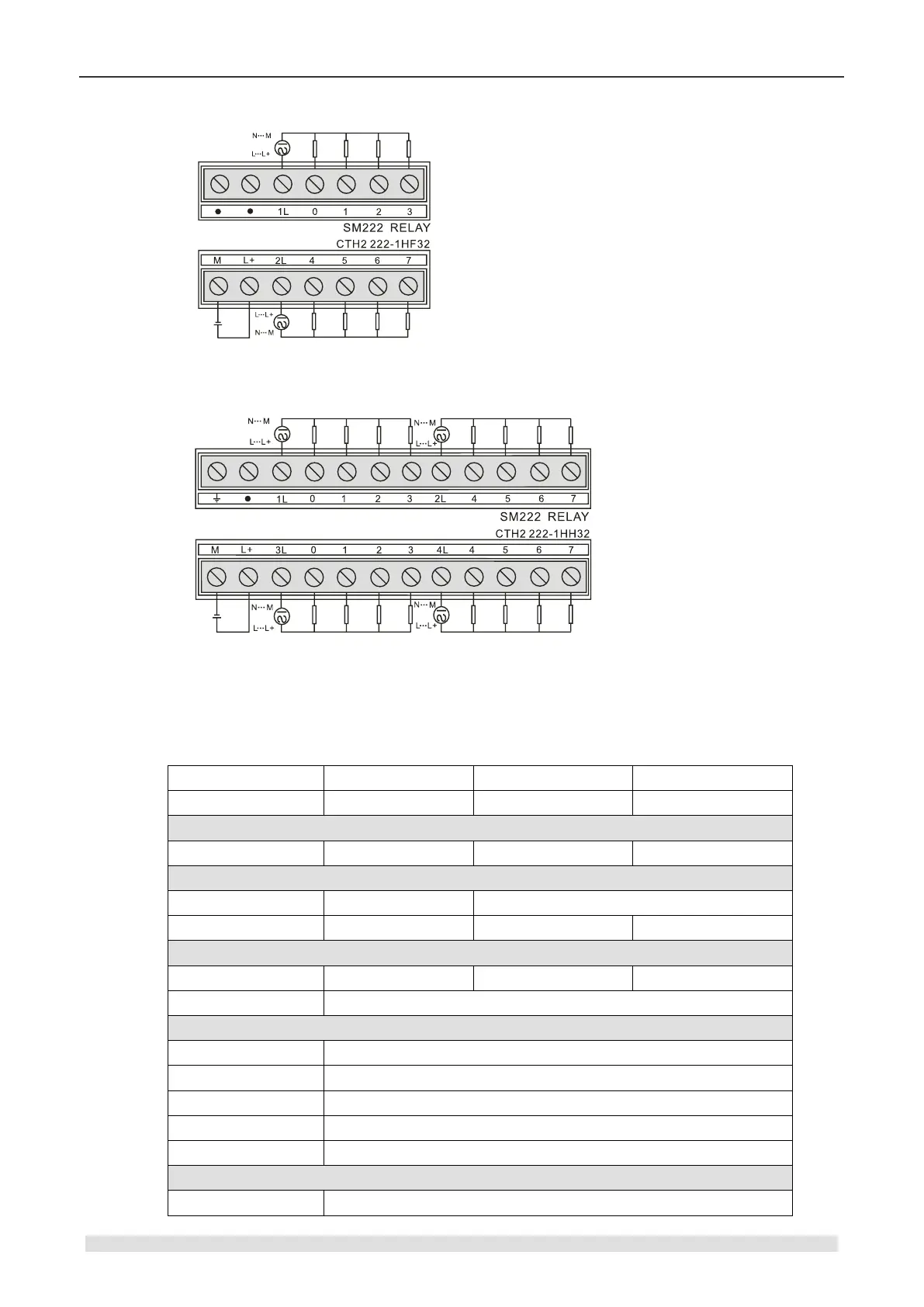

SM222 relay output module (CTH2 222-1HH32)
4.3.3 Digital Input/Output Module Specifications
Transistor Output
Table 4-3-5 Digital I/O Module Specifications
Features
4 DI/DO, 24VDC
8 DI/DO, 24VDC
16 DI/DO, 24VDC
Order No.
CTH2 223-1BF32
CTH2 223-1BH32
CTH2 223-1BL32
Dimension
Size (W×H×D)
46 × 96 × 62mm
71.3 × 96 × 62mm
138 × 96 × 62mm
Power supply
Power loss
2W
3W
+5VDC Consumption
57mA
73mA
115mA
Input
Counts
4
8
16
Type
drain/source
Input Voltage
Rated Voltage
24VDC
Max. rated voltage
30VDC
Surge
35VDC, 0.5s
Logic “1”
15~30V
Logic “0”
0~5V
Isolation
Optical (galvanic,
500VAC last within 1 minute
