COTRUST CTH200 Series User Manual

CTH200 Series PLC User Manual
315
XMT
FPORT send instruction
SPA
Set port instruction
RCV
FPORT receive instruction
GPA
Get port address instruction
NETR
Network read instruction
EBUSR
Read module information
instruction
NETW
Network write instruction
EBUSW
Write module information
instruction
UDPNETR
Ethernet read function
EBUSGETDI
A
Get module internal diagnosis
information instruction
UDPNETW
Ethernet write function
EBUSSNDC
MD
Send module operation
command instruction
MBSNDMSG
Send Modbus message
--
--
M Programming Cable
CTH200 PLC programming cable with USB-485 port is used for CPU programing, upload,
download and monitor, USB end connect to PC/PG, 485 end connect to CPU PPI port.
Table M-1 Physical features of programming cable
Item
Contents
Order No.
CTS7 191-USB30
Supported OS
Windows2000/XP/7/10
Baud rate
300bps ~ 1Mbps standard
baud rate self-adaption
Work temperature
0 ~ +55 ℃
Cable length
2.5 m
Cable length each PC
supported
1
Note
Please install drive before using programming cable, drive download address:
www.co-trust.com

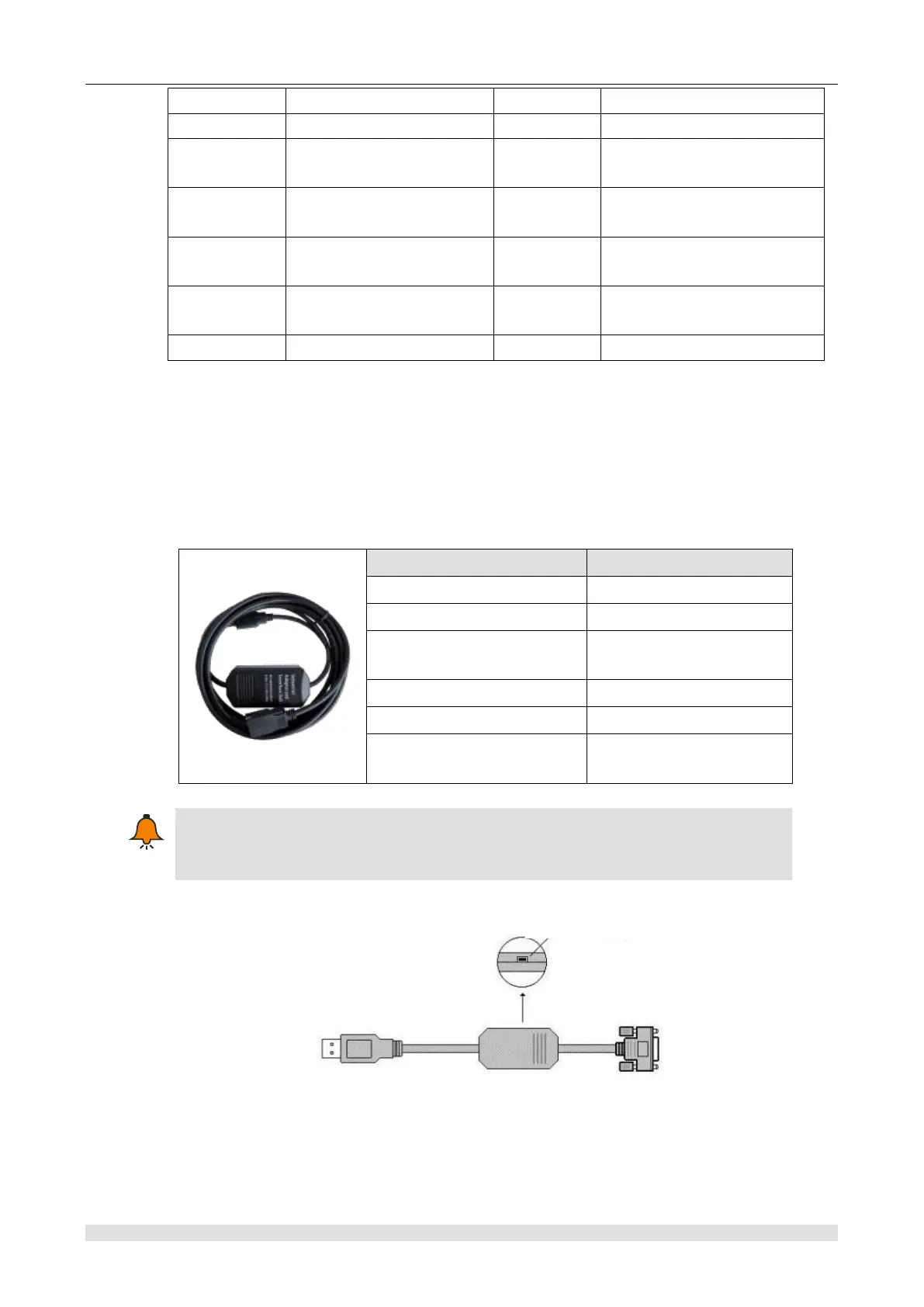

Cable appearance:
Figure M-1 Programming cable appearance
Data transceiver indicator light
Red: send dataTx
Green: receive dataRx

COTRUST CTH200 Series Specifications

General

Brand	COTRUST
Model	CTH200 Series
Category	Controller
Language	English
