3.2 Installation Dimension
Both PLC and expansion modules have mounting holes, which can be installed at back plane
conveniently. The following figure shows the Installation Dimension for all PLC and expansion
modules.

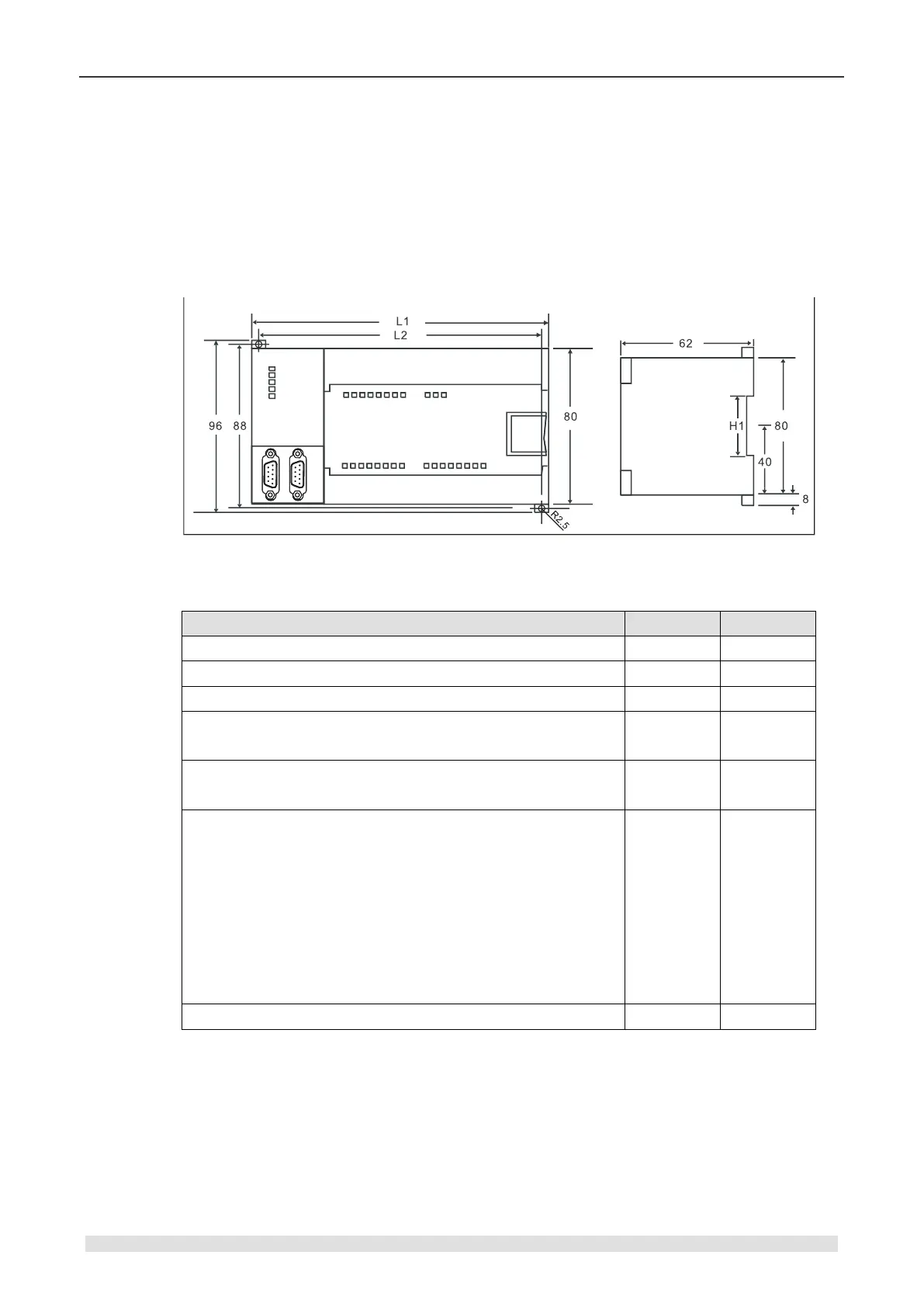

Figure 3-2 CTH200 PLC Installation Dimension (unit: mm)
Table 3-1 Dimensions of CTH200 series PLC and expansion modules
PLC
L1(mm)
L2(mm)
CPU H224/H224X
137
129
CPU H226X/H226XL
196.5
188.5
CPU H228XL
200
195
CTH2 221-1BL32, CTH2 222-1BL32
CTH2 223-1BL32, CTH2 223-1PL32
137
129
CTH2 221-1BF32, CTH2 222-1BF32, CTH2 222-1HF32
CTH2 223-1BF32, CTH2 223-1HF32, CTH2 232-0HB32
46
38
CTH2 221-1BH32, CTH2 222-1BH32, CTH2 223-1BH32
CTH2 223-1PH32, CTH2 231-0HC32, CTH2 235-0KD32
CTH2 231-0HF32, CTH2 231-1HF32, CTH2 231-5HF32
CTH2 231-7HB32, CTH2 231-7HC32, CTH2 231-7PB32
CTH2 231-7PC32, CTH2 231-7PD32, CTH2 231-7PF32
CTH2 231-7TF32, CTH2 231-7TD32, CTH2 231-7HF32
CTH2 231-7ND32, CTH2 231-7NF32, CTH2 277-0AA32
CTH2 277-0AB32
71.3
62.3
CTH2 277-0AC32
90
82
