COTRUST CTH200 Series - 2.2 Communicate with CTH200

Getting Started
10

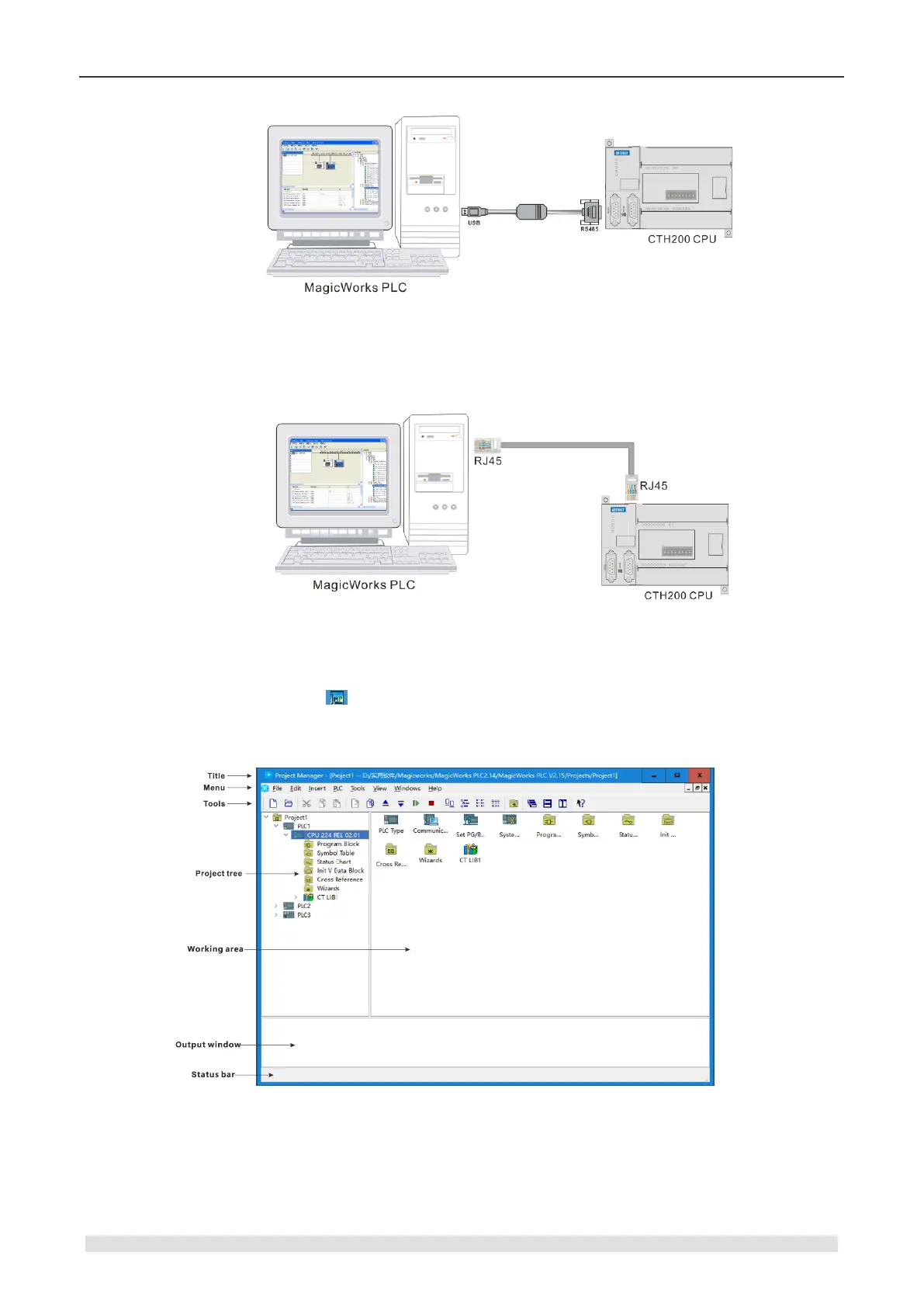

Figure 2-2 Cable connection between CTH200 PLC and PC
PLC connection with net cable
Figure 2-3 illustrates how to use standard net cable to connect CTH200 PLC with PC.
Figure 2-3 connection between CTH200 PLC&PC using net cable
MagicWorks PLC
Double-click the icon to start MagicWorks PLC software, select “File ->New” to create a new
project. Figure 2-4 shows a project tree, in which you can click icons to open MagicWorks PLC
components.
Figure 2-4 MagicWorks PLC Operation interface
