Applications

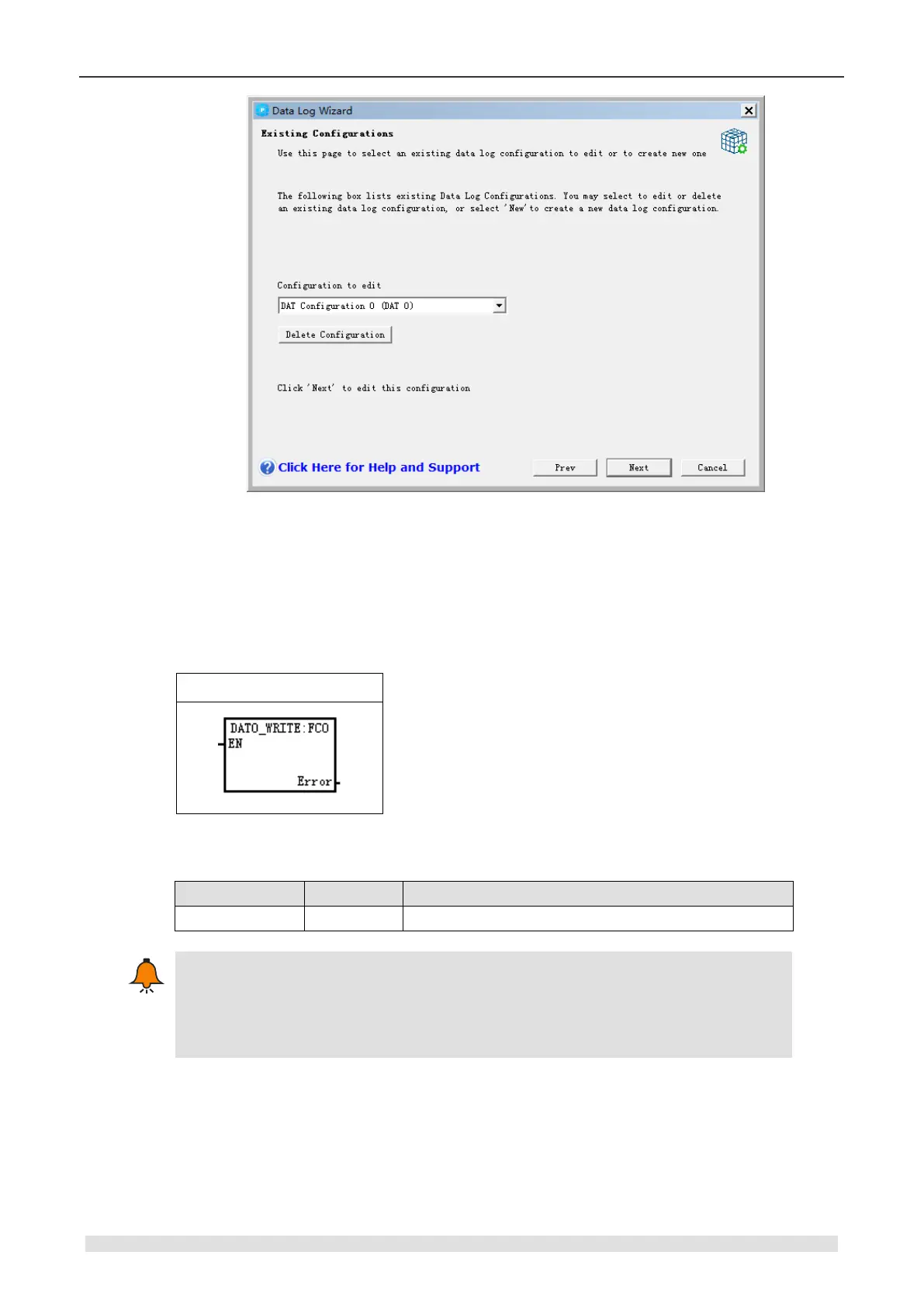

Figure 6-31 Edit Existing Data Log Configurations
Instruction Created by the Data Log Wizard
The Data Log Wizard will add a subroutine Instruction in your project.
DATx_WRITE Subroutine
The subroutine DATx_WRITE is used to write current value of data log domain into memory card.
Picture below shows this subroutine.
Return Error 132 when the instruction fails to access the memory card.
Table 6-9 Parameters of the DATAx_WRITE Subroutine
VB, IB, QB, MB, SB, SMB, LB, AC, *VD, *AC, *LD
Notice
The times for write operation, typically 1m times, have limitation, whose overrange
would result in ineffective EEPROM. So please ensure not to execute DATx_WRITE
instruction every program cycle or the card would be damaged immediately.
