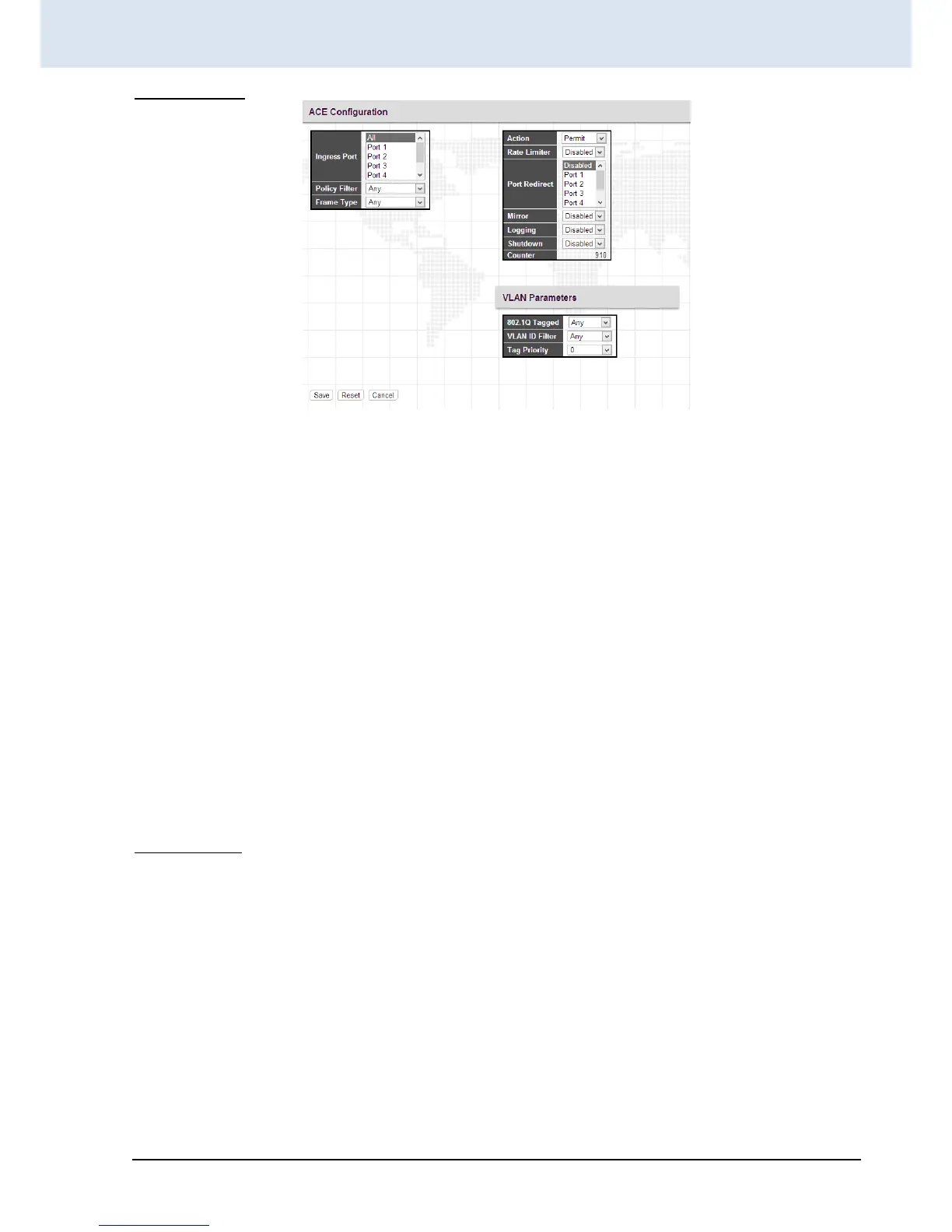

ACE Configuration
Ingress Port: Select the ingress port of the access control entry. Select “All” to apply an ACL rule to all ports or select a
particular port.
Policy Filter: Select the policy filter type. “Any” means no policy filter is assigned to this rule (or don’t care). Select
“Specific” to filter specific policy with this ACE.
Frame Type: Select a frame type to match. Available frame types include Any, Ethernet, ARP, IPv4. By default, any frame
type is used.
Action: Select the action type, either to permit or deny.
Rate Limiter: Enable or disable the rate limiter when matched frames are found.
Mirror: Enable or disable mirror function.
Logging: Enable or disable logging when a frame is matched.
Shutdown: Enable or disable shutdown a port when a frame is matched.
Counter: Display the number of frames that have matched any of the rules defined for this ACL.
VLAN Parameters
802.1Q Tagged: Select whether or not the frames should be tagged.
VLAN ID Filter: Select the VLAN ID filter for this ACE.
Any: No VLAN ID filter is specified. (Don’t care)
Specific: Specify a VLAN ID. A frame with the specified VLAN ID matches this ACE rule.
Tag Priority: Select the User Priority value found in the VLAN tag to match this rule.
