D-Link DWC-2000 User Manual

D-Link DWC-2000 User Manual 58
Section 3 - Basic Conguration

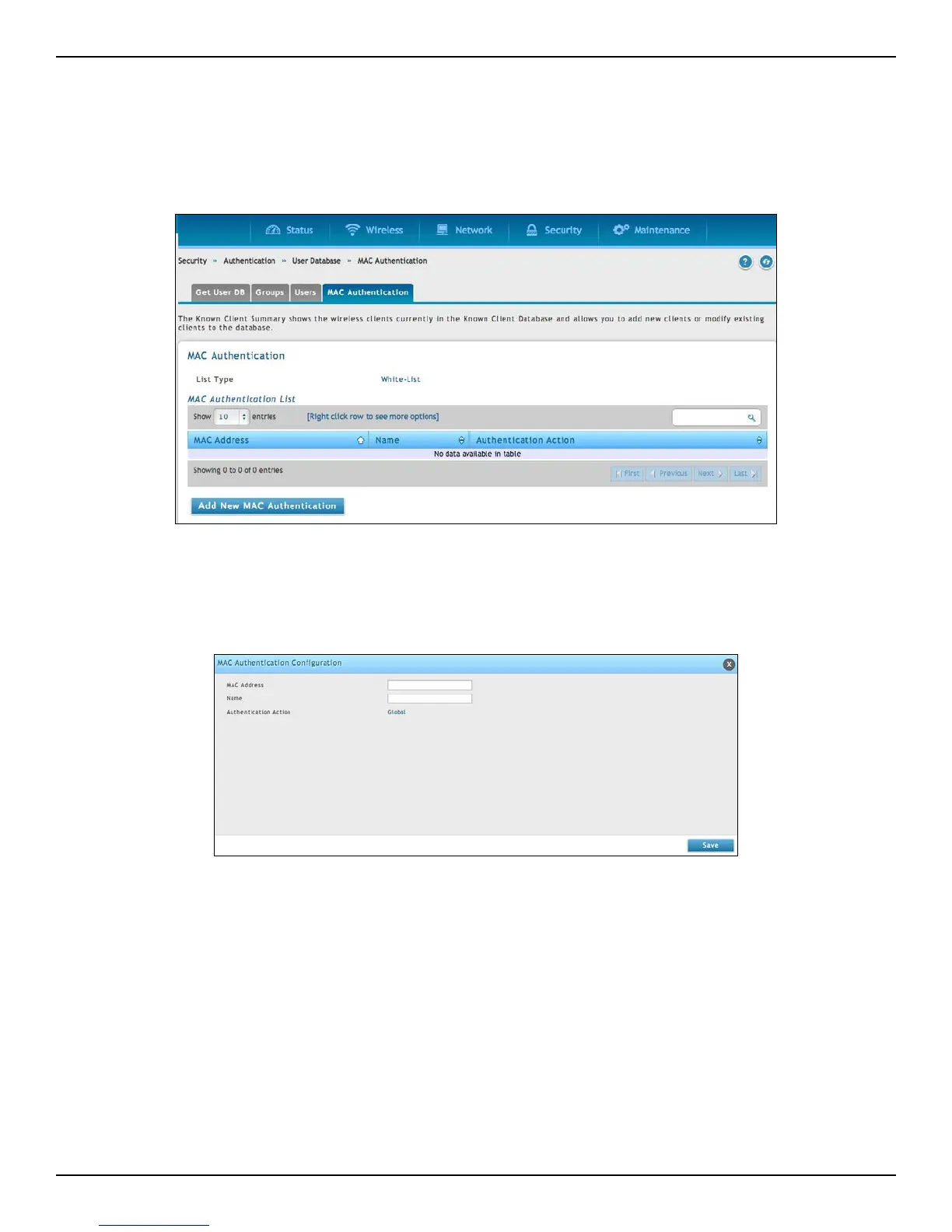

6. Create device MAC authentication database on local database.
a. Go to Security > Authentication > User Database > MAC Authentication tab.
b. Next to List Type, the current type is displayed. To change the setting, refer to “Step #5: Select
MAC Authentication Mode” on page 34.
c. Click Add New MAC Authentication. Enter the MAC address of the device and a name.
d. Click Save.
Note: If the user authentication and MAC authentication database is external authentication server
(i.e., RADIUS), please refer to “Step #8: Use SSID with RADIUS Sever as Authenticator” on page 45.
7. Discover and manage an access point from the network. Please refer to “Step #3: Select APs to be
Managed” on page 27.

D-Link DWC-2000 Specifications

General

Security algorithms	802.1x RADIUS, WPA, WPA2
Data transfer rate	1 Gbit/s
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power consumption (typical)	26.95 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Compatible products	DWL-8610AP, DWL-8600AP, DWL-6600AP, DWL-3600AP, DWL-2600AP
Certification	FCC Class A, CE Class A, C-Tick, IC, cUL, LVD
Package depth	504 mm
Package width	444 mm
Package height	110 mm
Package weight	5846 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1095 mm
Pallet height (sea)	2055 mm
Pallet gross weight (air)	250560 g
Quantity per pallet (air)	36 pc(s)
Shipping (inner) case width	396 mm
Shipping (inner) case height	480 mm
Shipping (inner) case length	526 mm
Shipping (inner) case weight	18755 g
Shipping (inner) case net weight	17538 g
Number of cartons per pallet (air)	12 pc(s)
Quantity per shipping (inner) case	3 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	3720 g
Dimensions (WxDxH)	440 x 310 x 44 mm
