D-Link DWC-2000 User Manual

D-Link DWC-2000 User Manual 57
Section 3 - Basic Conguration
5. Create Captive Portal accounts on the local database.

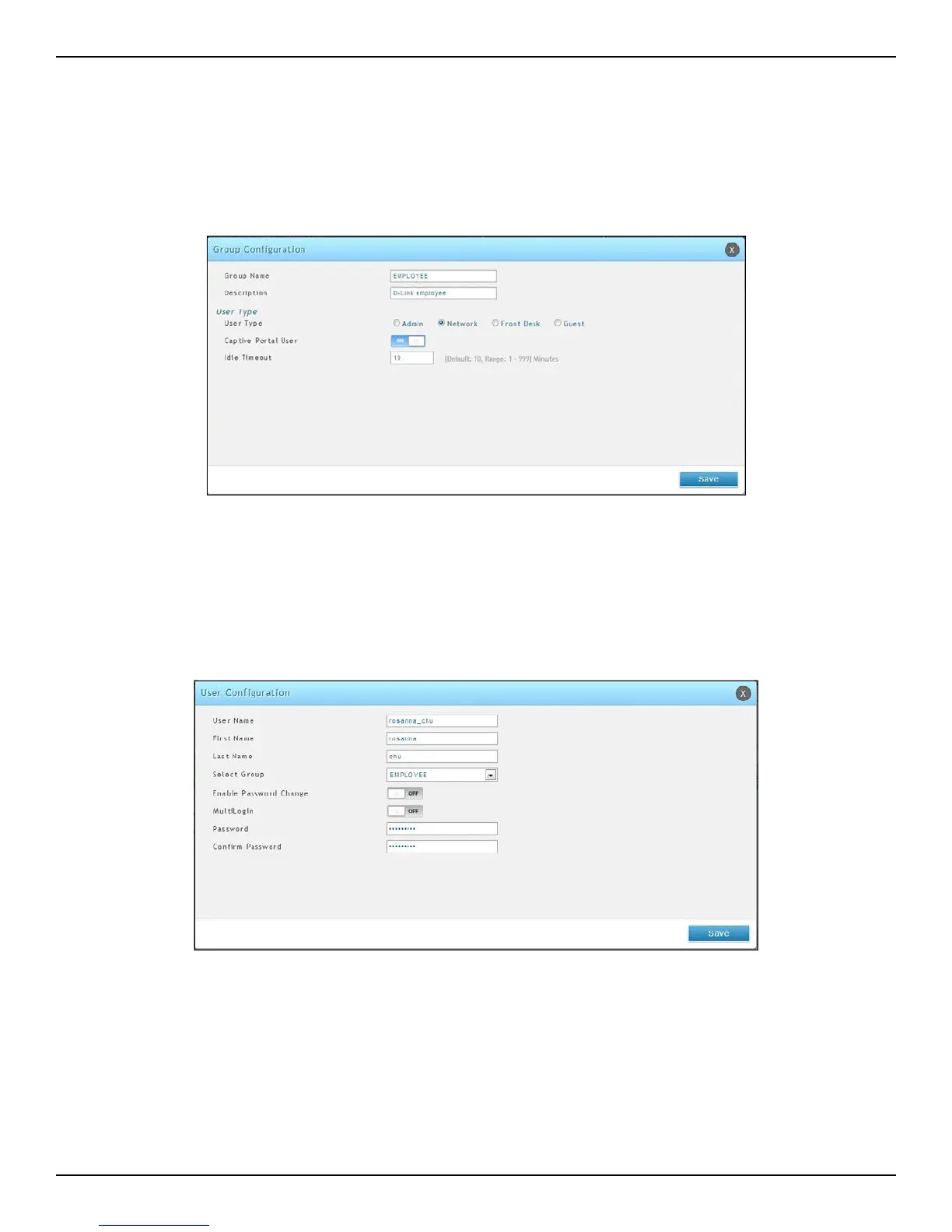

a. To create a user group, go to Security > Authentication > User Database > Group tab.
b. Click Add New Group. Create a group called “EMPLOYEE”. Next to User Type select Network,
and toggle Captive Portal User to On. Enter an Idle Timeout value (in minutes).
c. Click Save.
d. Create user accounts. Go to Security > Authentication > User Database > Users tab.
e. Click Add New User to create user accounts. Fill in the elds and select EMPLOYEE next to
Select Group.
f. Click Save.

D-Link DWC-2000 Specifications

General

Security algorithms	802.1x RADIUS, WPA, WPA2
Data transfer rate	1 Gbit/s
USB 2.0 ports quantity	2
Ethernet LAN (RJ-45) ports	4
Input voltage	100 - 240 V
Input frequency	50 - 60 Hz
Power consumption (typical)	26.95 W
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	5 - 95 %
Compatible products	DWL-8610AP, DWL-8600AP, DWL-6600AP, DWL-3600AP, DWL-2600AP
Certification	FCC Class A, CE Class A, C-Tick, IC, cUL, LVD
Package depth	504 mm
Package width	444 mm
Package height	110 mm
Package weight	5846 g
Pallet width	1200 mm
Pallet length	1100 mm
Pallet height (air)	1095 mm
Pallet height (sea)	2055 mm
Pallet gross weight (air)	250560 g
Quantity per pallet (air)	36 pc(s)
Shipping (inner) case width	396 mm
Shipping (inner) case height	480 mm
Shipping (inner) case length	526 mm
Shipping (inner) case weight	18755 g
Shipping (inner) case net weight	17538 g
Number of cartons per pallet (air)	12 pc(s)
Quantity per shipping (inner) case	3 pc(s)
Harmonized System (HS) code	85176990

Weight and Dimensions

Weight	3720 g
Dimensions (WxDxH)	440 x 310 x 44 mm
