Dahua DHI-NVR608R-64-4KS2 User Manual

334
Figure 4-111

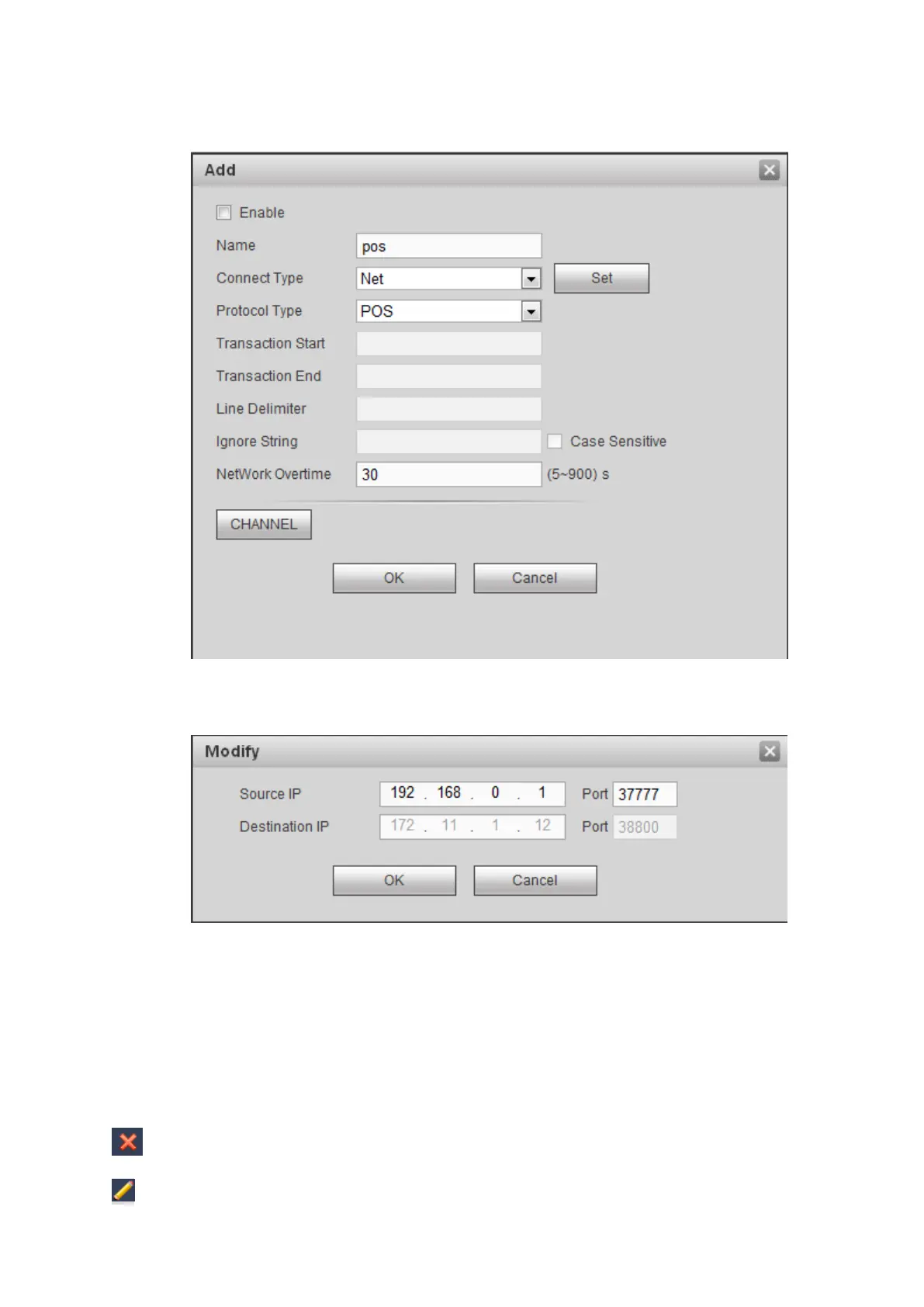

Click Add, you can see the following dialogue box. See Figure 4-112.
Figure 4-112
Check the box to enable POS function, Click Set button; you can see the following interface. See Figure
4-113
Figure 4-113
Set source IP and destination IP, and then click OK. System goes back to Figure 4-112.
 Source IP: POS device IP address.
 Destination IP: NVR IP address.
In Figure 4-112, click Channel Set button, select the channel you want to overlay POS information. Click
OK button to complete the setup.
Tips
: Click it to delete POS setup.
: Click it to change setup information.

Dahua DHI-NVR608R-64-4KS2 Specifications

General

Model	DHI-NVR608R-64-4KS2
Operating System	Embedded LINUX
IP Camera Input	64 channels
Two-way Talk	Yes
OSD	Yes
Video Detection and Alarm	Yes
Wireless	No
USB	2 x USB 2.0
Operating Humidity	10% to 90% (non-condensing)
Video Compression	H.265+/H.265/H.264+/H.264
Video Output	HDMI, VGA
Alarm input	16 channel
Relay Output	4
Ethernet	2 RJ-45 port (10/100/1000Mbps)
Internal HDD	8 SATA interfaces, up to 10TB each
eSATA	1
RS232	1
RS485	1
Power Supply	AC 100-240V, 50/60Hz
Operating Temperature	-10°C to +55°C
Dimension	440mm
Weight	6.5 kg
