Linea Lite GigE Series Camera Operational Reference • 121
Case 3: Timer Reset before the Actual Start Time
Conditions:
• initial timestampControlReset resets Timestamp counter
• timestampModuloStartTime at 20
• timestampModulo = 10
• second timestampControlReset at count 25
• timestampModuloActualStartTime = first event (F1)
After the initial Timestamp Reset which starts the Timestamp counter, the Modulo start time is at
20. The Modulo 10 actual start time for the first acquisition is at Timestamp 30 (as described in
Case 1).
If a new Timestamp Reset happens between the Start Time and acquisition Actual Start Time, the
Timestamp counter will restart from time 00. The Start Time value has already been stored, thus
the modulo Actual Start Time remains at 30. In this condition the Actual Start Time did not reset.
00 10 20 30 40 50 60
Timestamp Reset
Start Time
Actual Start Time
F1 F2 F3 F4
Timestamp counter resets
First modulo acquisition remains as it was — following the initial modulo start time

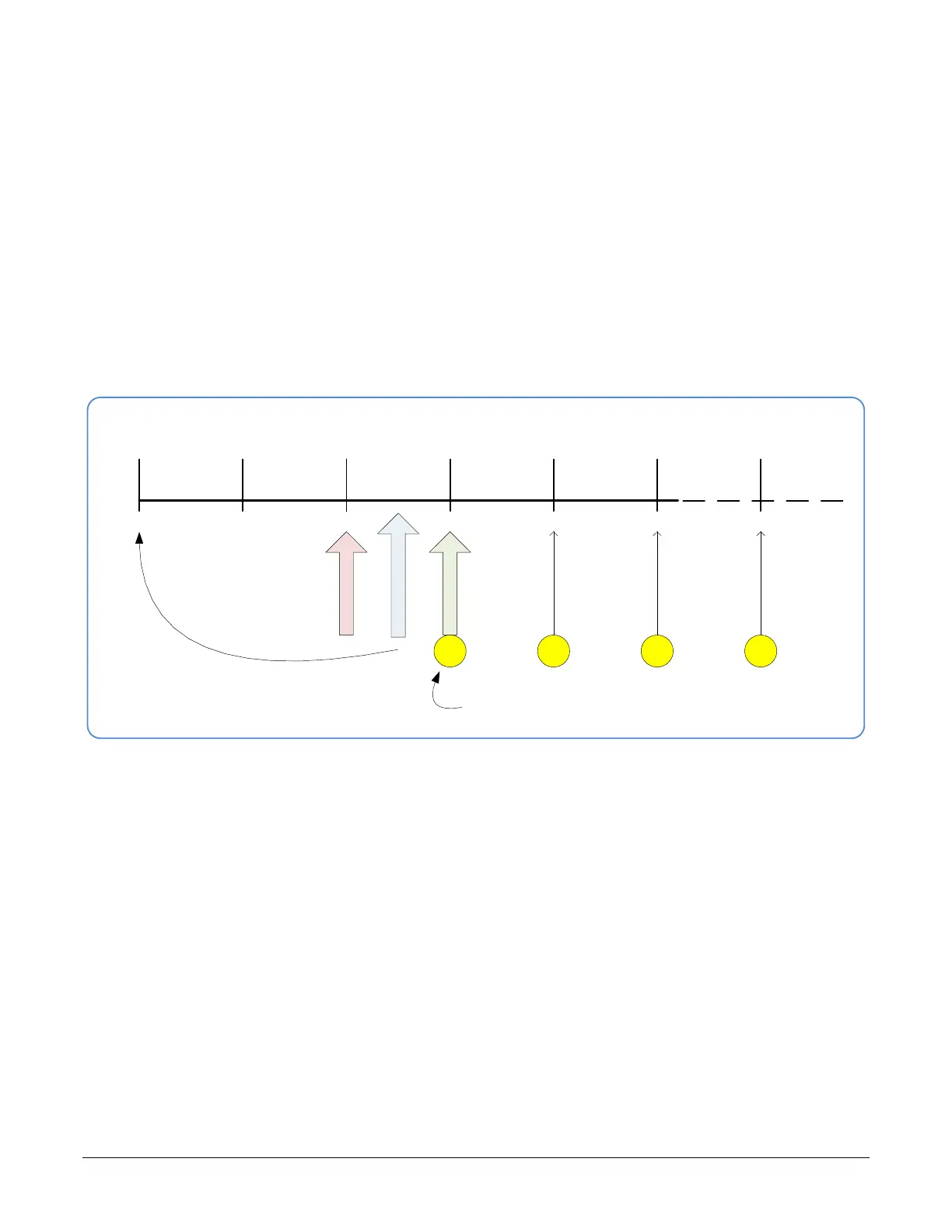

Figure 90: Case 3 – Timer Reset before the Actual Start Time
