Case 4: Timer Reset after the Actual Start Time
Conditions:
• initial timestampControlReset resets Timestamp counter
• timestampModuloStartTime at 20
• timestampModulo = 10
• timestampModuloActualStartTime = first event (F1)
• second timestampControlReset at 35
This case describes the Modulo process if there is a Timestamp counter reset after a modulo
controlled acquisition.
• “A” shows the initial conditions with the first acquisition (F1) at the actual start time.
• “B” shows a Timestamp reset occurring after the first acquisition.
• “C” shows that acquisitions then continue at the first modulo 10 time after the reset due to
acquisitions already in progress compared to the example case 3 above.
00 10 20 30 40 50 60
Timestamp Reset
Start Time
Actual Start Time
F1
F2 F3 F4
Timestamp counter resets
“A”
00 10 20 30 40 50 60
“B”
Timestamp Reset
00 10 20 30 40 50 60
“C”
F1
F2 F3
F4 F5
F6
F6
Modulo acquisition
continues at new
Timestamp count

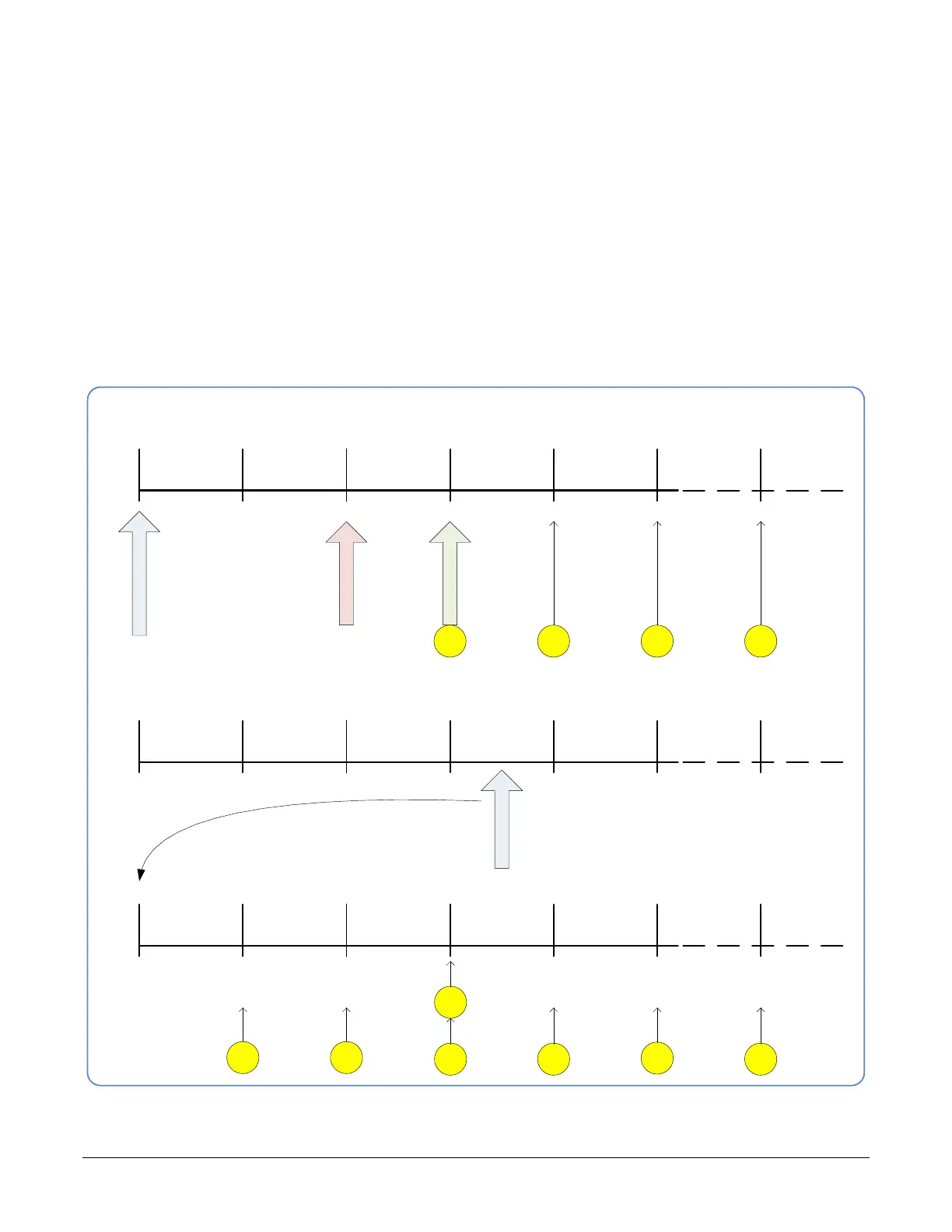

Figure 91: Case 4 – Timer Reset after the Actual Start Time
