Dalsa Linea Lite GigE Series User Manual

88 • Operational Reference Linea Lite GigE Series Camera
Example: Counter Start Source = OFF
Countermode = OFF
Counter is
IDLE
Counter
Overflow
CounterEnd Event Generated
Counter is
Active
CounterStartSource
= OFF
Counter
Trigger Wait
Counter is incrementing
Countermode = Active
CounterResetSource
=
OFF
CounterResetSource = Event
Counter Reset CMD
Counter
Completed
CounterResetSource
= CounterEnd
CounterStartSource = OFF
0

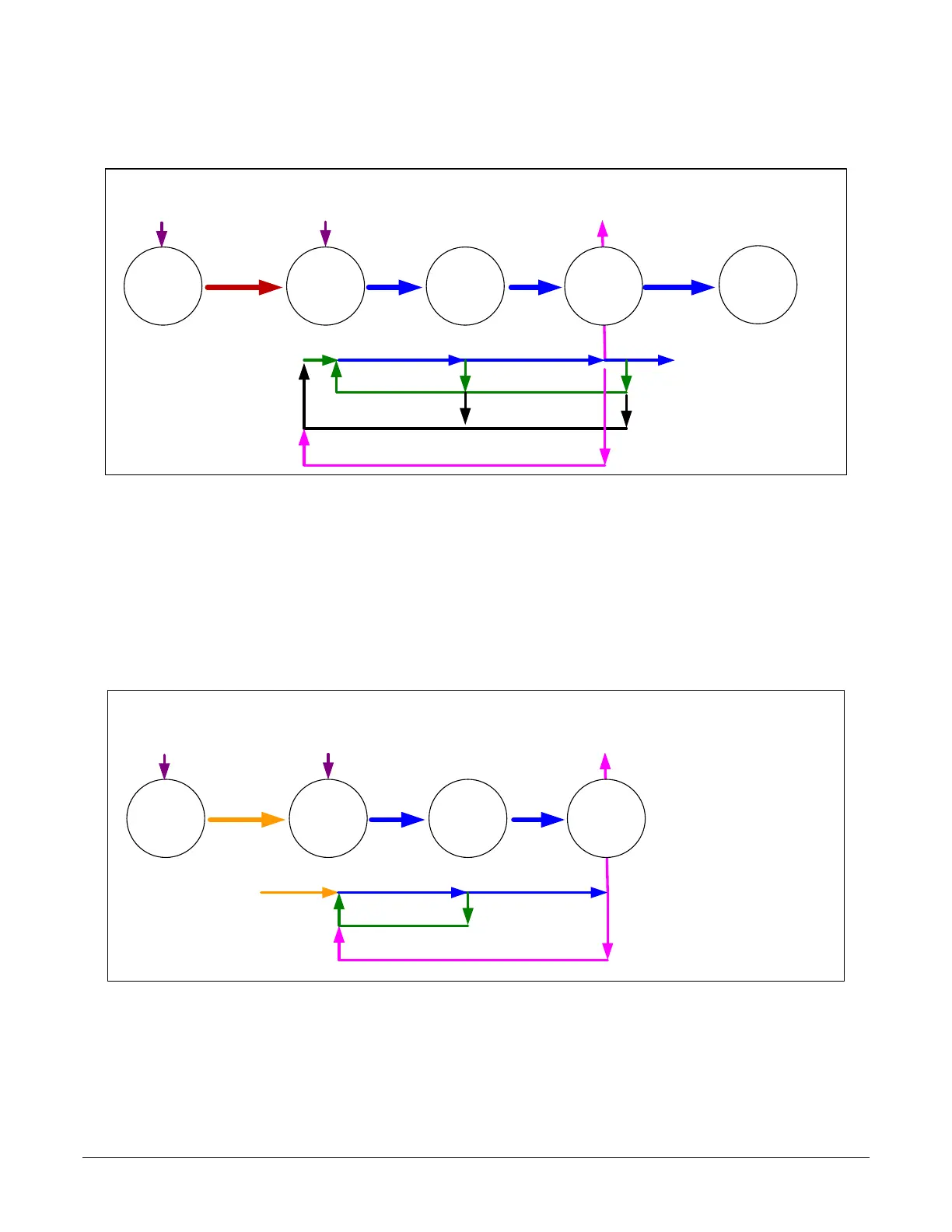

Figure 71: Example – Counter Start Source = OFF
• The counter starts on the counterReset Cmd.
• The counter continues unless a new counterReset Cmd is received, which then restarts the
counter at 00.
• When Counter Reset Source= ‘Event’ or ‘CounterEnd’ the counter is reset to 00 but does
not restart counting, until the next CounterReset Cmd.
Example: Counter Start Source = CounterEnd (itself)
Countermode = OFF
Counter is
IDLE
CounterEnd Event Generated
Counter is
Active
CounterStartSource
=
CounterEnd (itself)
Counter
Trigger Wait
Counter is incrementing
Countermode = Active
Counter Reset CMD
Counter
Completed
CounterResetSource = CounterEnd
CounterStartSource = CounterEnd (itself)
0
Figure 72: Example – Counter Start Source = CounterEnd
• Counter starts when Counter Mode is set to Active.
• A Counter Reset CMD will reset the counter to 00 and it then continues counting.
