Enter/Exit Programming Mode Code ISBT 128

150

Gryphon™ I GD44XX

GBT4400/GM440X

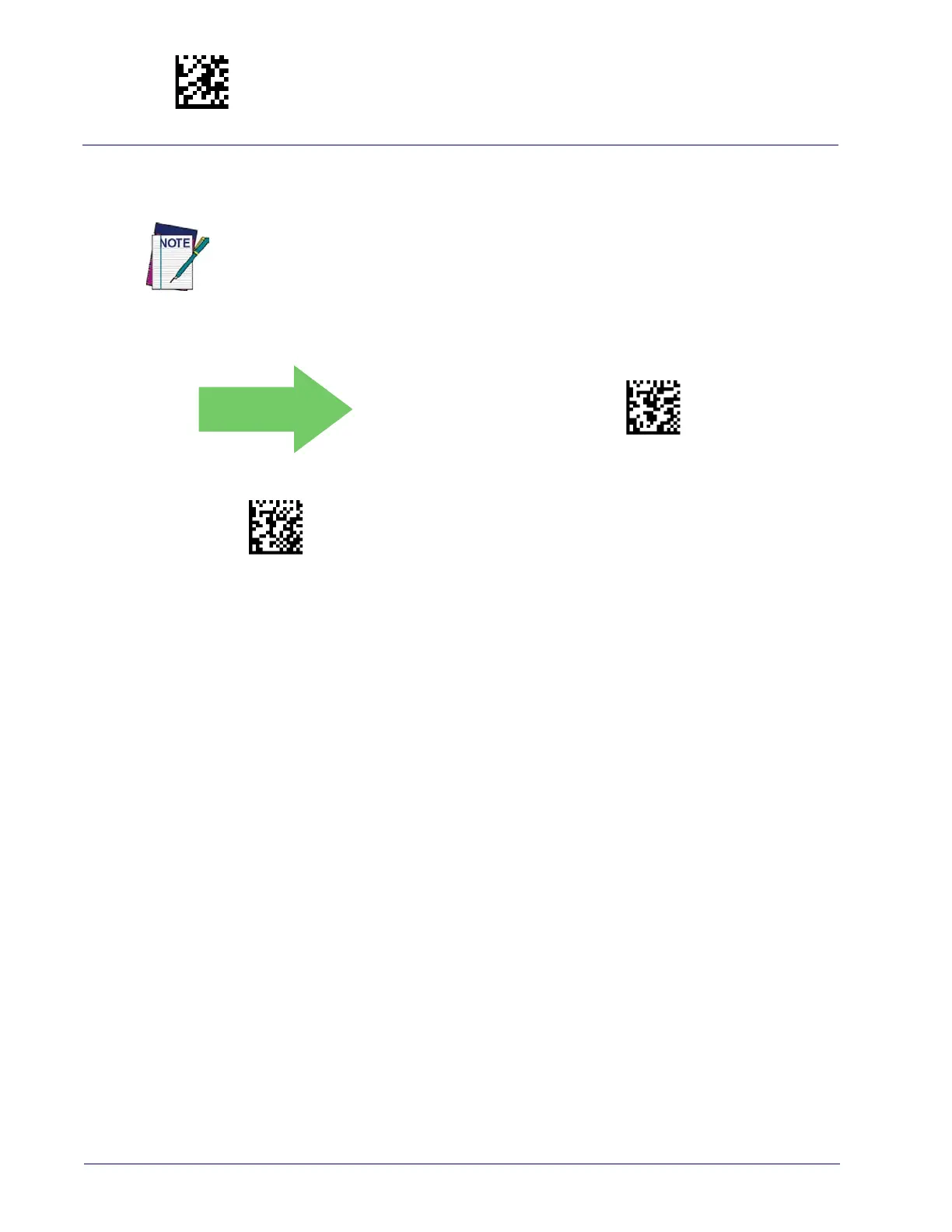

ISBT 128 Concatenation Mode

Specifies the concatenation mode between Static and Dynamic.

This option is only valid when ISBT 128 Concatenation is enabled (see "

ISBT 128 Concate-

nation" on page 149

ISBT 128 Concatenation Mode = Static

ISBT 128 Concatenation Mode = Dynamic

DEFAULT

$CI8CM00CR)

$CI8CM01CR)

Default Chapter1
- Product Reference Guide1
- Table of Contents3
Introduction11
- About this Manual11
  - Overview11
  - Manual Conventions12
- References12
- Technical Support12
- About the Reader13
- The Bc40Xx™ Radio Base14
  - Base Leds14
  - Base Button14
- BC40XX UV Counterfeit Detection15
- Battery Safety16
- Programming the Reader18
  - Configuration Methods18
Setup19
- Unpacking19
- Setting up the Reader19
- Installing the Interface Cable20
- Configuring the Base Station22
- Gryphon™ 2D System and Network Layouts29
  - Stand Alone Layouts29
- Interface Selection31
  - Setting the Interface31
- Customizing Configuration Settings35
Configuration Using Bar Codes39
- Configuration Parameters39
  - Global Interface Features41
    - Host Commands - Obey/Ignore41
    - USB Suspend Mode41
- Rs-232 Only Interface43
- RS-232/USB-Com Interfaces48
- Keyboard Settings57
- USB-OEM Interface67
  - USB-OEM Device Usage68
  - Interface Options68
- IBM 46XX Interface69
- Wand Emulation Interface73
- Data Format77
- Global Prefix/Suffix78
- Global AIM ID79
  - Set AIM ID Individually for GS1-12881
- Label ID82
  - Label ID: Pre-Loaded Sets82
  - Individually Set Label ID83
- Reading Parameters91
  - Double Read Timeout92
  - Led and Beeper Indicators94
- 1D Symbologies111
- 1D Code Selection111
Trioptic Code140
- Trioptic Code Enable/Disable140
Code 32 (Ital Pharmaceutical Code)140
- Code 32 Enable/Disable140
- Code 32 Feature Setting Exceptions141
- Code 32 Check Char Transmission141
- Code 32 Start/Stop Character Transmission141
Code 39 Cip (French Pharmaceutical)142
- Code 39 CIP Enable/Disable142
Code 39 Danish Ppt142
- Code 39 Danish PPT Enable/Disable142
Code 39 Laposte143
- Code 39 Laposte Enable/Disable143
Code 39 Pzn143
- Code 39 PZN Enable/Disable143
Code 128144
- Code 128 Enable/Disable144
- Expand Code 128 to Code 39144
- Code 128 Check Character Transmission145
- Code 128 Function Character Transmission145
- Code 128 Sub-Code Exchange Transmission146
- Code 128 Quiet Zones146
- Code 128 Length Control147
- Code 128 Set Length 1148
- Code 128 Set Length 2149
Gs1-128150
- GS1-128 Enable150
- GS1-128 2D Component150
Code Isbt 128151
- ISBT 128 Concatenation151
- ISBT 128 Force Concatenation151
- ISBT 128 Concatenation Mode152
- ISBT 128 Dynamic Concatenation Timeout153
- ISBT 128 Advanced Concatenation Options153
Interleaved 2 of 5 (I 2 of 5)154
- I 2 of 5 Enable/Disable154
- I 2 of 5 Check Character Calculation155
- I 2 of 5 Check Character Transmission156
- I 2 of 5 Length Control156
- I 2 of 5 Set Length 1157
- I 2 of 5 Set Length 2158
Interleaved 2 of 5 Cip Hr159
- Interleaved 2 of 5 CIP HR Enable/Disable159
Follett 2 of 5159
- Follett 2 of 5 Enable/Disable159
Standard 2 of 5160
- Standard 2 of 5 Enable/Disable160
- Standard 2 of 5 Check Character Calculation160
- Standard 2 of 5 Check Character Transmission161
- Standard 2 of 5 Length Control161
- Standard 2 of 5 Set Length 1162
- Standard 2 of 5 Set Length 2163
Industrial 2 of 5164
- Industrial 2 of 5 Enable/Disable164
- Industrial 2 of 5 Check Character Calculation164
- Industrial 2 of 5 Check Character Transmission165
- Industrial 2 of 5 Length Control165
- Industrial 2 of 5 Set Length 1166
- Industrial 2 of 5 Set Length 2167
Code Iata168
- IATA Enable/Disable168
  - IATA Check Character Transmission168
  - Codabar169
- 2D Global Features203
- 2D Symbologies203
- Aztec Code206
  - Aztec Code Enable / Disable206
  - Aztec Code Length Control206
    - Aztec Code Set Length 1207
    - Aztec Code Set Length 2208
- China Sensible Code209
  - China Sensible Code Enable / Disable209
  - China Sensible Code Length Control209
    - China Sensible Code Set Length 1210
    - China Sensible Code Set Length 2211
- Data Matrix212
- Maxicode215
- Pdf417218
  - PDF417 Enable / Disable218
  - PDF417 Length Control218
    - PDF417 Set Length 1219
    - PDF417 Set Length 2220
- Micro PDF417221
- QR Code224
  - QR Code Enable / Disable224
  - QR Code Length Control224
    - QR Code Set Length 1225
    - QR Code Set Length 2226
- Micro QR Code227
  - Micro QR Code Enable/Disable227
  - Micro QR Code Length Control227
    - Micro QR Code Set Length 1228
    - Micro QR Code Set Length 2229
- UCC Composite230
  - UCC Composite Enable / Disable230
  - UCC Optional Composite Timer231
- Postal Code Selection232
  - Postnet BB Control233
- Wireless Features235
  - Wireless Beeper Features236
- Bluetooth-Only Features245
  - Rf Address Stamping245
- Features for Star Models Only251
  - STAR Radio Protocol Timeout251
  - STAR Radio Transmit Mode252
- Motion Features253
References255
- RS-232 Parameters256
  - RS-232 Only256
  - RS-232/USB COM Parameters257
- Keyboard Interface264
- Symbologies267
  - Set Length267
- Data Editing268
- Reading Parameters277
  - Label Gone Timeout277
  - Good Read LED Duration278
- Scanning Features279
- RF Features287
- Motion Features290
  - Motionless Timeout290
Message Formatting291
- LED and Beeper Control292
Technical Specifications293
- Imager Labeling297
- Standard Cable Pinouts298
- LED and Beeper Indications300
- Error Codes301
- Base Station Indications (Cordless Models ONLY)302
Standard Defaults303
Sample Bar Codes315
- D Bar Codes318
Keypad319
Scancode Tables321
- Control Character Emulation321
  - Single Press and Release Keys321
- Interface Type PC at PS/2, USB-Keyboard or USB-Keyboard for APPLE322
- Interface Type PC at PS/2 Alt Mode or USB-Keyboard Alt Mode324
- Digital Interface326
- Ibm31Xx 102-Key327
- Ibm Xt328
- Microsoft Windows Codepage 1252329
  - Ascii Chart331
