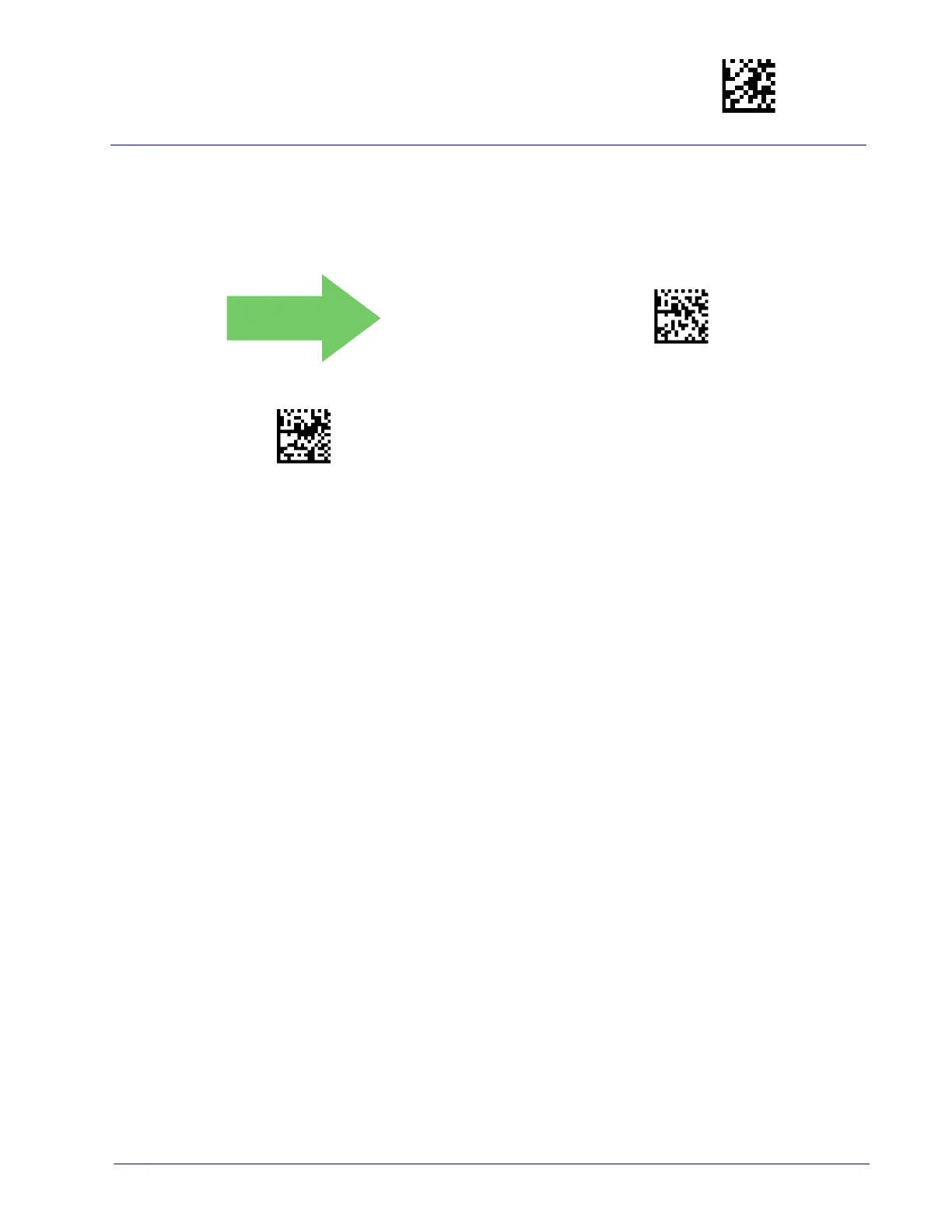

ABC Codabar Enter/Exit Programming Mode

Product Reference Guide

175

ABC Codabar Force Concatenation

Forces labels starting or ending with D to be concatenated.

ABC Codabar Force Concatenation = Disable

ABC Codabar Force Concatenation = Enable

DEFAULT

$CCBFC00(CR)

$CCBFC01(CR)

Table of Contents
