Setup Configuring the Base Station
22 Gryphon™ I GD44XX / GBT4400/GM440X

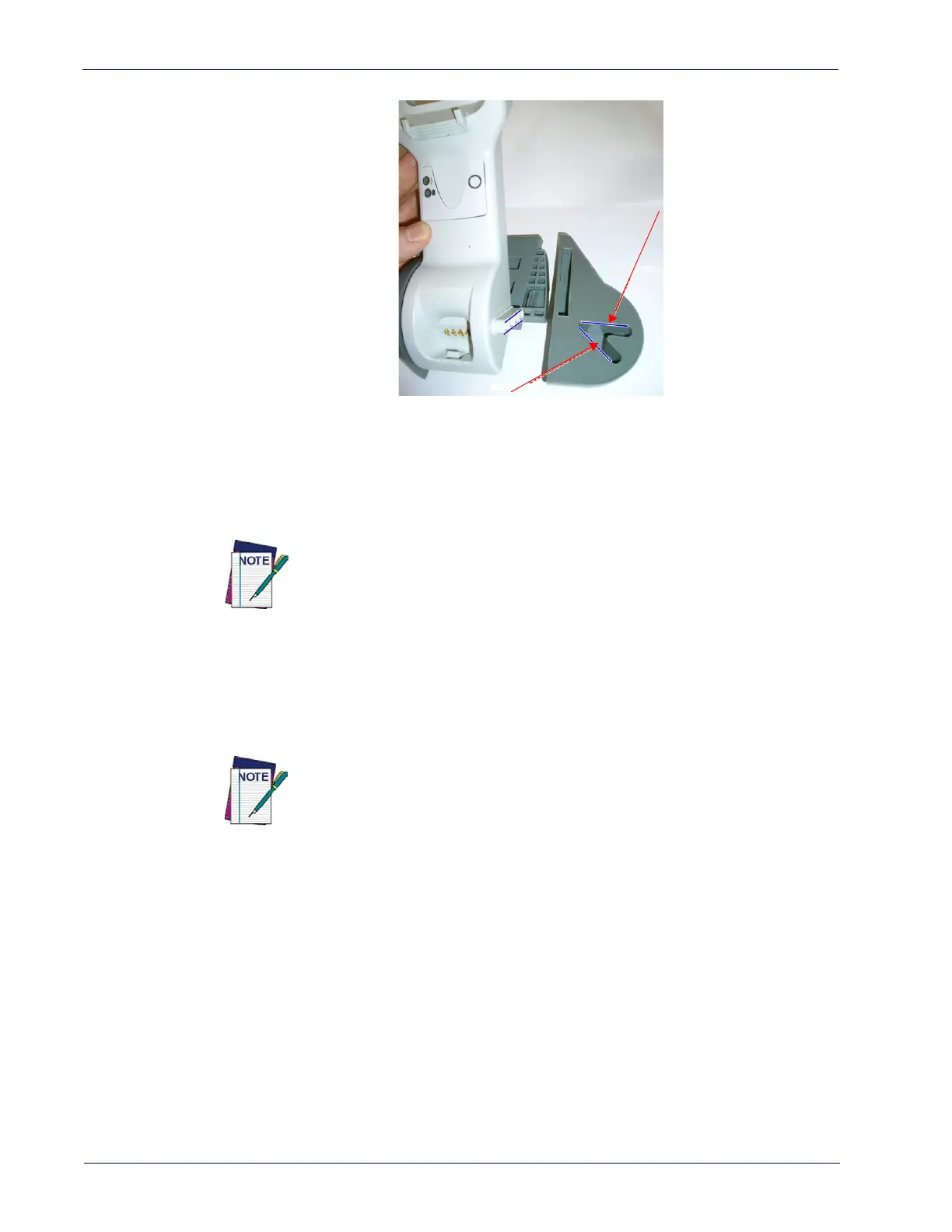

3. The stand can now be repositioned in either horizontal or standing position.
Connecting the Base Station
Figure 7 shows how to connect the Base Station to a terminal, PC or other host device. Turn off
the host before connection and consult the manual for that
equipment (if necessary) before
proceeding. Connect the interface cable before applying power to the Base Station.
Base Station Connection and Routing: Fully insert the Power Cable and Interface (I/F) Cable
connectors into their respective ports in the underside of the Base Station (see
Figure 7 ). Then
connect to an AC Adapter, and plug the AC power cord into the (wall) outlet.
Horizontal
Standing
The Gryphon GBT4400 can be set up to require a PIN code when connecting to the
host. If you are connecting to a system that uses a custom security PIN, follow the
procedure in
"Connecting the Base when Security Pin is Enabled" on page 25 . For
information on how to configure this feature, see
"BT Security Mode" starting on page
245
.
Gryphon Wireless can also be Powered by the Terminal. The external power supply
is
recommended but not necessary. When powered by the Terminal, the battery
charger is automatically set as Slow charge.
For some specific interfaces or hosts or lengths of cable
, the use of an external
power supply may be recommended for full recharging capability (see
"Technical
Specifications" on page 291
for more details).

Datalogic Gryphon I GBT4400 Specifications

General

Wavelength	650 nm
Scanner type	2D
Yaw reading angle	-40 - 40 °
Tilt reading angle	0 - 360 °
Light levels (direct sunlight)	0 - 100000 lx
Input voltage	4.5 - 14.0 V
Battery capacity	2100 mAh
Number of reads per charge	60000
Bluetooth	Yes
Dimensions (WxDxH)	71 x 100 x 181 mm
Certification	China RoHS, EU RoHS, IEC 60825 Class 2
Product color	Black
LED indicators	Charging, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	245 g
