Datalogic Gryphon I GBT4400 User Manual

Enter/Exit Programming Mode Industrial 2 of 5
164 Gryphon™ I GD44XX / GBT4400/GM440X
Industrial 2 of 5 Set Length 1
This feature specifies one of the bar code lengths for Industrial 2 of 5 Length Control. Length 1
is the minimum label length if in Variable Length Mode, or the first fixed length if in Fixed
Length Mode. Length includes the bar code’s data characters only.
The length can be set from 0
to 50 characters.
Table 11 provides some examples for setting Length 1. See page 265 if you want detailed
instructions on setting this feature.

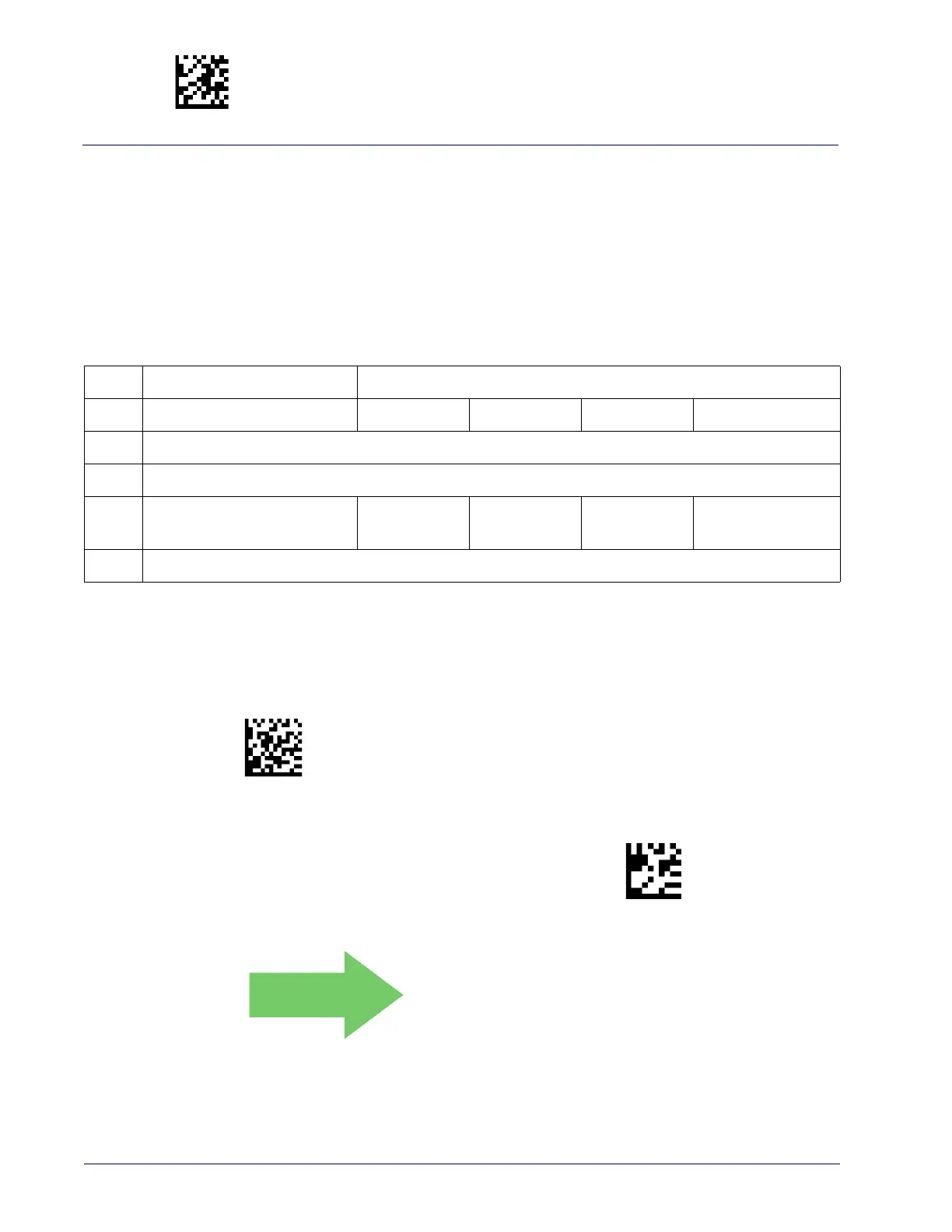

Table 11. Industrial 2 of 5 Length 1 Setting Examples
STEP ACTION EXAMPLES
1 Desired Setting 00 Characters 07 Characters 15 Characters 50 Characters
2 Scan ENTER/EXIT PROGRAMMING MODE
3 Scan SELECT INDUSTRIAL 2 OF 5 LENGTH 1 SETTING
4
Scan Two Characters From
Appendix D, Keypad
‘0’ and ‘0’ ‘0’ and ‘7’ ‘1’ and ‘5’ ‘5’ AND ‘0’
5 Scan ENTER/EXIT PROGRAMMING MODE
Select Industrial 2 of 5 Set Length 1 Setting
Make a mistake? Scan the CANCEL bar code to abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
$CU2L1
~
DEFAULT
01 = Length 1 is 1 Character

Datalogic Gryphon I GBT4400 Specifications

General

Wavelength	650 nm
Scanner type	2D
Yaw reading angle	-40 - 40 °
Tilt reading angle	0 - 360 °
Light levels (direct sunlight)	0 - 100000 lx
Input voltage	4.5 - 14.0 V
Battery capacity	2100 mAh
Number of reads per charge	60000
Bluetooth	Yes
Dimensions (WxDxH)	71 x 100 x 181 mm
Certification	China RoHS, EU RoHS, IEC 60825 Class 2
Product color	Black
LED indicators	Charging, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	245 g
