Datalogic Gryphon I GBT4400 User Manual

Customizing Configuration Settings Setup
Product Reference Guide 35
Replacing the Battery
To change the battery of your reader, complete the following instructions.
1. With a screwdriver, unscrew the battery cover screw.
2. Unscrew and remove the three screws securing the battery holder, and unplug the white
connector
.
3. Carefully lift out the gold contacts circuit, and remove the battery holder while letting the
white connector pas

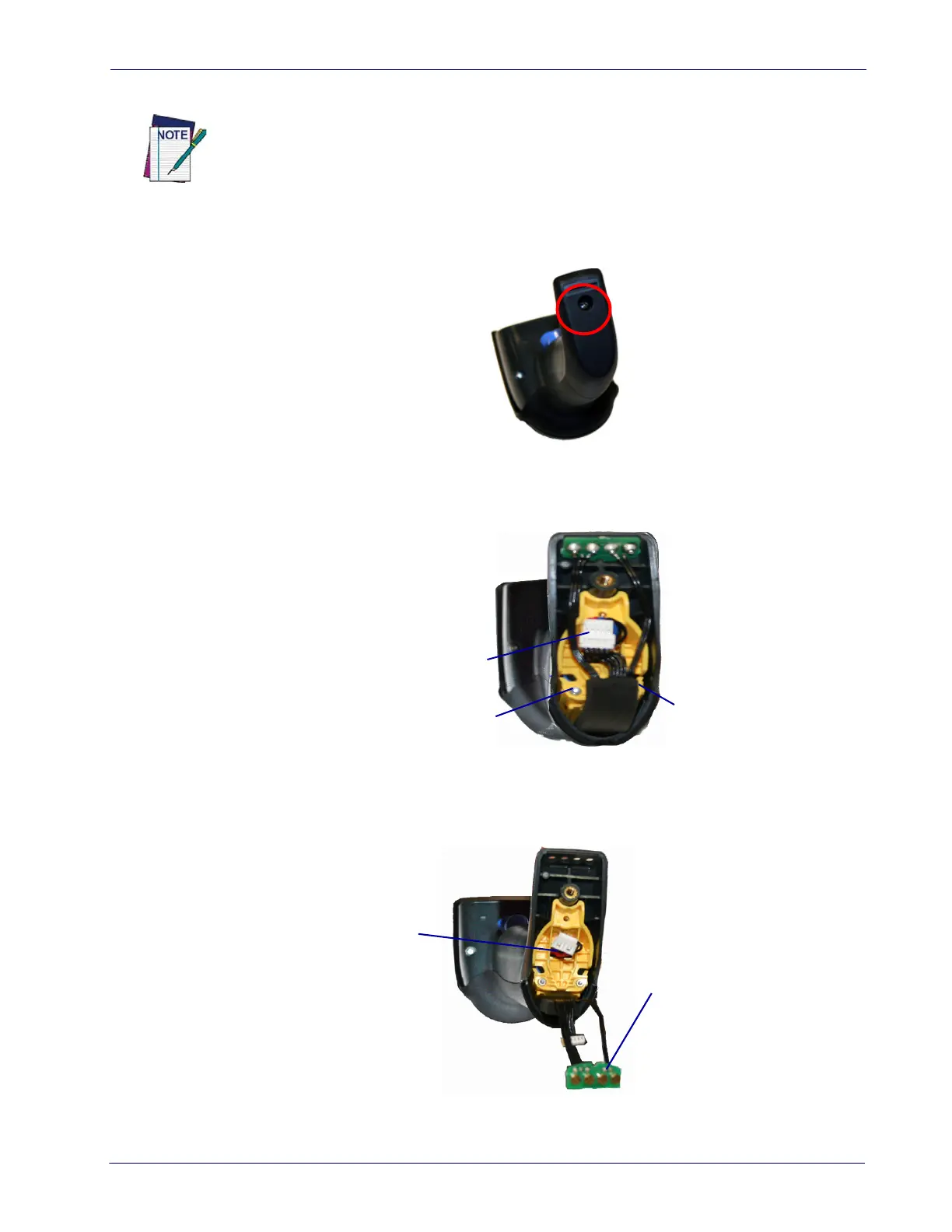

s through the hole in the battery holder (as shown in the picture
below).
Before replacing the Battery, read "Battery Safety" starting on page 14 . Datalogic recommends
annual replacement of rechargeable battery packs to ensure maximum performance.
Connector
Screw
Screw
Pass-through
hole
Gold
contacts
circuit

Datalogic Gryphon I GBT4400 Specifications

General

Wavelength	650 nm
Scanner type	2D
Yaw reading angle	-40 - 40 °
Tilt reading angle	0 - 360 °
Light levels (direct sunlight)	0 - 100000 lx
Input voltage	4.5 - 14.0 V
Battery capacity	2100 mAh
Number of reads per charge	60000
Bluetooth	Yes
Dimensions (WxDxH)	71 x 100 x 181 mm
Certification	China RoHS, EU RoHS, IEC 60825 Class 2
Product color	Black
LED indicators	Charging, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	245 g
