Datalogic Gryphon I GBT4400 User Manual

RS-232/USB-Com Interfaces Enter/Exit Programming Mode
Product Reference Guide 51
ACK NAK Timeout Value
This option specifies the amount of time the reader waits for an ACK character from the host following label
transmission. The selectable timeout range is 200 milliseconds to 15,000ms (15 seconds) in 200ms increments. A
selection of 0 disables the timeout.
See page 258 for more information on setting this feature.
ACK NAK Retry Count
This feature specifies the number of times the reader retries a label transmission due to a retry condition. The
selectable range is from 1 to 254 retries. A selection of 0 disables the count, and a selection of 255 specifies
unlimited retries. See page 259 for more information.

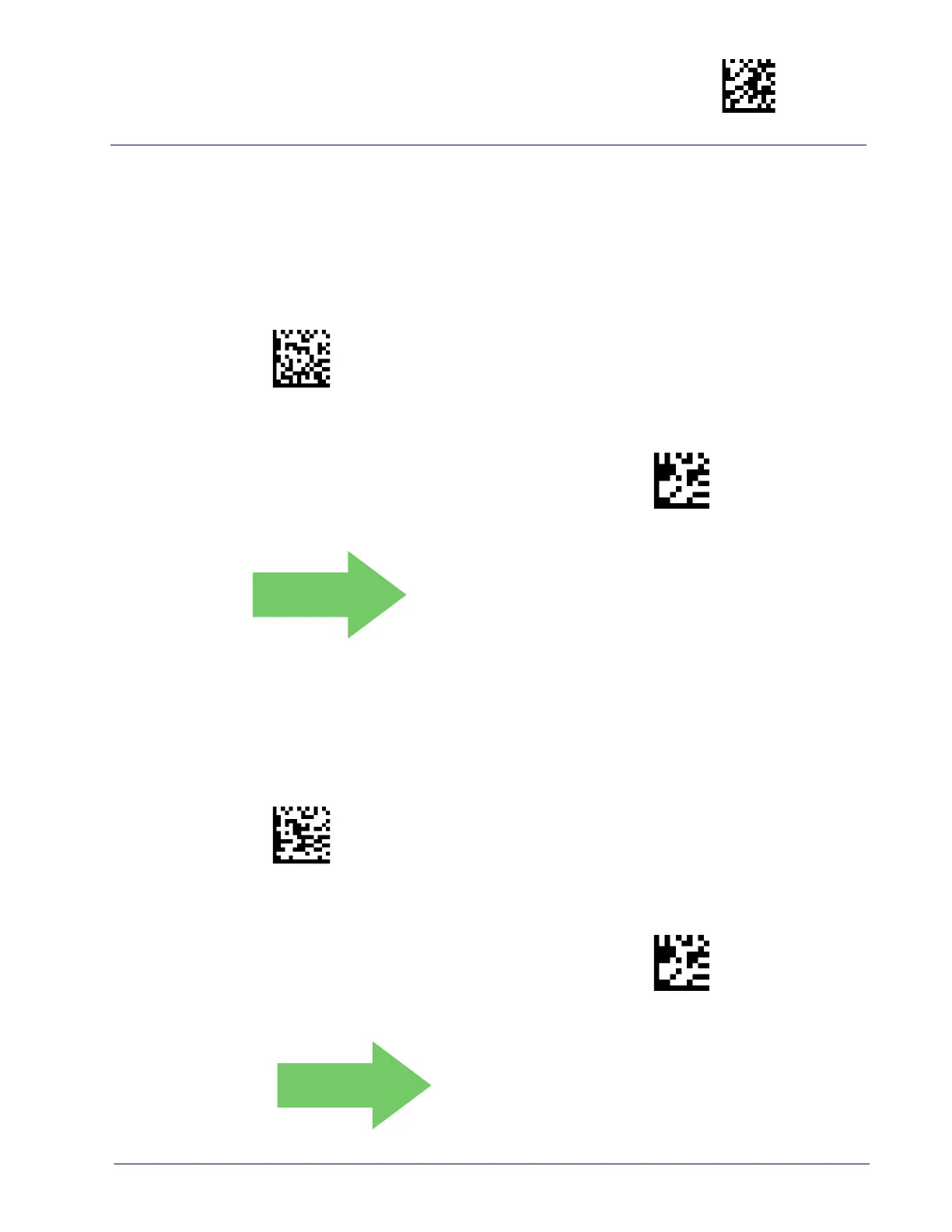

Select ACK NAK Timeout Value Setting
To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the
bar code at left followed by the digits from the
Alphanumeric characters in Appendix D, Keypad
representing your desired character(s). End by
scanning the
ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code t
o abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
Select ACK NAK Retry Count Setting
To configure this feature, scan the ENTER/EXIT
PROGRAMMING MODE bar code above, then the
bar code at left followed by the digits from the
Alphanumeric characters in Appendix D, Keypad
representing your desired character(s). End by
scanning the
ENTER/EXIT bar code again.
Make a mistake? Scan the CANCEL bar code t
o abort and
not save the entry string. You can then start again at the
beginning.
CANCEL
$CR2AT
~
DEFAULT
01 ACK NAK Timeout value is 200ms
$CR2AR
~
DEFAULT
003 = 3 Retries

Datalogic Gryphon I GBT4400 Specifications

General

Wavelength	650 nm
Scanner type	2D
Yaw reading angle	-40 - 40 °
Tilt reading angle	0 - 360 °
Light levels (direct sunlight)	0 - 100000 lx
Input voltage	4.5 - 14.0 V
Battery capacity	2100 mAh
Number of reads per charge	60000
Bluetooth	Yes
Dimensions (WxDxH)	71 x 100 x 181 mm
Certification	China RoHS, EU RoHS, IEC 60825 Class 2
Product color	Black
LED indicators	Charging, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	245 g
