Enter/Exit Programming Mode Micro PDF417
220 Gryphon™ I GD44XX / GBT4400/GM440X
Micro PDF417 Length Control
This feature specifies either variable length decoding or fixed length decoding for this
symbology.
Variable Length: For variable length decoding, a minimum and maximum length may be set.
Fixed Length: For fixed length decoding, two different lengths may be set.
Micro PDF417 Set Length 1
Specifies one of the bar code lengths for Micro PDF417 Length Control. Length 1 is the
minimum label length if in V
ariable Length Mode, or the first fixed length if in Fixed Length
Mode. Length includes the bar code’s data characters only. Characters can be set from 0001 to
0366 characters (pad with zeroes) in increments of 01. Any value greater than 0366 will be
considered to be 0366.
See page 265 for detailed instructions on setting this feature.
Micro PDF417 Length Control = Variable Length
Micro PDF417 Length Control = Fixed Length
DEFAULT
$CMILC00(CR)
$CMILC01(CR)

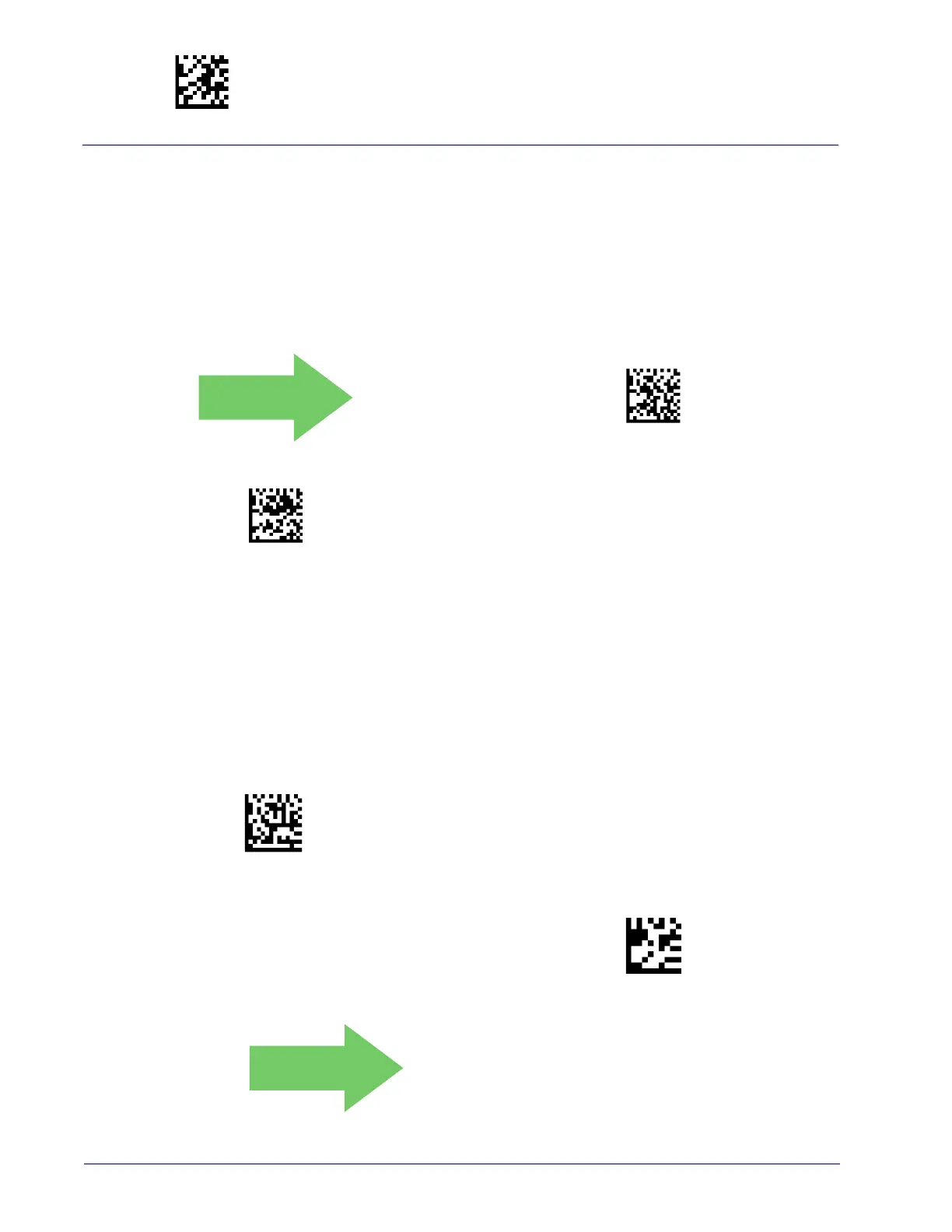

Select Micro PDF417 Length 1 Setting
To configure this feature, scan the ENTER/EXIT PRO-
GRAMMING MODE bar code above, then the bar code
a
t left followed by the digits from the Alphanumeric
characters in
Appendix D, Keypad representing your
desired character(s). End by scanning the ENTER/EXIT
ba
r code again.
Make a mistake? Scan the CANCEL bar code to abort
and not
save the entry string. You can then start again at
the beginning.
CANCEL
$CMIL1
~
DEFAULT
0001 = Length 1 is 1 Character

Datalogic Gryphon I GBT4400 Specifications

General

Wavelength	650 nm
Scanner type	2D
Yaw reading angle	-40 - 40 °
Tilt reading angle	0 - 360 °
Light levels (direct sunlight)	0 - 100000 lx
Input voltage	4.5 - 14.0 V
Battery capacity	2100 mAh
Number of reads per charge	60000
Bluetooth	Yes
Dimensions (WxDxH)	71 x 100 x 181 mm
Certification	China RoHS, EU RoHS, IEC 60825 Class 2
Product color	Black
LED indicators	Charging, Power
Storage temperature (T-T)	-20 - 70 °C
Operating temperature (T-T)	0 - 50 °C
Operating relative humidity (H-H)	0 - 95 %

Weight and Dimensions

Weight	245 g
