Deif Multi-line 2 - Single-Line Diagrams

AGC Designer’s Reference Handbook
DEIF A/S Page 23 of 168
Single-line diagrams

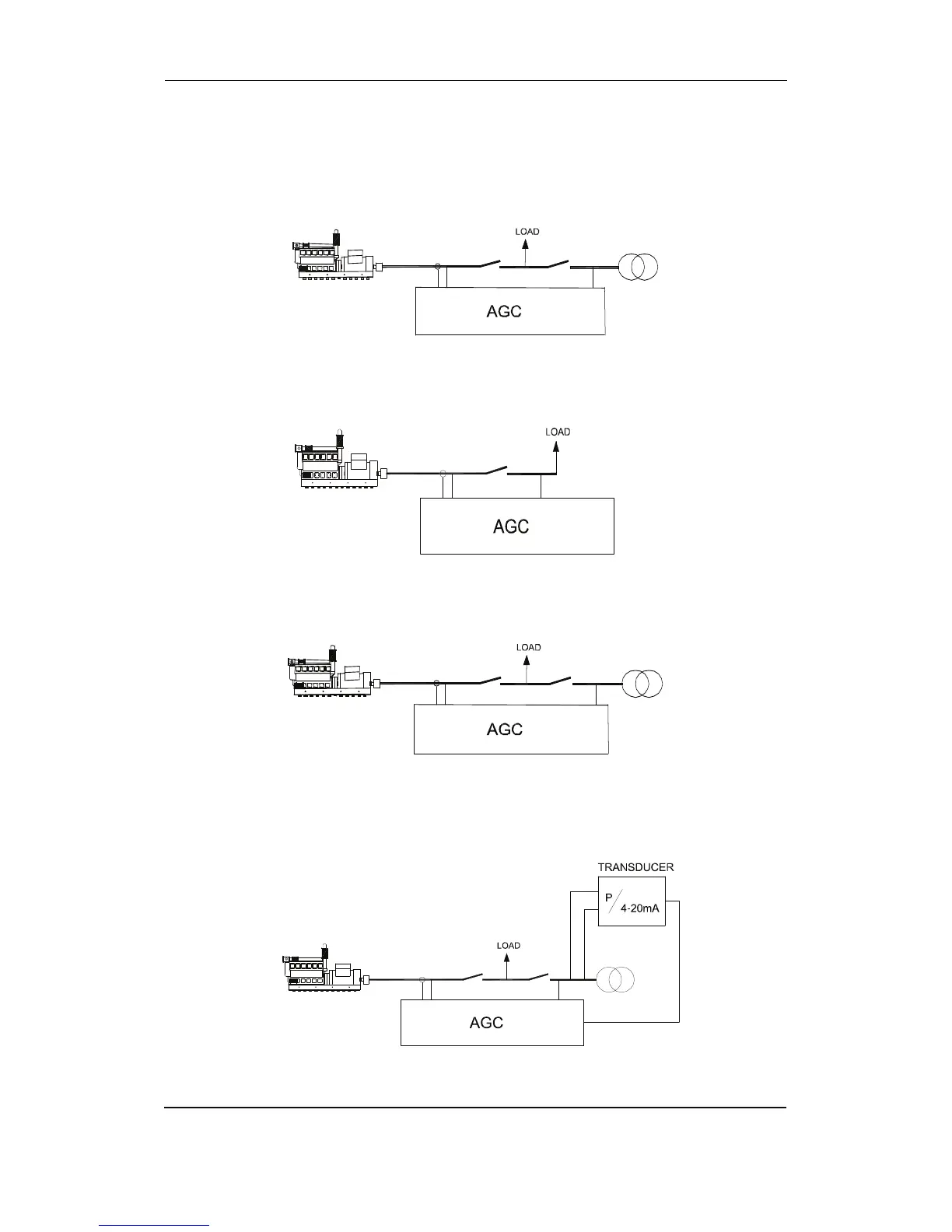

In the following, single-line diagrams illustrating the various applications are presented.
Automatic Mains Failure
Island operation
Fixed power/base load
Peak shaving
