AGC Designer’s Reference Handbook
DEIF A/S Page 55 of 168
Menu structure
The display includes two menu systems which can be used without password entry:
View menu system
This is the commonly used menu system. 15 windows are configurable and can be
entered by using the arrow push-buttons.
Setup menu system
This menu system is used for setting up the unit, and if the user needs detailed
information that is not available in the view menu system.
Changing of parameter settings is password protected.

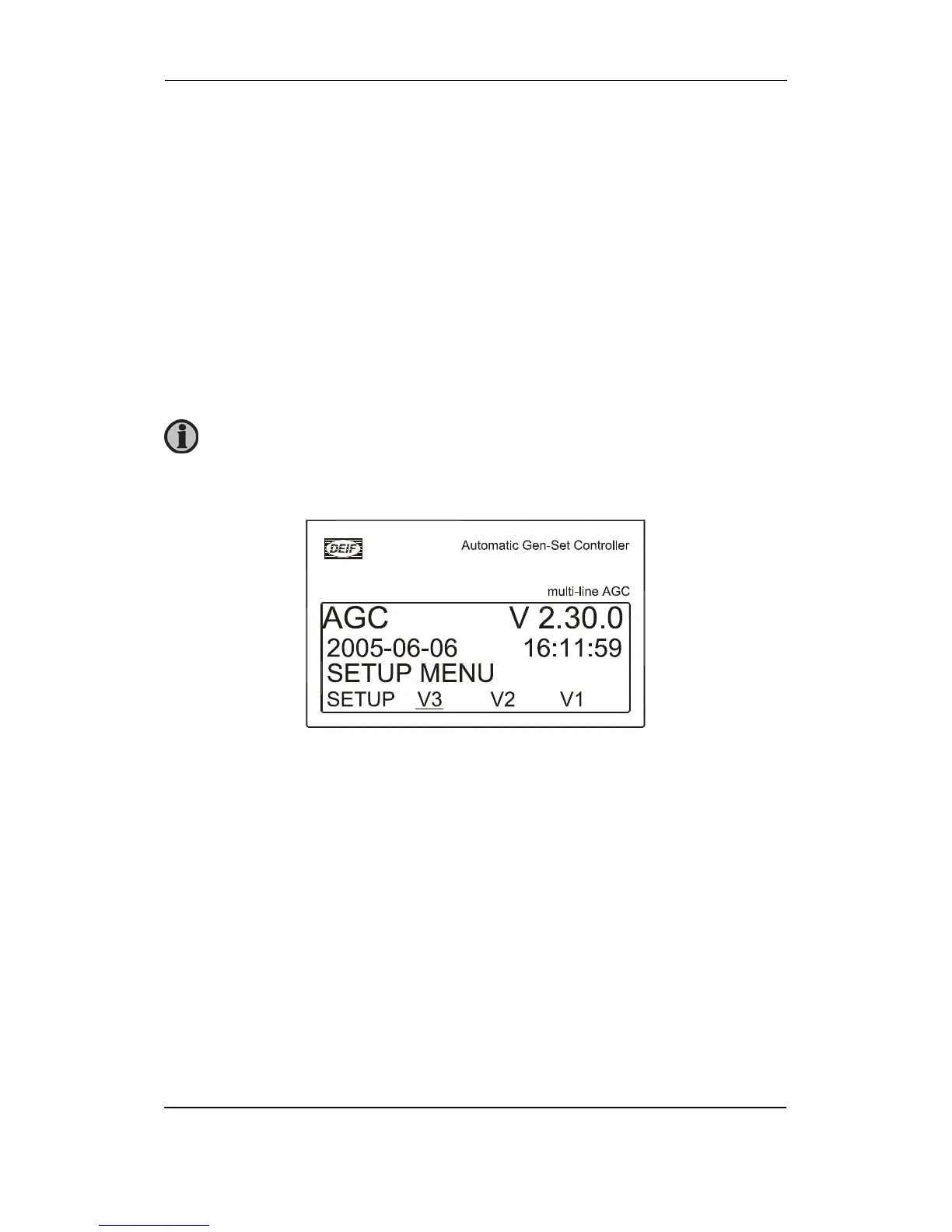

Entry window
When the unit is powered up, an entry window appears. The entry window is the turning point in
the menu structure and as such the gateway to the other menus. It can always be reached by
pressing the BACK push-button 3 times.
The event and alarm list will appear at power up, if an alarm is present.
