AGC
Designer’s
Reference
Handbook
DEIF A/S
Page 54 of 168

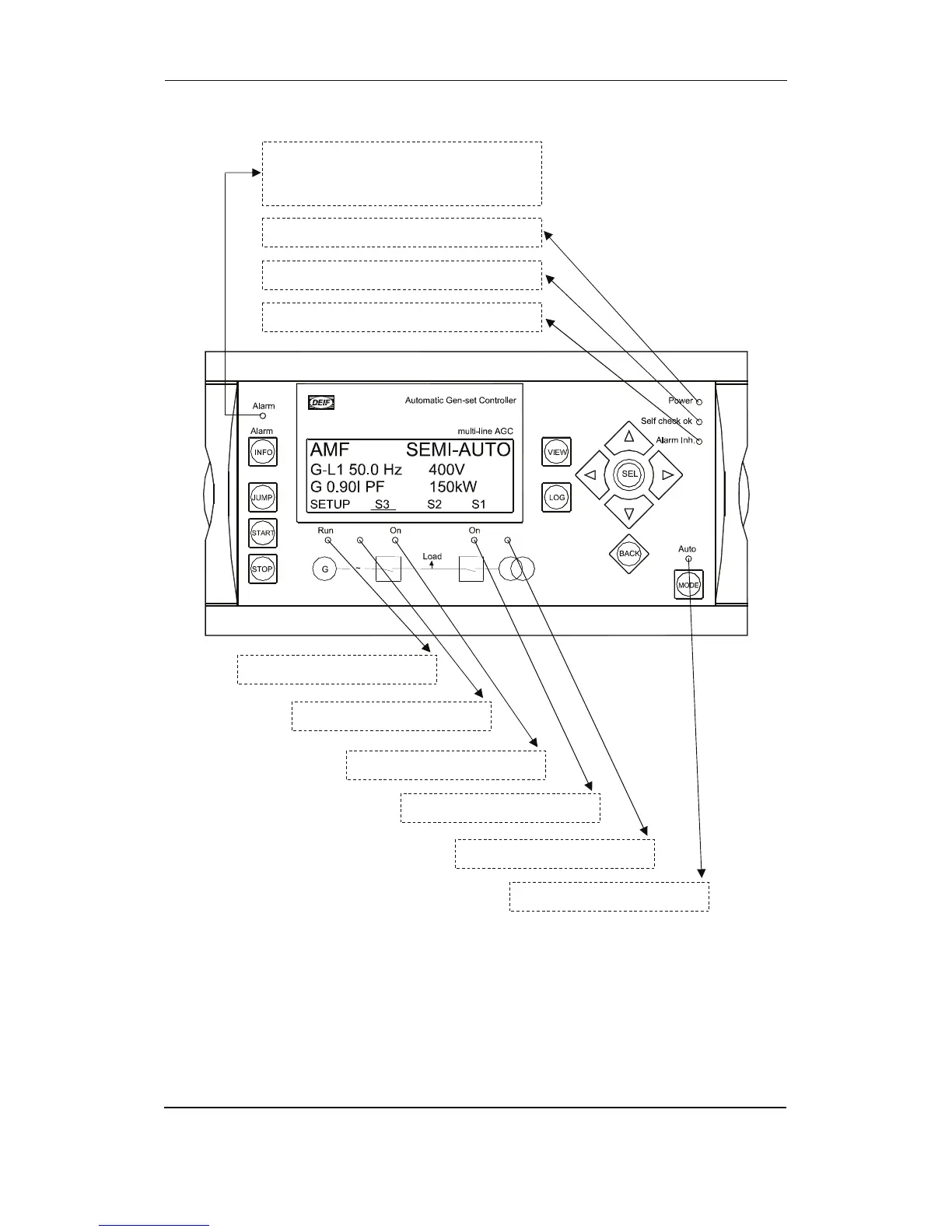

The display LEDs are indicating as
follows:
Alarm inh.: Indicates alarm inhibit active.
Power: Indicates aux
iliary supply ON.
Alarm:
Flashing: Unacknowledged alarms present.
Fixed: Acknow
ledged alarms present.
Self check OK: Indicates self check OK
.
Generator running.
Generator voltage OK.
Generator breaker ON.
Mains breaker O
N.
Mains v
oltage OK.
Auto: ON. Semi-auto: OFF.
53
55
