AGC Designer’s Reference Handbook
DEIF A/S Page 102 of 168
different relays. The breaker close function will remain on the relays dedicated for breaker
control. The synchronisation function will be moved to a configurable relay dependent on the
options configuration. Please refer to the description on page 140.
46. Custom alarm inhibit
The protections with the custom inhibit function enabled through the utility SW will be inhibited
when the input is activated.
47. Start enable
The input must be activated to be able to start the engine.
48. GB spring loaded
The input is used when there is a delay from the breaker opens and until it is ready to close.
When the breaker is ready, then the input must be activated. This is e.g. a feedback from the
breaker.
49. MB spring loaded
The input is used when there is a delay from the breaker opens and until it is ready to close.
When the breaker is ready, then the input must be activated. This is e.g. a feedback from the
breaker.

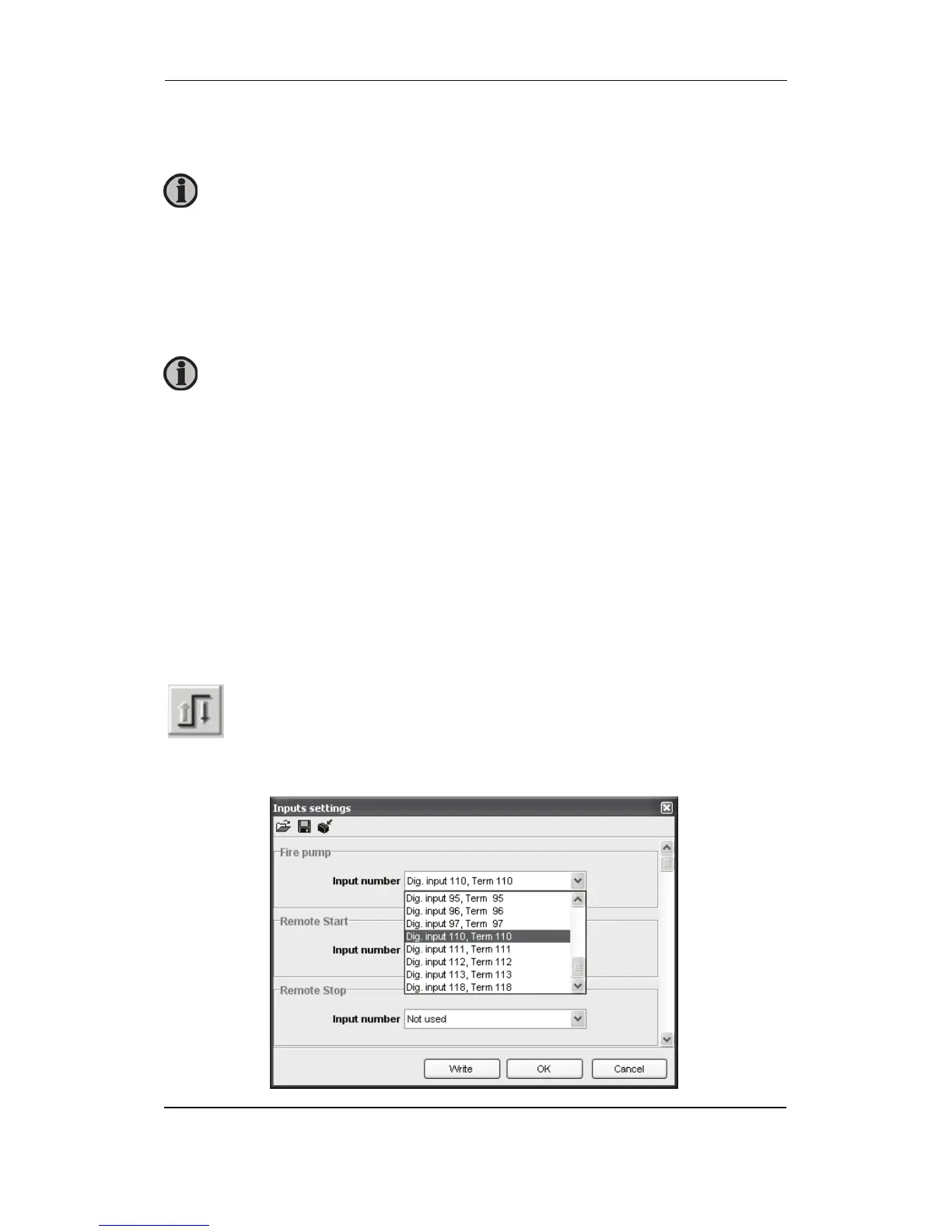

Configuration
The digital inputs are configured via the PC software.
Select the input icon in the horizontal toolbar.
The desired input number can now be selected for the individual input function via the roll-down
panel.
This function is option dependent. Option M12 or M14 is required.
When the gen-set is started, the input can be removed.
