Running signal
The running feedback must be activated when the gen-set is running in idle mode.

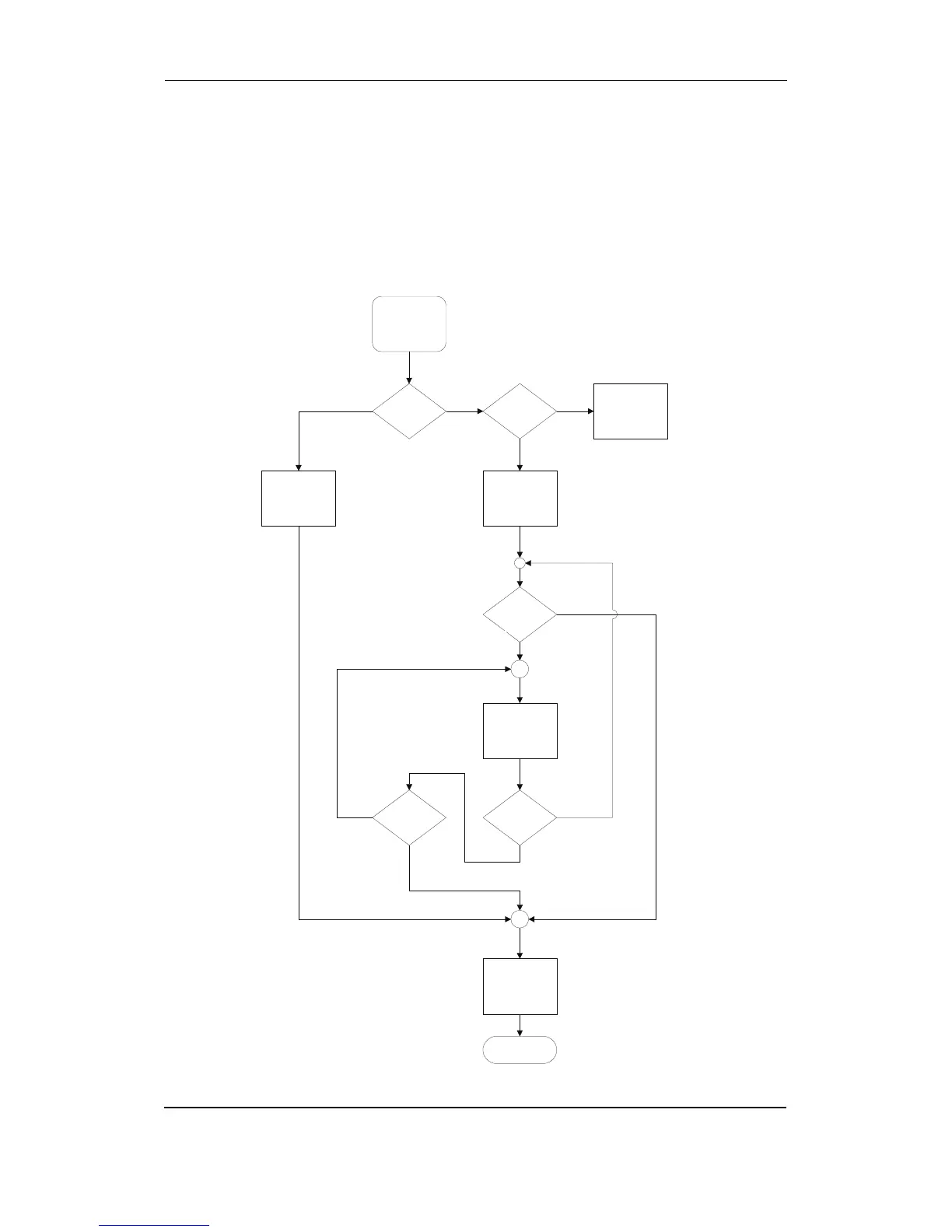

Idle speed flowcharts
The flowcharts illustrate the starting and stopping of the gen-set by use of the inputs ‘temp
control’ and ‘low speed’.
Start
Start
Auto
start/stop
ON
temp control
ON
No
No starting
No
start the genset
Yes
low speed ON
Genset running
at idle speed
idle timer ON
idle timer
expired
genset running
at f
NOM
Yes
END
start the genset
Yes
No
Yes
Yes
NoNo
