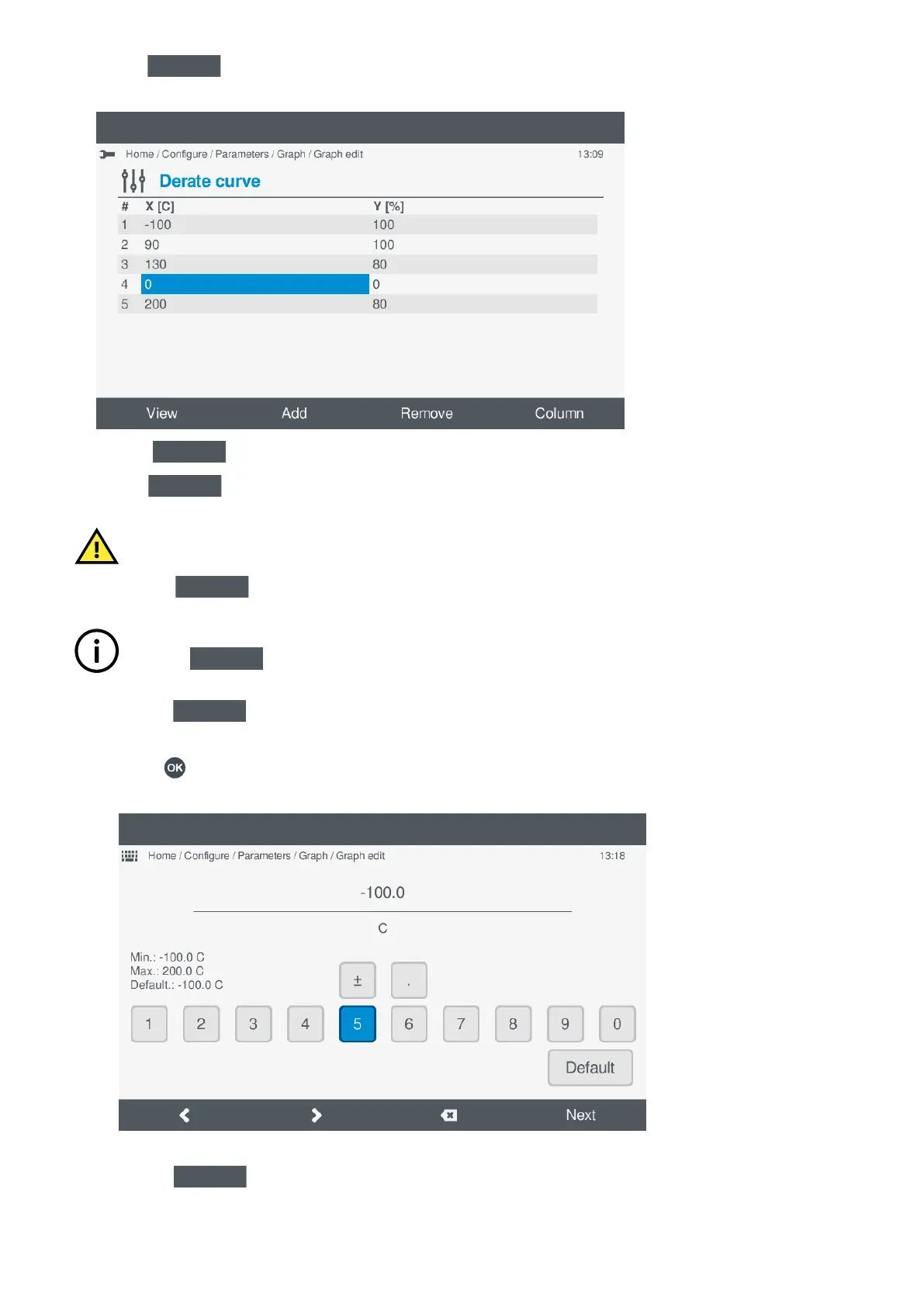

1. Select Edit
.
• The curve settings are now displayed on the screen:
•
2. Select View
to view or write the curve settings. (See section below)
3. Select Add
to add a new empty set of coordinates (X,Y).
CAUTION
A maximum of 10 sets of coordinates can be added to the curve.
4. Select Remove
to remove a highlighted set of coordinates.
INFO
Remove
is NOT shown in there are only 4 coordinate sets, as this is the minimum required for the curve
setting.
5. Select Column
to change the highlighted column between X and Y as necessary.
6. To edit a coordinate:
a. Select OK
.
• The virtual keyboard is shown on the display:
•
• Use the virtual keyboard to edit the setting as necessary.
b. Select Next
to return to the curve settings.
OPERATOR'S MANUAL 4189341099G UK Page 45 of 130
