◦ To confirm the setting, select Next
.
c. Once you have made all the required changes to the alarm settings, select Write .
◦ This saves the alarm setting to the controller. This does not save any other settings.
◦ The list of available alarms is shown again on the display.

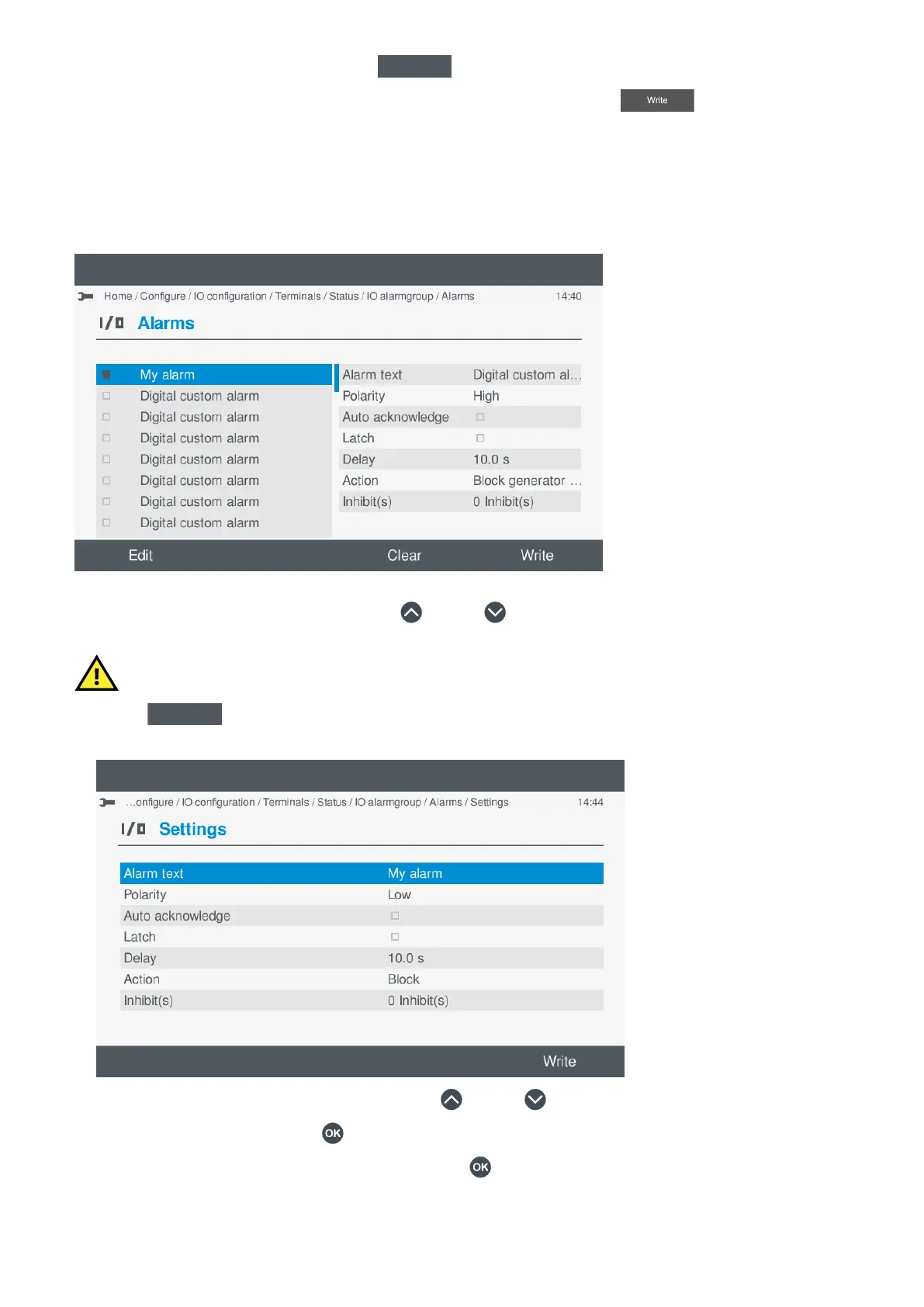

Select an existing digital custom alarm
You can use or edit an existing Digital custom alarm.
•
1. Highlight the required custom alarm, by pressing Up or Down .
CAUTION
Editing an existing custom alarm changes the alarm settings for ALL input terminals using the same alarm.
2. Select Edit
.
• Details of the alarm settings are shown on the display for you to configure.
•
a. Highlight the required alarm setting, by pressing Up or Down .
b. To change the setting, press OK .
◦ If the setting is Enable or Not enabled, pressing OK
toggles either Enable or Not enabled.
◦ Enabled settings are marked with a solid box.
OPERATOR'S MANUAL 4189341099G UK Page 56 of 130
