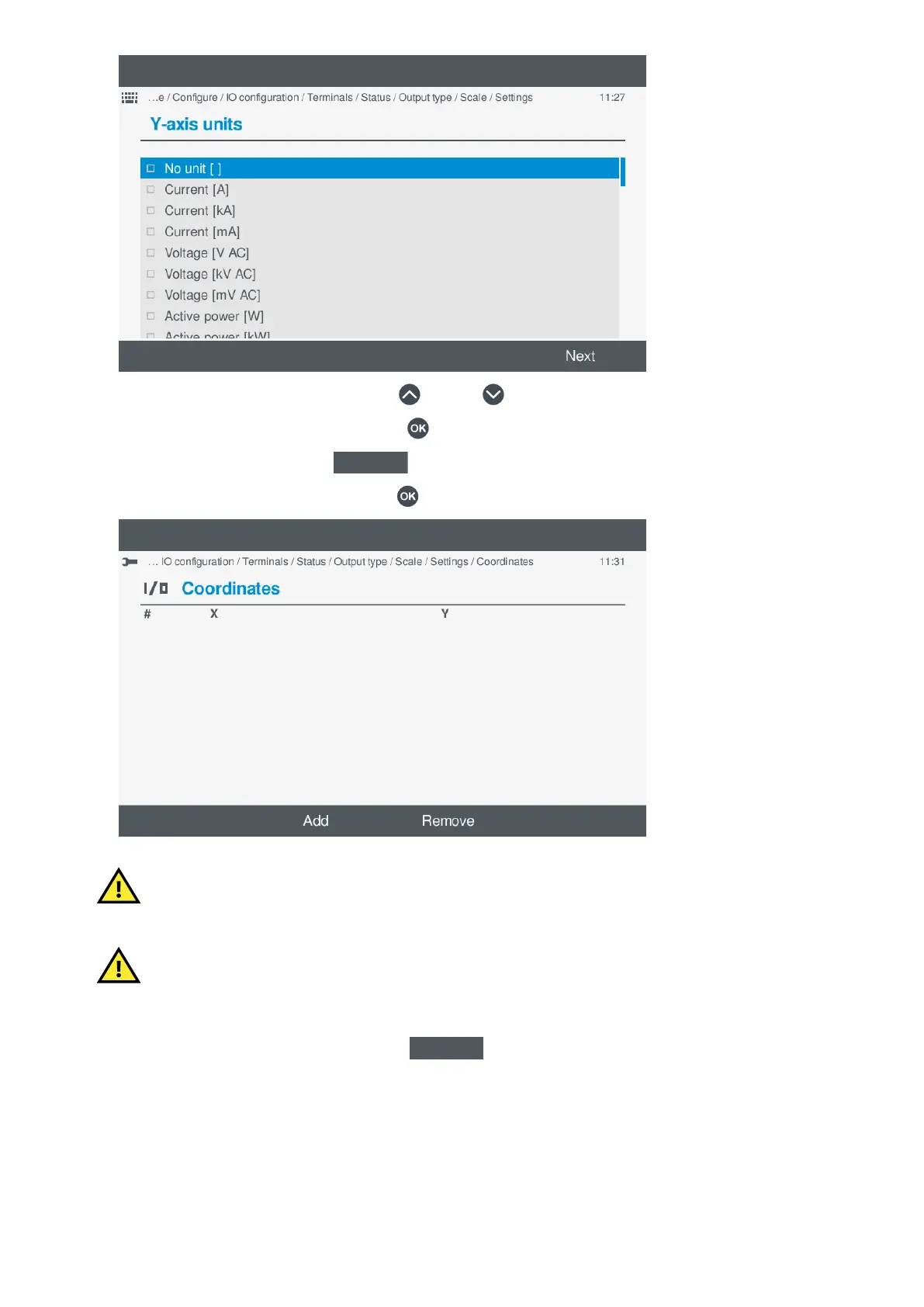

◦ Highlight the option required, by pressing Up or Down .
◦ Select or un-select the option, by pressing OK .
◦ To confirm the setting, select Next
Next
.
• If the setting is the x,y coordinates, pressing OK
displays the coordinate options.
◦
CAUTION
Configure the y-axis units, y-axis minimum, and y-axis maximum BEFORE attempting to configure the x,y
coordinates.
CAUTION
A valid curve must contain a minimum of 2 sets of coordinates.
a. Add coordinates:
a. To add a set of x,y coordinates, select Add
Add
.
◦ The Virtual keyboard is shown on the display:
OPERATOR'S MANUAL 4189341099G UK Page 73 of 130
