CAUTION
Configure the x-axis units, x-axis minimum, and x-axis maximum BEFORE attempting to configure the x,y
coordinates.
CAUTION
A valid curve must contain a minimum of 2 sets of coordinates.
a. Add coordinates:

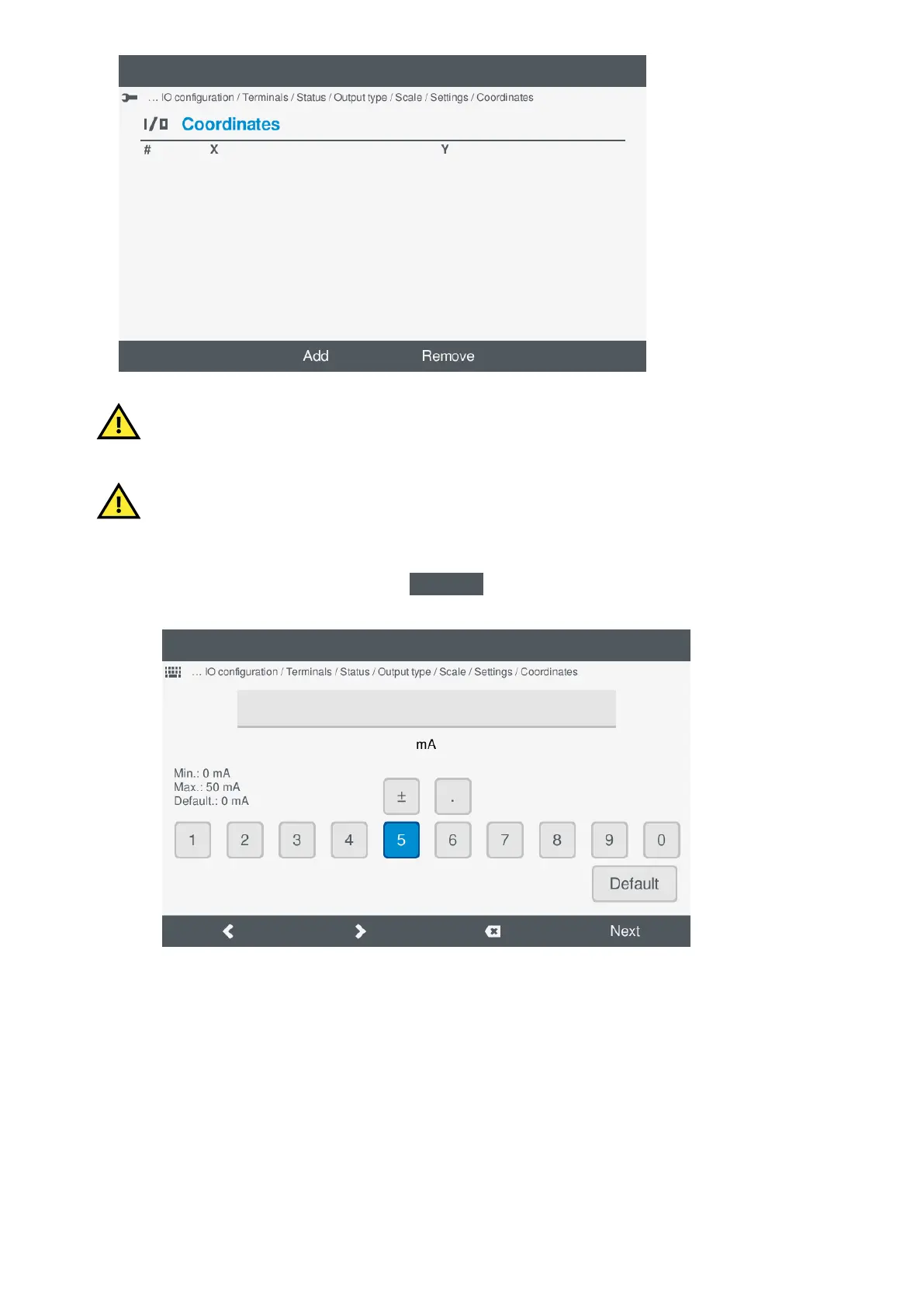

a. To add a set of x,y coordinates, select Add
Add
.
◦ The Virtual keyboard is shown on the display:
◦
b. Enter the x-axis coordinate using the Virtual keyboard:
◦ This must be between the minimum and maximum values shown:
