Chapter 1 Introduction|
Revision August 2008, 03VE, SW V2.04 1-11

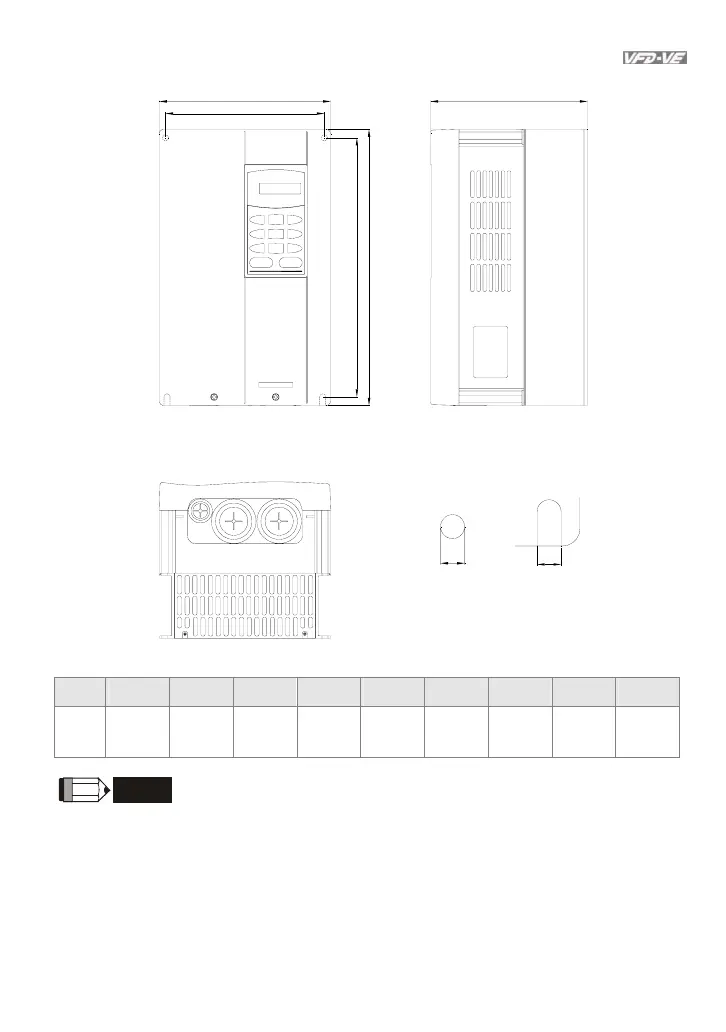

Frame C
H1
H
W
W1
D
S1
S2
Unit: mm[inch]
Frame W W1 H H1 D - - S1 S2
C
200.0
[7.88]
185.6
[7.31]
323.0
[12.73]
244.3
[9.63]
160.2
[6.31]
- -
7.0
[0.28]
7.0
[0.28]
NOTE
Frame C: VFD055V23A/43A-2, VFD075V23A/43A-2, VFD110V43B-2
