Delta Electronics AC Motor Drive VFD-VE Series User Manual

Chapter 1 Introduction|
1-12 Revision August 2008, 03VE, SW V2.04

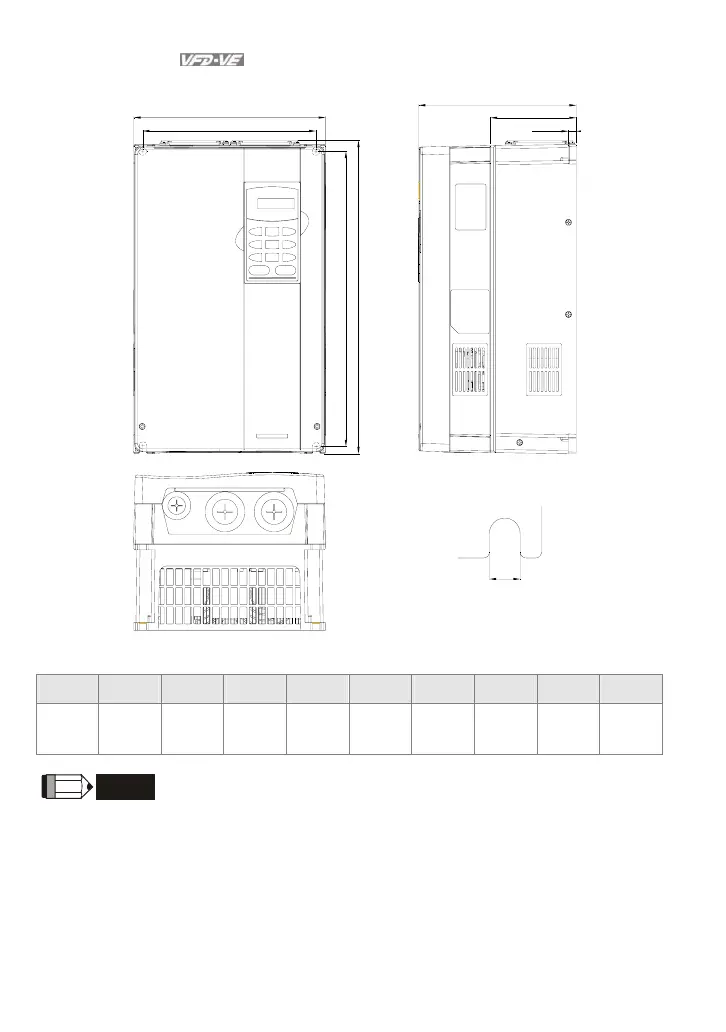

Frame D
S1
W
W1
H
H1
D
D1
D2
Unit: mm[inch]
Frame W W1 H H1 D D1 D2 S1 -
D
250.0
[9.85]
226.0
[8.90]
408.2
[16.07]
384.0
[15.13]
205.4
[8.08]
110.0
[4.33]
10.0
[0.39]
10.0
[0.39]
-
NOTE
Frame D: VFD110V23A/43A-2, VFD150V23A/43A-2, VFD185V23A/43A-2, VFD220V23A/43A-2
