Diamond DA20-C1 - Climb Performance; Take off

To Next Page

To Previous Page

DA20-C1 Flight Manual

Performance

Doc # DA202-C1 April 16, 2009 Page 5 - 9

5.3.7. Climb Performance / Take off

Best Rate-of-Climb Speed with Wing Flaps T/O 68 KIAS

Revision 24 DOT Approved

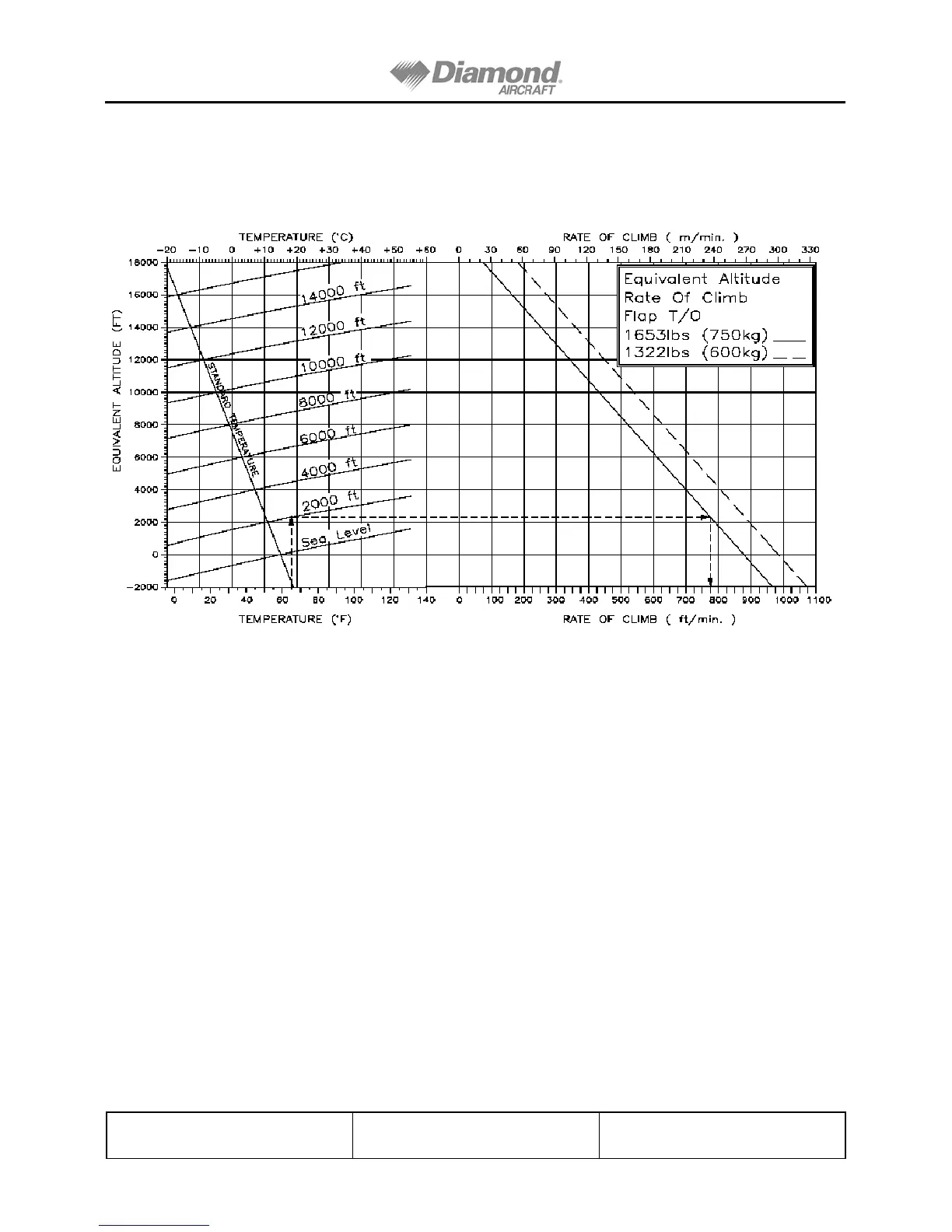

Figure 5.7. Climb Performance / Take off

Example: Pressure Altitude: 2000 ft

OAT: 65° F

Weight : 1653 lbs

Result: Climb performance: 775 ft/min
