DA20-C1 Flight Manual
Supplement 7
Doc # DA202-C1 April 16, 2009 Page S7 - 5
7. DESCRIPTION OF THE AIRPLANE AND ITS SYSTEMS
The auxiliary fuel tank is located in the fuselage, aft of the passenger compartment and
underneath the baggage compartment floor, on the right hand side of the main fuel tank.
Fuel is gravity fed from the auxiliary tank to the electric transfer pump, which is used to pump
fuel from the auxiliary fuel tank to the main fuel tank. From the pump, fuel flows through a
check valve and into the top of the main fuel tank. The check valve is installed between the
auxiliary tank and the main tank to prevent siphoning of fuel from the main tank back into the
auxiliary tank. The only ports in the auxiliary fuel system are the auxiliary tank outlet and drain.
All auxiliary fuel system components are grounded to each other and the external ground stud,
located under the trailing edge of the left wing.

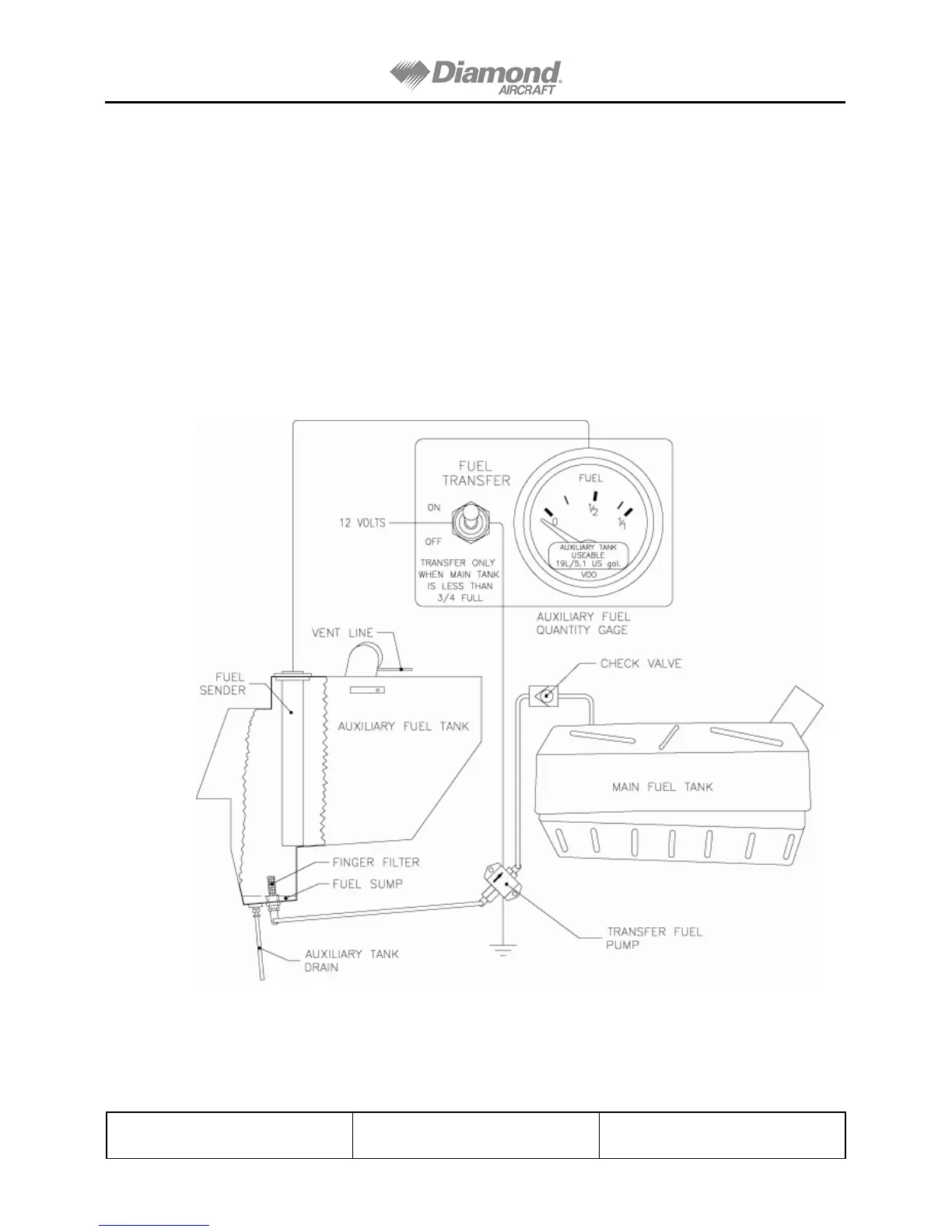

Figure 2. Fuel System Schematic
Revision 24 DOT Approved
