DA20-C1 Flight Manual
Description
Doc # DA202-C1 April 16, 2009 Page 7 - 7

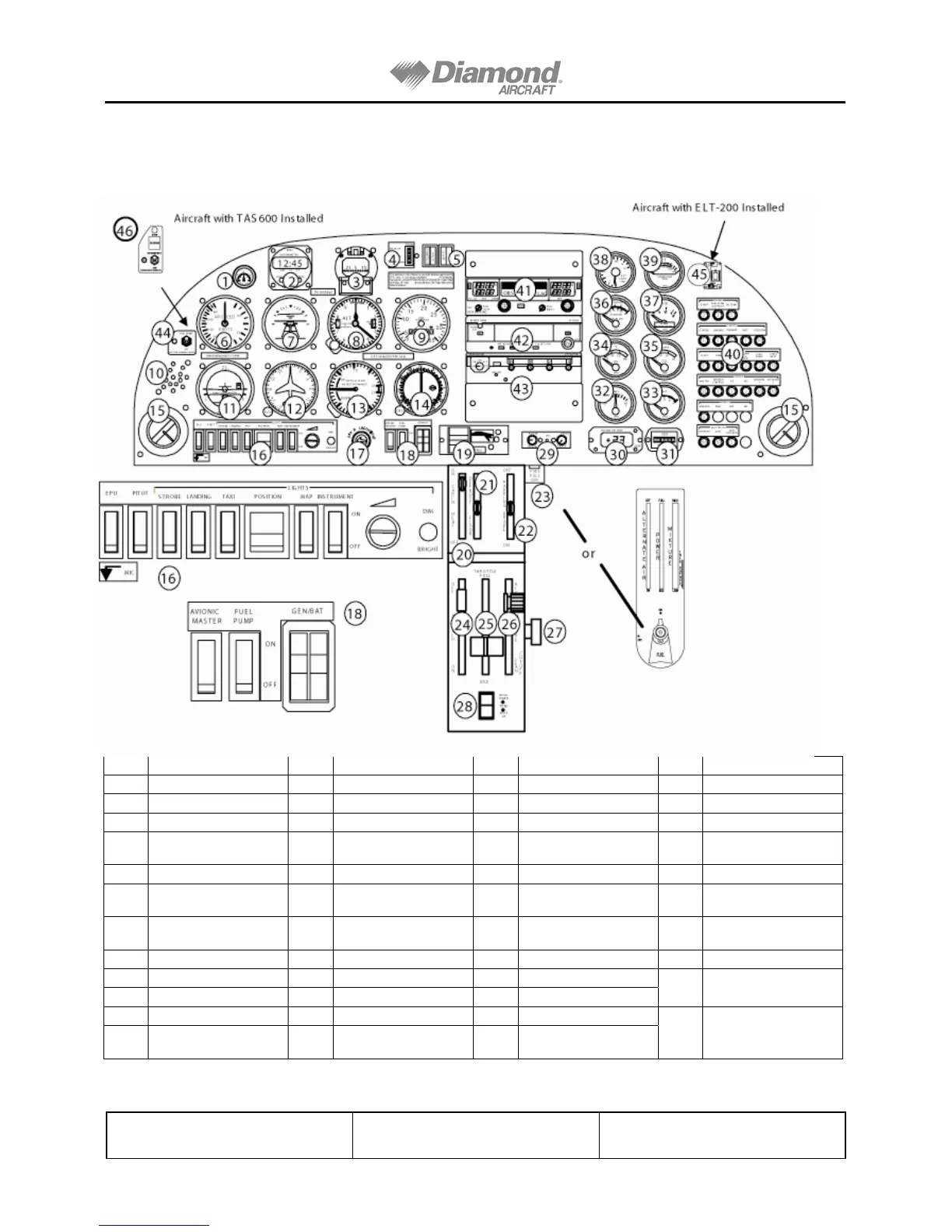

7.4. INSTRUMENT PANEL (See Figure 7.2)
Item Description Item Description Item Description Item Description
1. Vacuum Gauge 13. Vertical Speed Ind. 25. Throttle Lever 37. Fuel Quantity Ind.
2. Clock (optional) 14. CDI 26. Fuel Mixture Lever 38. EGT Indicator
3. Magnetic Compass 15. Air Vent 27. Lever Friction Knob 39. CHT Indicator
4. Trim Position
Display
16. Switch Panel 28. Trim Switch 40. Circuit Breakers
5. Annunciator Lights 17. Ignition/Start Sw. 29. Intercom 41. Nav/Comm
6. Airspeed Indicator 18. Master Sw. Panel 30. Outside Air Temp.
Ind.
42. GPS
7. Artificial Horizon
Ind,
19. Flap Control 31. Hour Meter 43. Transponder
8. Altimeter 20. Cabin Heat Control 32. Ammeter 44 Fuel Prime Switch
9. Tachometer 21. Defrost/Floor Lever 33. Voltmeter
10. Stall Warning Horn 22. Parking Brake Lever 34. Oil Temp. Ind.
45. ELT Remote Switch
(Artex ELT-200)
11. Turn Coordinator 23. Fuel Shutoff Handle 35. Oil Pressure Ind.
12. Directional Gyro 24. Alternate Air Lever 36. Fuel Pressure Ind.
46. Traffic Advisory
System
Switch (TAS600)
Figure 7.2. Instrument Panel Diagram
Revision 24
