Diamond DA20-C1 - Climb Performance; Take off

To Next Page

To Previous Page

DA20-C1 Flight Manual

Supplement 4

Doc # DA202-C1 April 16, 2009 Page S4 - 10

SENSENICH PROPELLER W69EK7-63, W69EK7-63G and W69EK-63

Best Rate-of-Climb Speed with Wing Flaps T/O 68 KIAS

Example: Pressure Altitude: 2000 ft

OAT: 65º F

Weight : 1764 lbs

Result: Climb performance: 744 ft/min

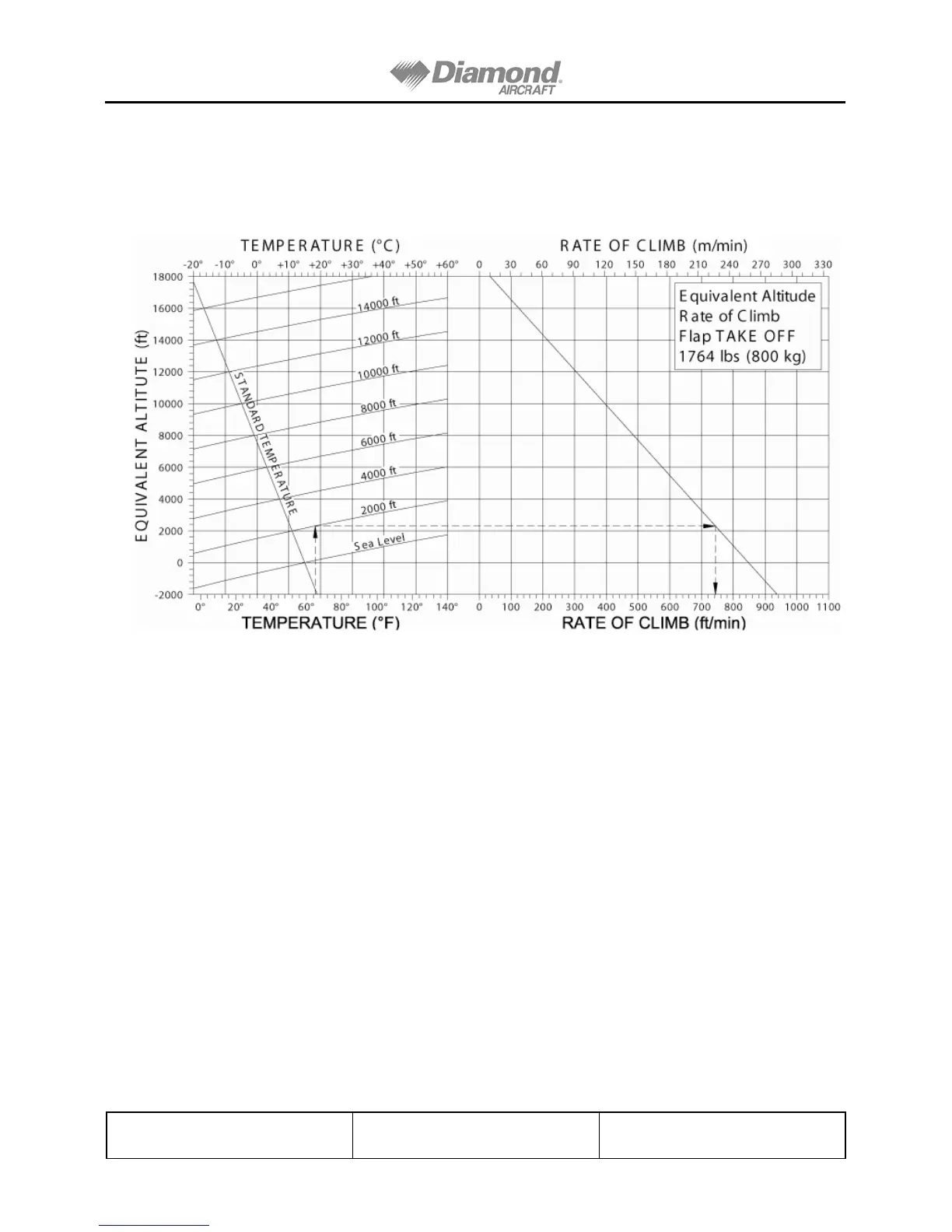

Figure 5.7. Climb Performance / Take off

Revision 24 DOT Approved
